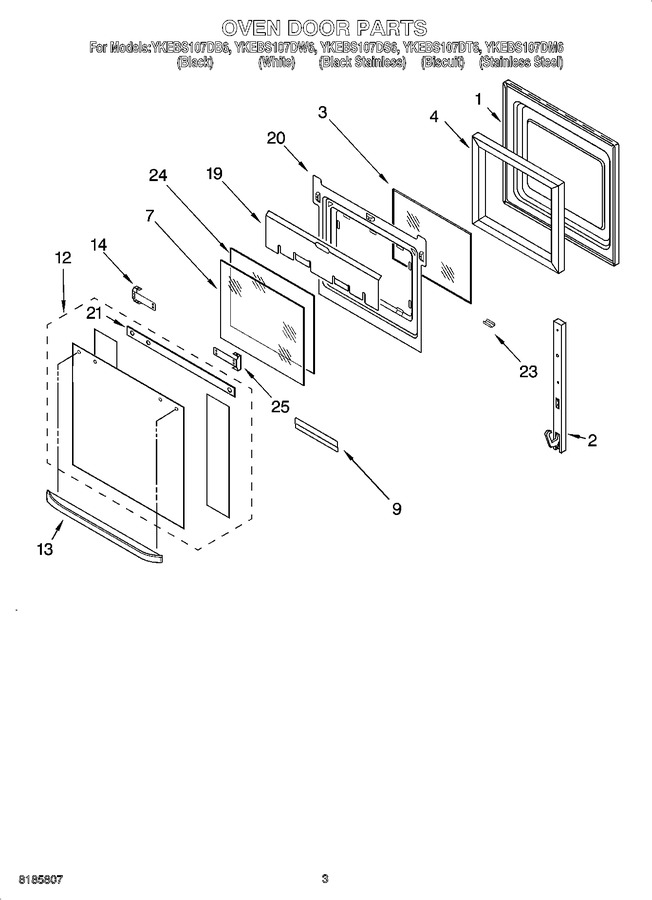

02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451719		Door Liner		Appelez-nous	-
2	WP4455525		Hinge, Door (black Stainless, Black, White & Biscuit Models)   (Replaces: 4455525)			Immediately	$ 88.29
2	WP4455526		Hinge, Door (stainless Steel Model)   (Replaces: 4455526)			Immediately	$ 90.34
2	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 189.77
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 167.89
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	4451668		Retainer, Glass		Appelez-nous	-
12	W10401225		Door Glass, Assy (stainless Steel Model)   (Replaces: 4452316)			Immediately	$ 321.60
12	4452074		Door Glass, Assy (black Model)		Appelez-nous	-
12	4452075		Door Glass, Assy (white Model)		Appelez-nous	-
12	4452477		Door Glass, Assy (black-stainless)		Appelez-nous	-
12	4452147		Door Glass, Assy (biscuit Model)		Appelez-nous	-
13	4448414		Door Handle (black Model)		Appelez-nous	-
13	4452088		Door Handle (stainless Steel Model)		Appelez-nous	-
13	4452129		Door Handle (biscuit Model)		Appelez-nous	-
13	4448415		Door Handle (white Model)		Appelez-nous	-
14	W10276642		Screw   (Replaces: 4451040)				$ 6.41
14	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
14	4450813		Bracket, Handle				$ 24.20
19	4450362		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	4451671		Retainer, Glass		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
21	4451674		Seal, Door		Appelez-nous	-
21	4452326		Stainless Steel Model		Appelez-nous	-
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-
23	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
23	4451432		Retainer, Clip (stainless Steel Model)		Appelez-nous	-
23	4452119		Retainer, Clip (biscuit Model)		Appelez-nous	-
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-
24	4455257		Glass, Inner				$ 85.45
25	4452488		Bracket, Handle Stainlees Steel (left Hand)		Appelez-nous	-
25	4452487		Bracket, Handle Stainlees Steel (right Hand)		Appelez-nous	-
