SELECT A DIAGRAM
01 - Oven Parts
02 - Oven Door Parts
03 - Internal Oven Parts

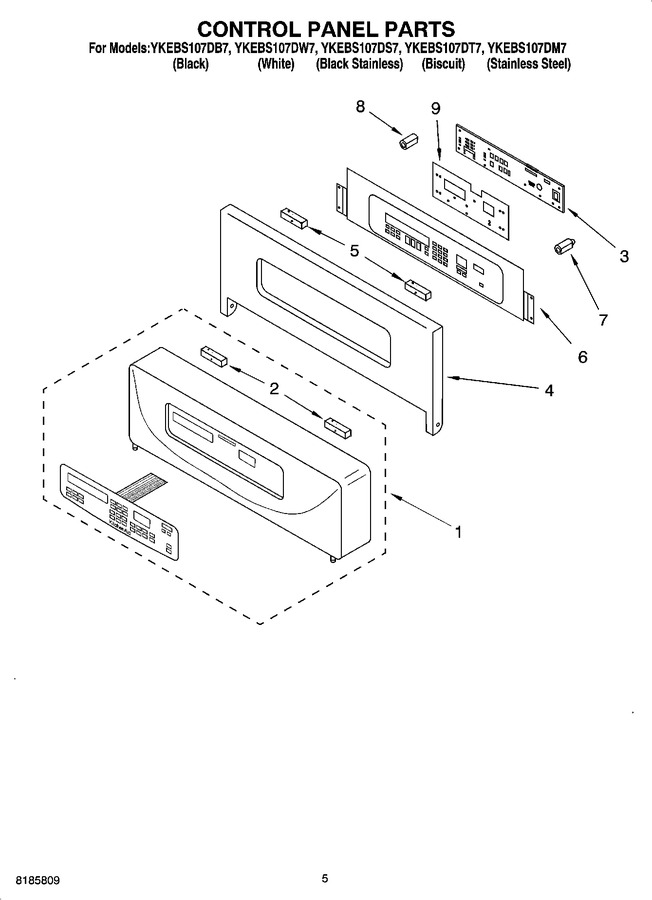

04 - Control Panel Parts
05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8300395 | Control Panel Assy W/membrane Switch (black) |
|
- | |||||
| 1 | 8300392 | Control Panel Assy. W/membrane Switch (white Model) |
|
- | |||||
| 1 | 8300388 | Control Panel Assy W/membrane Switch (biscuit) |
|
- | |||||
| 1 | WP3400832 | Screw (Replaces: 8281179) |
|
Immediately | $ 8.18 | ||||
| 2 | 4451034 | Gasket, Control Panel |
|
- | |||||
| 3 | 4452895 | Microcomputer |
|
- | |||||
| 3 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 3 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 8.18 | ||||
| 4 | 4451791 | Panel, Control |
|
- | |||||
| 5 | 4452260 | Spacer, Foam |
|
- | |||||
| 6 | 4452363 | Membrane Switch |
|
- | |||||
| 7 | 4452248 | Insulator, Board |
|
- | |||||
| 8 | 4452249 | Insulator, Board Support |
|
- | |||||
| 9 | 4452324 | Insulator, Dialectric |
|
- |
