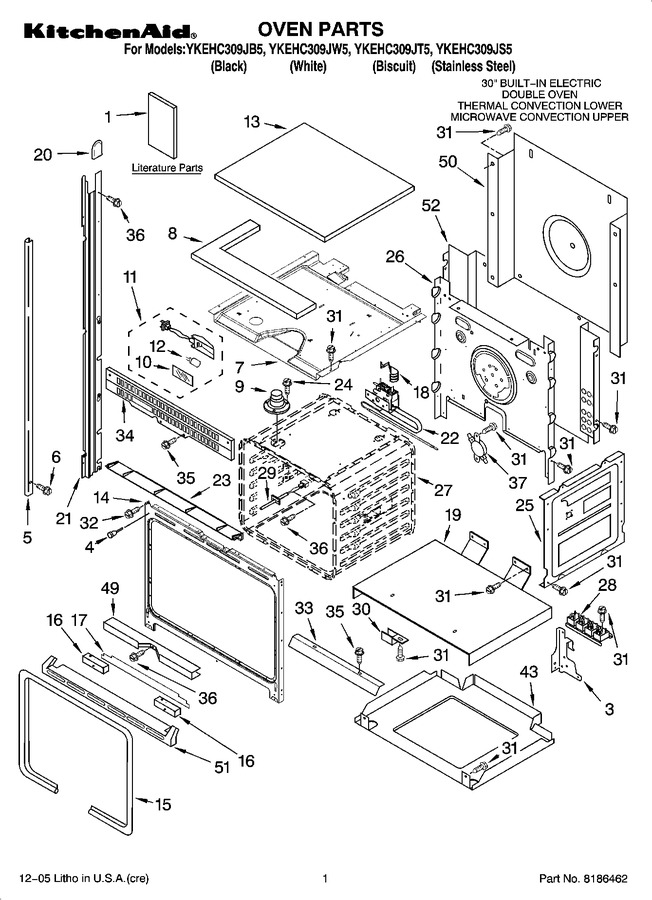

1	8300650		Installation Instructions		Appelez-nous	-
1	8304064		Use & Care Guide (upper) (english)		Appelez-nous	-
1	4449264		Easy Set Guide (english)		Appelez-nous	-
1	4448687		Easy Set Guide (french)		Appelez-nous	-
1	3191638		Safer Cooking Tips		Appelez-nous	-
1	8304070		Use & Care Guide (upper) (french)		Appelez-nous	-
1	8304065		Use & Care Guide (lower) (english)		Appelez-nous	-
1	8300499		Use & Care Guide (lower) (french)		Appelez-nous	-
1	4453330		Cooking Guide (label)		Appelez-nous	-
1	4452967		Chart, High Speed Cooking (english)		Appelez-nous	-
1	8300525		Chart, High Speed Cooking (french)		Appelez-nous	-
1	8302002		Tech Sheet (oven) (english)		Appelez-nous	-
1	8302003		Tech Sheet (oven) (french)		Appelez-nous	-
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	4448520		Bumper, Door				$ 22.25
5	4455432		Trim, Side Right Hand (white)		Appelez-nous	-
5	4452084		(trim, Side Left Hand) (stainless Steel)		Appelez-nous	-
5	4455435		(trim, Side Left Hand) (biscuit)		Appelez-nous	-
5	4455433		(trim, Side Left Hand) (white)		Appelez-nous	-
5	4455431		(trim, Side Left Hand) (black)				$ 65.17
5	4452083		Trim, Side Right Hand (stainless Steel)		Appelez-nous	-
5	4455434		Trim, Side Right Hand (biscuit)		Appelez-nous	-
5	4455430		Trim, Side Right Hand (black)				$ 67.89
6	WP8281236		Screw   (Replaces: 8281236)				$ 8.16
7	8303099		Top Chassis				$ 70.97
8	4452492		Insulation, Top		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452163		Lens, Light				$ 12.33
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 70.69
13	4452491		Insulation, Grill		Appelez-nous	-
14	9759060		Frame, Front		Appelez-nous	-
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
16	4452490		Spacer, Foam				$ 34.83
17	4452337		Insulation Bottom Vent		Appelez-nous	-
18	98005642		Clip, Bulb   (Replaces: 313382)			Immediately	$ 87.08
19	4451478		Support, Insulation				$ 54.10
20	4451605		Cap, Spacer				$ 38.55
21	4450583		Rail, Side (right Side)		Appelez-nous	-
21	4450584		Rail, Side (left Side)		Appelez-nous	-
22	4450812		Switch, Safety				$ 177.31
23	4456145		Vent, Control		Appelez-nous	-
24	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
26	4452234		Back, Chassis		Appelez-nous	-
28	WP9752759		Relay   (Replaces: 9752759)			Immediately	$ 201.17
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
30	4449845		Bracket-support		Appelez-nous	-
31	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
32	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
33	9760677		Deflector, Vent				$ 155.46
34	8302592		Vent, Center				$ 63.42
35	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
36	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
37	WP9759243		Thermostat 120c (temp.) Spst   (Replaces: 9759243)			Immediately	$ 55.44
43	9759713		Base, Chassis				$ 100.19
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
51	4455445		Trim, Bottom (white)		Appelez-nous	-
51	4452152		Bracket, Mounting Bottom Trim				$ 35.18
51	4455147		Trim, Bottom (stainless Steel)				$ 96.52
51	4455447		Trim, Bottom (biscuit)		Appelez-nous	-
51	4455443		Trim, Bottom (black)		Appelez-nous	-
52	4450365		Insulation, Back				$ 70.95
52	4451756		Chassis, Back		Appelez-nous	-
52	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
