SELECT A DIAGRAM

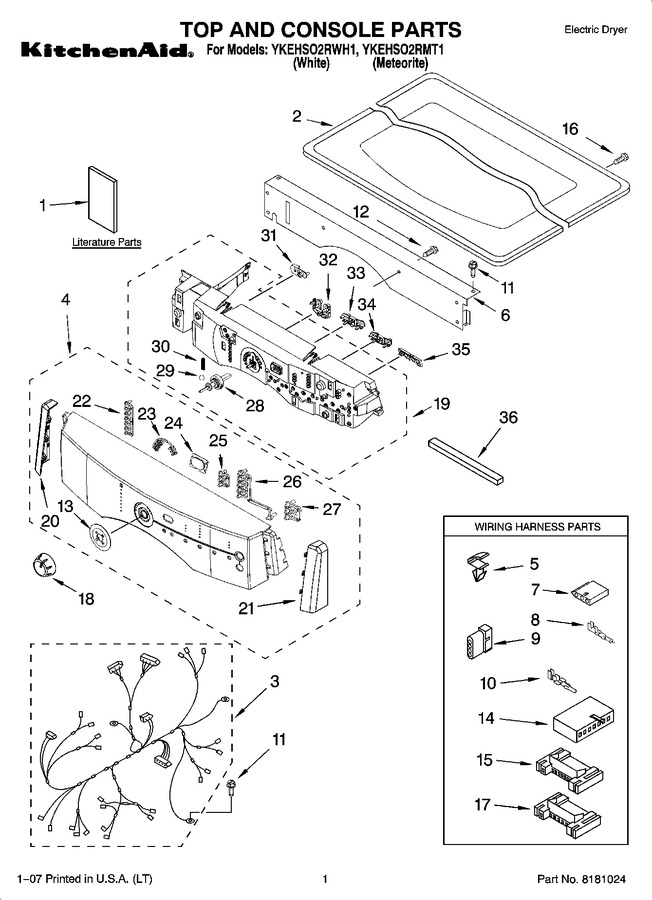

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8578196		Use & Care Guide		Appelez-nous	-
1	8563818		Tech Sheet		Appelez-nous	-
1	8557330		Guide, Quick Start		Appelez-nous	-
2	8519251		Top (white)		Appelez-nous	-
2	8539266		Top (meteorite)		Appelez-nous	-
3	8529984		Harness, Main				$ 51.84
4	8562599		Panel, Console (includes Bezel, Light Indicators & Endcaps) (white)		Appelez-nous	-
4	8542706		Panel, Console (includes Bezel, Light Indicators & Endcaps) (cashmere Metallic)		Appelez-nous	-
5	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
6	8519271		Bracket, Console		Appelez-nous	-
7	353424		Connector, Sensor				$ 18.95
8	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
9	3936144		Plug, Terminal				$ 20.21
10	94613		Terminal		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
12	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 10.58
13	8542690		Bezel, Cycle		Appelez-nous	-
14	3936150		Connector, 7-circuit				$ 77.60
15	3395683		Connector (motor)			Immediately	$ 51.86
16	8281225		Screw, 8-18 X 1/2		Appelez-nous	-
17	2203186		Connector, 5-circuit				$ 12.55
18	8542701		Knob, Assembly				$ 71.53
19	8558455		User Interface (includes Illus. 28, 29 & 30)				$ 315.33
20	8562598		Endcap (lh) (white)		Appelez-nous	-
20	8542714		Endcap (lh) (meteorite)		Appelez-nous	-
21	8542713		Endcap (rh) (meteorite)		Appelez-nous	-
21	8562597		Endcap (rh) (white)		Appelez-nous	-
22	8542682		Light Indicator (status)		Appelez-nous	-
23	8542683		Light Indicator (cycle)		Appelez-nous	-
24	8542691		Lens, Display		Appelez-nous	-
25	8542684		Light Indicator (dryness Level)		Appelez-nous	-
26	8542685		Light Indicator (temperature)		Appelez-nous	-
27	8542686		Light Indicator (xcare/eoc)		Appelez-nous	-
28	8542717		Shaft, Cycle Selector				$ 44.40
29	8542716		Bearing, Knob				$ 37.96
30	8542715		Spring, Knob				$ 43.73
31	8562606		Pushbutton, (control) (silver)				$ 92.42
31	8542711		Pushbutton, (control) (cashmere Metallic)				$ 8.68
32	8542708		Pushbutton, (drytime) (cashmere Metallic)				$ 11.55
32	8562603		Pushbutton, (drytime) (white)				$ 11.45
33	8562604		Pushbutton, (dryness/temp) (white)				$ 54.60
33	8542709		Pushbutton, (dryness/temp) (cashmere Metallic)		Appelez-nous	-
34	8562605		Pushbutton, (xcare/eoc) (white)		Appelez-nous	-
34	8542710		Pushbutton, (xcare/eoc) (cashmere Metallic)		Appelez-nous	-
35	8558454		Pushbutton, (start/cancel)				$ 36.53
36	8066181		Gasket, Console		Appelez-nous	-
