SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Top Venting Parts


09 - Microwave Door Parts


10 - Optional Parts

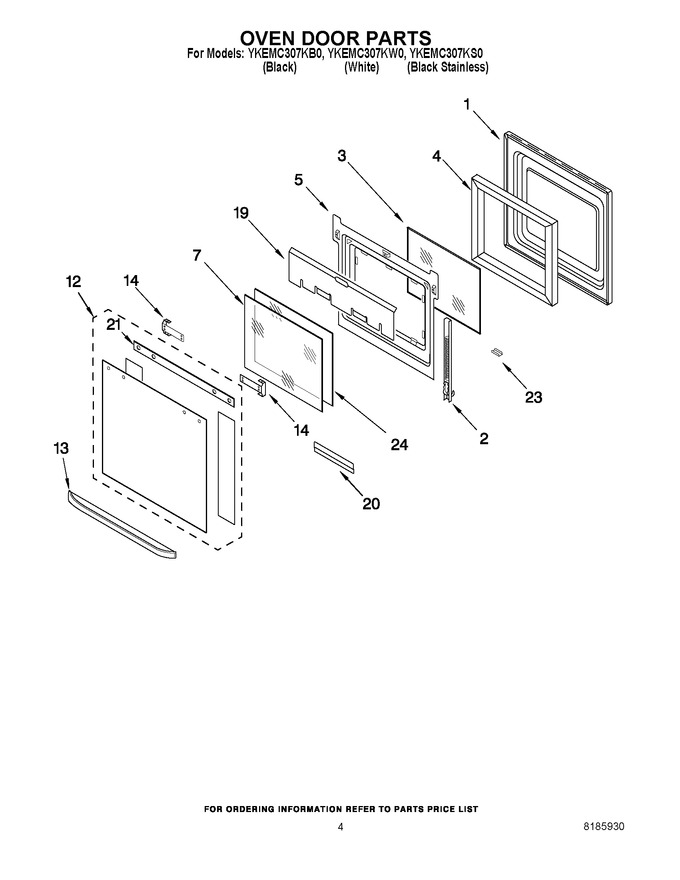

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 4455618)				$ 370.46
2	WP9760575		Hinge, Door (r.side (clear))   (Replaces: 8300575)			Immediately	$ 64.57
2	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
2	WP9760576		Hinge, Door (l.side (clear))   (Replaces: 8300576)			Immediately	$ 56.46
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 189.77
5	8300778		Retainer, Glass		Appelez-nous	-
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 167.89
12	4455391		Door Glass, Assy (black)		Appelez-nous	-
12	WP4452259		Door Glass, Assy (stainless)   (Replaces: 4452259)			Immediately	$ 414.05
12	4455390		Door Glass, Assy (white)		Appelez-nous	-
13	4452503		Door Handle (white)		Appelez-nous	-
13	4452502		Door Handle (black)		Appelez-nous	-
14	W10276642		Screw   (Replaces: 4451040)				$ 6.41
14	4455803		Bracket, Handle (r.hand)				$ 30.70
14	4455804		Bracket, Handle (l.hand)				$ 25.95
19	4450362		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	4451668		Retainer, Glass		Appelez-nous	-
21	4452326		Seal, Door Top		Appelez-nous	-
23	4450863		Retainer, Glass Clip (black)		Appelez-nous	-
23	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
23	4450864		Retainer,glass Clip (white)		Appelez-nous	-
24	4455257		Glass, Inner				$ 85.45

    View Diagram in Separate Window       Print Part List
