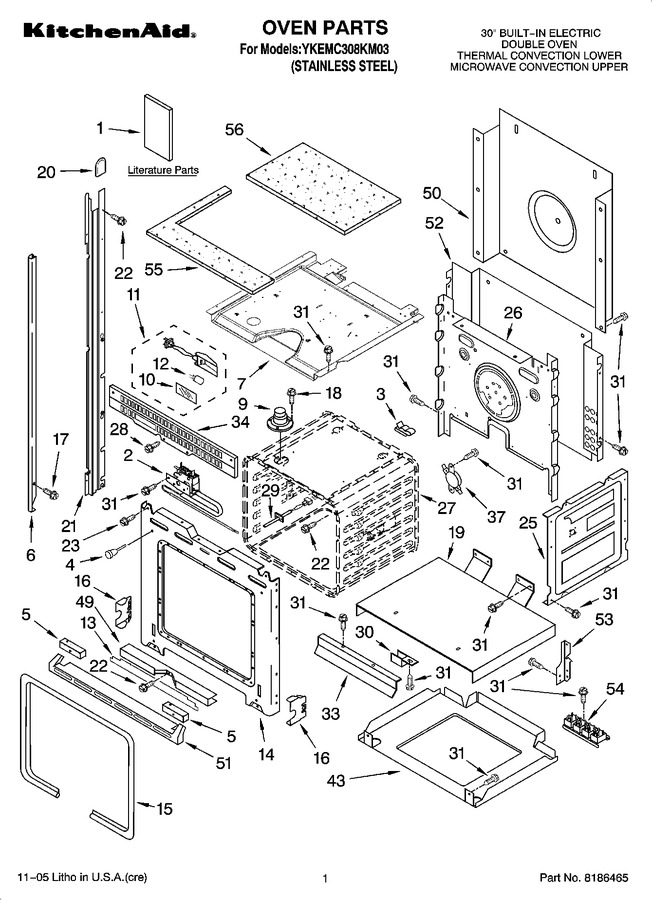

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4451052 | Easy Set Guide (english) |
|
- | |||||
| 1 | 8302002 | Tech Sheet (english) |
|
- | |||||
| 1 | 8301038 | Easy Set Guide (french) |
|
- | |||||
| 1 | 8302003 | Tech Sheet (french) |
|
- | |||||
| 1 | 9759133 | Safer Cooking Tips Microwave |
|
- | |||||
| 1 | 3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | 8300650 | Installation Instructions |
|
- | |||||
| 1 | 8304066 | Use & Care Guide (english) |
|
- | |||||
| 1 | 8304071 | Use & Care Guide (french) |
|
- | |||||
| 1 | 8304067 | Use & Care Guide (microwave) (english) |
|
- | |||||
| 1 | 8304072 | Use & Care Guide (microwave) (french) |
|
- | |||||
| 1 | 4449066 | Cookbook (t/c Oven) |
|
- | |||||
| 2 | 4450812 | Safety Switch (oven Temp) |
|
$ 177.31 | |||||
| 3 | 98005642 | Clip, Bulb (Replaces: 313382) |
|
Immediately | $ 87.08 | ||||
| 4 | 4448520 | Bumper, Door |
|
$ 22.25 | |||||
| 5 | 4452490 | Spacer, Foam |
|
$ 34.83 | |||||
| 6 | 4452083 | Trim, Side (rh) |
|
- | |||||
| 6 | 4452084 | Trim, Side (lh) |
|
- | |||||
| 7 | 8303099 | Top Chassis |
|
$ 70.97 | |||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 122.46 | |||||
| 10 | 4452163 | Lens, Light |
|
$ 12.33 | |||||
| 11 | WP4448972 | Oven Light Assy (Replaces: 4448972) |
|
$ 114.87 | |||||
| 12 | WP4452164 | Bulb, Light (Replaces: 4452164) |
|
Immediately | $ 70.69 | ||||
| 13 | 4452337 | Insulation Bottom Vent |
|
- | |||||
| 14 | 9759060 | Frame, Front |
|
- | |||||
| 15 | W11675844 | Gasket, Door (Replaces: 4455382) |
|
Immediately | $ 74.56 | ||||
| 16 | 4452152 | Bracket, Mounting |
|
$ 35.18 | |||||
| 17 | WP694091 | Screw (Replaces: 694091) |
|
$ 7.55 | |||||
| 18 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 19 | 4451478 | Support, Insulation |
|
$ 54.10 | |||||
| 20 | 4451605 | Cap, Spacer |
|
$ 38.55 | |||||
| 21 | 4450583 | Rail, Side (right Side) |
|
- | |||||
| 21 | 4450584 | Rail, Side (left Side) |
|
- | |||||
| 22 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 23 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 25 | W10782197 | Side, Chassis (r.h. & L.h.) (Replaces: 4455641) |
|
$ 150.69 | |||||
| 26 | 4452234 | Back, Chassis |
|
- | |||||
| 28 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 8.30 | |||||
| 29 | WPW10131825 | Sensor (Replaces: 4455636) |
|
Immediately | $ 95.83 | ||||
| 30 | 4449845 | Bracket-support |
|
- | |||||
| 31 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 33 | 9760677 | Deflector, Vent |
|
$ 155.46 | |||||
| 34 | 8302592 | Vent, Center |
|
$ 63.42 | |||||
| 37 | WP9759243 | Thermostat (tod) (temp.) Spst (Replaces: 9759243) |
|
Immediately | $ 55.44 | ||||
| 43 | 9759713 | Base, Chassis |
|
$ 100.19 | |||||
| 49 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 9.30 | |||||
| 50 | WP4451747 | Cover-back (Replaces: 4451747) |
|
$ 150.07 | |||||
| 51 | 4455147 | Trim, Bottom |
|
$ 96.52 | |||||
| 52 | 4451756 | Chassis, Back |
|
- | |||||
| 53 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 131.74 | ||||
| 53 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 127.70 | ||||
| 54 | 4451393 | Bracket, Relay |
|
- | |||||
| 54 | WP9752759 | Relay, Double Line Break (Replaces: 9752759) |
|
Immediately | $ 201.17 | ||||
| 55 | 4452492 | Insulation, Convection Top |
|
- | |||||
| 56 | 4452491 | Insulation, Convection Grill |
|
- | |||||
| 56 | 4450365 | Insulation, Back |
|
$ 70.95 | |||||
| 56 | W11684730 | Insulation, Wrap (Replaces: 4449316) |
|
$ 124.85 |
