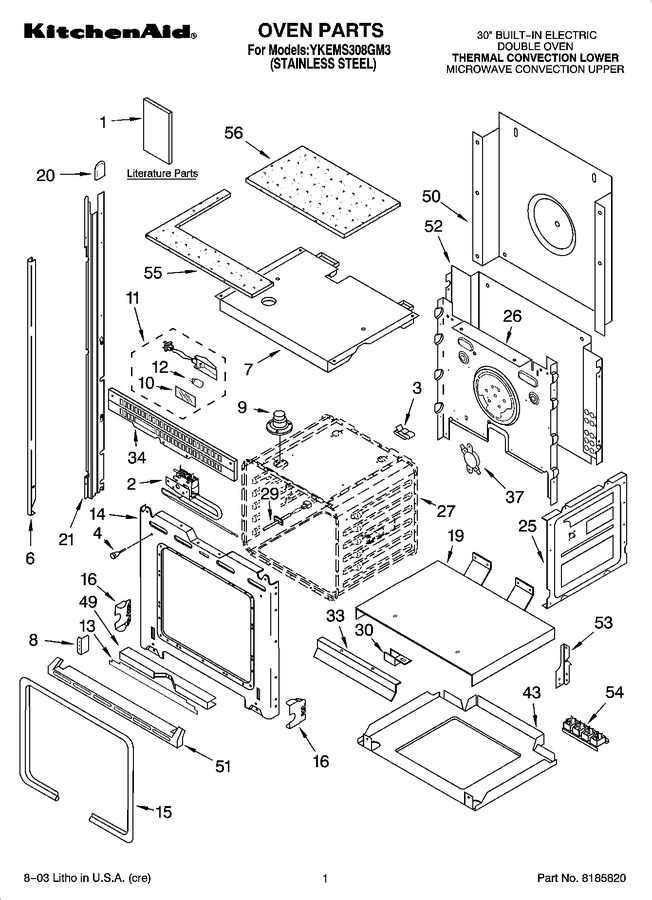

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4451052		Literature Parts (guide, Easy Use (microwave))		Appelez-nous	-
1	LIT4451415		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT4452300		Literature Parts (use & Care Guide (english))		Appelez-nous	-
1	LIT4452305		Literature Parts (use & Care Guide (french))		Appelez-nous	-
1	LIT4452614		Literature Parts (use & Care Guide Microwave (english))		Appelez-nous	-
1	LIT4452306		Literature Parts (use & Care Guide Microwave (french))		Appelez-nous	-
1	LIT4449066		Literature Parts (cookbook (t/c Oven))		Appelez-nous	-
1	LIT4452228		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT4449264		Literature Parts (easy Set Guide (english))		Appelez-nous	-
1	LIT4448687		Literature Parts (easy Set Guide (french))		Appelez-nous	-
2	4450812		Safety Switch (oven Temp)				$ 177.31
2	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
3	98005642		Clip, Bulb   (Replaces: 313382)			Immediately	$ 87.08
4	4448520		Bumper, Door				$ 22.25
6	4452084		Trim, Side (lh)		Appelez-nous	-
6	4452083		Trim, Side (rh)		Appelez-nous	-
6	WP694091		Screw   (Replaces: 694091)				$ 7.55
7	4455286		Top, Chassis		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
8	4455510		Bracket, Support		Appelez-nous	-
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452163		Lens, Light				$ 12.33
11	4449748		Screw				$ 14.23
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 70.69
13	4452337		Insulation Bottom Vent		Appelez-nous	-
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	4455612		Frame, Front		Appelez-nous	-
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
16	4452152		Bracket, Mounting				$ 35.18
19	4451478		Support, Insulation				$ 54.10
20	4451605		Cap, Spacer				$ 38.55
21	4450583		Rail, Side (right Side)		Appelez-nous	-
21	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
21	WP4448444		Grommet   (Replaces: 4448444)				$ 7.85
21	4450584		Rail, Side (left Side)		Appelez-nous	-
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452234		Back, Chassis		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 105.00
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
30	4449845		Bracket-support		Appelez-nous	-
30	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
33	4452496		Deflector, Vent		Appelez-nous	-
34	4451667		Vent, Center		Appelez-nous	-
34	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 4451442)			Immediately	$ 59.56
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4455530		Base, Chassis		Appelez-nous	-
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
51	4450289		Screw		Appelez-nous	-
51	4455147		Trim, Bottom				$ 96.52
52	4451756		Chassis, Back		Appelez-nous	-
53	4455520		Receiver, Hinge (left Hand)		Appelez-nous	-
53	4455521		Receiver, Hinge (right Hand)		Appelez-nous	-
54	WP9752759		Relay, Double Line Break   (Replaces: 9752759)			Immediately	$ 201.17
54	4451393		Bracket, Relay		Appelez-nous	-
55	4452492		Insulation, Convection Top		Appelez-nous	-
56	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
56	4450365		Insulation, Back				$ 70.95
56	4452491		Insulation, Convection Grill		Appelez-nous	-
