01 - Cooktop Parts

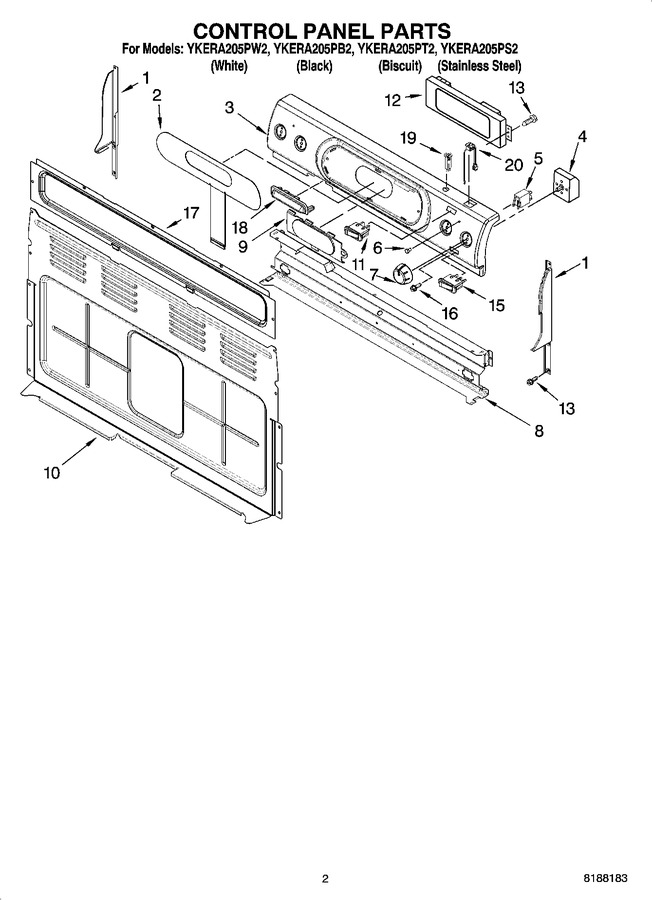

02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9756961 | Endcap (black Left Hand) |
|
- | |||||
| 1 | 9756959 | Endcap (white Left Hand) |
|
- | |||||
| 1 | 9756958 | Endcap (white Right Hand) |
|
- | |||||
| 1 | 9756962 | Endcap (biscuit Right Hand) |
|
- | |||||
| 1 | 9756960 | Endcap (black Right Hand) |
|
- | |||||
| 1 | 9756963 | Endcap (biscuit Left Hand) |
|
- | |||||
| 2 | 9762105 | Membrane Switch (black) |
|
- | |||||
| 2 | 9762106 | Membrane Switch (biscuit) |
|
$ 517.73 | |||||
| 2 | 9762107 | Membrane Switch (stainless Steel) |
|
$ 334.73 | |||||
| 2 | 9762108 | Membrane Switch (white) |
|
$ 523.47 | |||||
| 3 | 9756738 | Panel, Backguard (biscuit) |
|
- | |||||
| 3 | 9756737 | Panel, Backguard (black) |
|
- | |||||
| 3 | 9756739 | Panel, Backguard (stainless Steel) |
|
$ 158.48 | |||||
| 3 | 9756740 | Panel, Backguard (white) |
|
- | |||||
| 4 | WP9757030 | Switch, Infinite (lf/rr (dual)) (Replaces: 9757030) |
|
Immediately | $ 137.77 | ||||
| 4 | 5500-287 | Switch, Infinite (rf (green)) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 4 | WP3148952 | Switch, Infinite (lr (yellow)) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 5 | WP8523266 | Light, Indicator (Replaces: 8523266) |
|
$ 117.50 | |||||
| 6 | WP3196068 | Lens, Light (2) (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | 9756944 | Knob (4) (cashmere Metalic) |
|
$ 37.52 | |||||
| 7 | 9756943 | Knob (4) (black) |
|
$ 20.88 | |||||
| 7 | 9756941 | Knob (4) (white) |
|
$ 23.82 | |||||
| 7 | 9756942 | Knob (4) (biscuit) |
|
$ 67.41 | |||||
| 8 | 9756934 | Shield, Heat |
|
- | |||||
| 9 | 9761078 | Membrane, Insert |
|
$ 31.96 | |||||
| 10 | 9756999 | Cover, Rear |
|
- | |||||
| 11 | 9758366WH | Switch, Simmer (white) |
|
- | |||||
| 11 | WPW10163899 | Switch, Simmer (black) (Replaces: 9758366BL) |
|
$ 93.86 | |||||
| 11 | WPW10163899 | Switch, Simmer (cashmere Metalic) (Replaces: 9758366CM) |
|
$ 93.86 | |||||
| 11 | WPW10163899 | Switch, Simmer (biscuit) (Replaces: 9758366BT) |
|
$ 93.86 | |||||
| 12 | 9761590 | Control, Elec |
|
- | |||||
| 13 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 15 | 9757406BT | Switch, Warming (biscuit) |
|
- | |||||
| 15 | 9757406WH | Switch, Warming (white) |
|
- | |||||
| 15 | WPW10163902 | Switch, Warming (black) (Replaces: 9757406BL) |
|
$ 105.59 | |||||
| 15 | 9757406CM | Switch, Warming (cashmere Metalic) |
|
- | |||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 17 | 9758319 | Cover, Rear (console) |
|
- | |||||
| 18 | 9758354 | Cover, Vent (black) |
|
- | |||||
| 18 | 9758355 | Cover, Vent (cashmere Metalic) |
|
$ 107.58 | |||||
| 18 | 9758353 | Cover, Vent (biscuit) |
|
- | |||||
| 18 | 9758352 | Cover, Vent (white) |
|
- | |||||
| 19 | WP9757602 | Breaker, 15amp (black) (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 19 | WP9757601 | Breaker, 15amp (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 19 | 9757603 | Breaker, 15amp (biscuit) |
|
$ 5.84 | |||||
| 19 | WP9757604 | Breaker, 15amp (architect Grey) (Replaces: 9757604) |
|
Immediately | $ 10.94 | ||||
| 20 | 9758887 | Receptacle (biscuit) |
|
- | |||||
| 20 | W10861164 | Receptacle (architect Grey) (Replaces: 9758888) |
|
Immediately | $ 18.47 | ||||
| 20 | W10849725 | Receptacle (white) (Replaces: 9758885) |
|
Immediately | $ 80.79 | ||||
| 20 | 9758886 | Receptacle (black) |
|
$ 8.00 |
