01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts

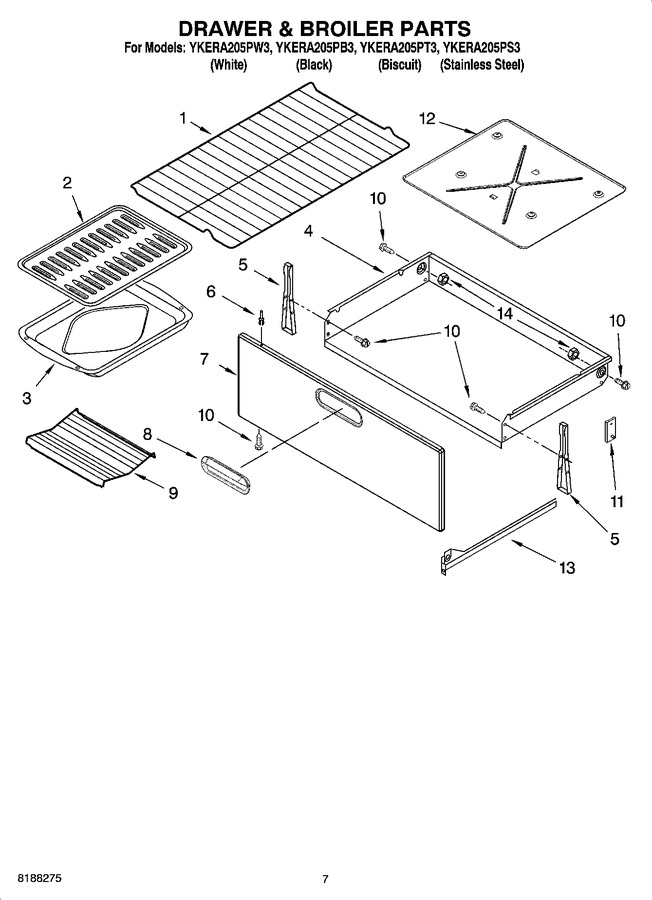

05 - Drawer & Broiler Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (3) (Replaces: 3195710) |
|
Immediately | $ 46.84 | ||||
| 2 | WP3195996 | Grill, Broiler (Replaces: 3195996) |
|
$ 98.65 | |||||
| 3 | WP3196076 | Pan, Broiler (Replaces: 3196076) |
|
$ 330.36 | |||||
| 4 | 8272605 | Drawer, Storage |
|
- | |||||
| 5 | W10838990 | Bracket, Drawer(2) (Replaces: 9758200) |
|
Immediately | $ 88.95 | ||||
| 6 | 3196815 | Rivet, Push (2) (almond) |
|
- | |||||
| 6 | WP3196813 | Rivet, Push (2) (black) (Replaces: 3196813) |
|
Immediately | $ 11.20 | ||||
| 6 | WP3196814 | Rivet, Push (2) (white) (Replaces: 3196814) |
|
Immediately | $ 11.07 | ||||
| 7 | 9756325 | Panel, Drawer Front (white) |
|
- | |||||
| 7 | 9756328 | Panel, Drawer Front (stainless Steel) |
|
- | |||||
| 7 | 9756326 | Panel, Drawer Front (biscuit) |
|
- | |||||
| 7 | 9756327 | Panel, Drawer Front (black) |
|
- | |||||
| 8 | 9756952BL | Handle, Drawer (black) |
|
- | |||||
| 8 | 9756952CM | Handle, Drawer (cashmere Metalic) |
|
- | |||||
| 8 | 9756952BT | Handle, Drawer (biscuit) |
|
- | |||||
| 8 | 9756952WH | Handle, Drawer (white) |
|
- | |||||
| 9 | 3181534 | Rack, Roasting |
|
- | |||||
| 10 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 11 | 8522669 | Spacer, Glide |
|
- | |||||
| 12 | 9756711 | Heat Shield, Drawer |
|
- | |||||
| 13 | 8274191 | Rail, Drawer (rh) |
|
- | |||||
| 13 | 8274190 | Rail, Drawer (lh) |
|
- | |||||
| 14 | WP487939 | Nut (Replaces: 487939) |
|
$ 8.62 | |||||
| 814381 | Pin Kit-dr Removal (Replaces: 3196897) |
|
$ 11.28 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 9761466 | Harness, Cooktop (left W/dual) |
|
$ 83.34 | ||||||
| 9761465 | Harness, Cooktop (right W/ Wm) |
|
- | ||||||
| 9759579 | Harness, Console |
|
- | ||||||
| 9756550 | Harness, Bake Element (hidden) |
|
$ 81.87 | ||||||
| 3196696 | Clip, Wire Harness |
|
- | ||||||
| 9758191 | Harness, Wire, Door Switch/sensor |
|
- | ||||||
| 9756350 | Cord, Power |
|
$ 60.82 | ||||||
| 9756779 | Strain Relief |
|
- | ||||||
| 8524132 | Shield, Wiring (2) |
|
- | ||||||
| 3184020 | Wire, Ground (Replaces: 8523279) |
|
$ 86.92 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | ||||||
| W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | ||||||
| WP3196154 | Screw, Ground (Replaces: 3196154) |
|
$ 8.44 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 87.22 | |||||
| 261582 | Grease |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 55.47 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 55.47 | |||||
| 313660 | Clip, Ground Wire |
|
- | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 27.77 | |||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 59.89 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 94.14 | ||||||
| 4456147 | Cleaner, Glass |
|
- | ||||||
| 2261590 | Cleaner (stainless Steel) |
|
- | ||||||
| W11839019 | Anti-tip Kit (Replaces: 9757976) |
|
Immediately | $ 28.54 | |||||
| 16515 | Clip, Wire Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| 9756707 | Harness, Oven (main) |
|
- |
