01 - Cooktop Parts

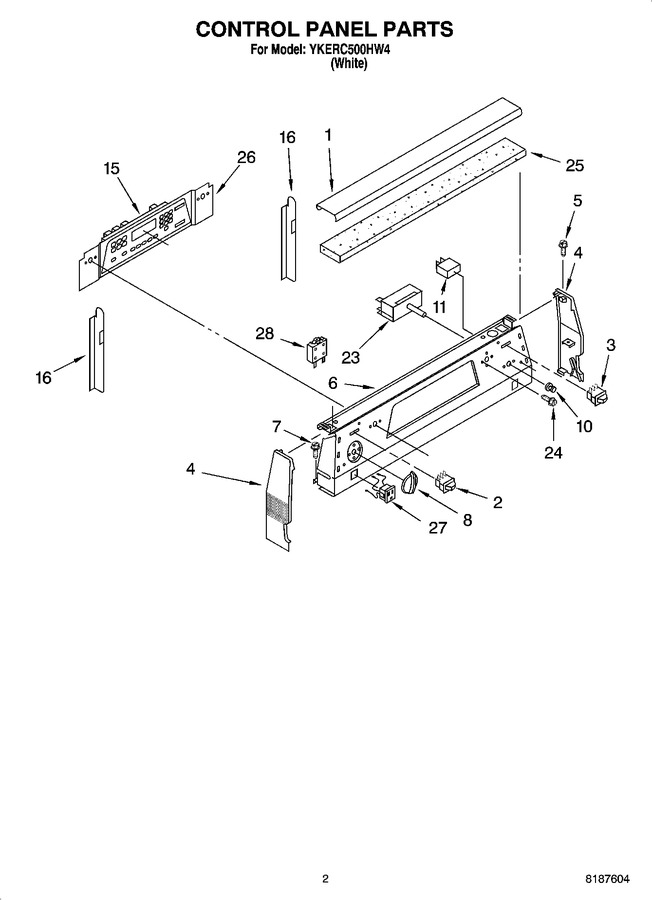

02 - Control Panel Parts
03 - Door And Drawer Parts
04 - Oven Chassis Parts
05 - Oven Parts
06 - Rear Chassis Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9753156PW | Lamp Cover |
|
- | |||||
| 2 | 9753692FW | Switch, Warm Zone |
|
- | |||||
| 3 | 9753261FW | Switch, Oven Light |
|
- | |||||
| 4 | 9750366FW | End Cap (left Hand) |
|
- | |||||
| 4 | 9750367FW | End Cap (right Hand) |
|
- | |||||
| 5 | 9780265 | Screw, 10-16 X 3/8 |
|
- | |||||
| 6 | 9753728PW | Panel, Control |
|
- | |||||
| 7 | 9780852 | Screw, 8-18 X 3/8 |
|
- | |||||
| 8 | WP9750372FW | Knobs, Control (4) (Replaces: 9750372FW) |
|
$ 20.99 | |||||
| 10 | WP9750343 | Indicator Lens (Replaces: 9752589) |
|
Immediately | $ 6.00 | ||||
| 11 | 9753422 | Light Module (2) |
|
- | |||||
| 15 | 9782086CW | Oven Control Assembly |
|
- | |||||
| 16 | 9780655 | Brace, Control Pnl |
|
- | |||||
| 23 | WP9750639 | Infinite Switch (1800w - Rf-lr) (Replaces: 9750639) |
|
Immediately | $ 152.66 | ||||
| 23 | WP9755173 | Infinite Switch (dual - Lf) (Replaces: 9755173) |
|
Immediately | $ 149.46 | ||||
| 23 | WP9750638 | Infinite Switch (1500w - Rr) (Replaces: 9750638) |
|
Immediately | $ 113.89 | ||||
| 24 | WP3400882 | Screw (8) (Replaces: 3400816) |
|
Immediately | $ 7.55 | ||||
| 25 | 9754008 | Insulation, Control |
|
- | |||||
| 26 | 9753690 | Bracket, Timer |
|
- | |||||
| 27 | 9751480FW | Outlet, Untimed |
|
- | |||||
| 27 | 9751046 | Support, Outlet |
|
- | |||||
| 28 | 9750995 | Insulation, Control Panel |
|
- | |||||
| 28 | 3191072 | Breaker, 15 Amp |
|
- |
