SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts

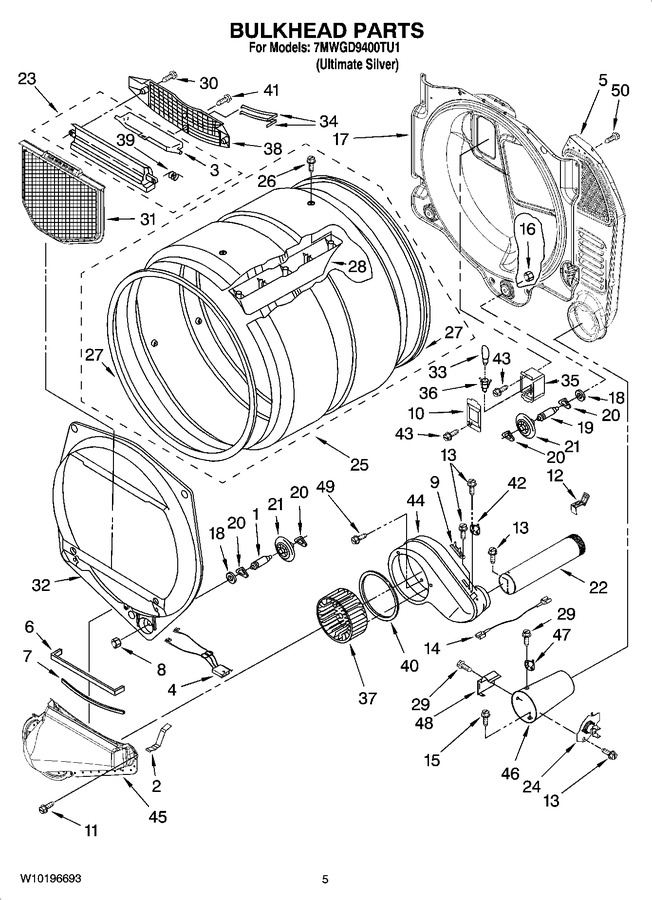

03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10359271		Shaft, R.h. Thread   (Replaces: 8575324)			Immediately	$ 62.21
2	WP8066208		Clip, Spring   (Replaces: 8066208)				$ 8.17
3	W11222846		Door, Lint Screen   (Replaces: 3394984)			Immediately	$ 203.72
4	WP3406653		Harness, Sensor   (Replaces: 3406653)			Immediately	$ 151.96
5	W11168650		Air Duct Assembly   (Replaces: 3394346)				$ 97.66
6	WP697813		Seal, Outlet Housing   (Replaces: 697813)			Immediately	$ 7.97
7	WP697813		Seal, Drum Front   (Replaces: 697814)			Immediately	$ 7.97
8	W11812294		Nut-3/8 X 16 (r.h.)   (Replaces: 3934666)				$ 12.16
9	WP3392519		Thermal Fuse (91`c)   (Replaces: 3392519)			Immediately	$ 24.95
10	W11226088		Lens, Drum Light   (Replaces: 3402841)				$ 31.09
11	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 14.06
12	W11684573		Clip, Exhaust Pipe   (Replaces: 8572105)				$ 7.78
13	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.82
14	3401710		Jumper-tco Hi-limit		Appelez-nous	-
15	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
16	WPW10080190		Nut, 3/8-16 (l.h.)   (Replaces: W10001120)			Immediately	$ 8.49
17	WPW10080170		Bulkhead, Rear   (Replaces: W10080170)				$ 339.45
18	W11236646		Washer, Support   (Replaces: 3387459)			Immediately	$ 14.03
19	WPW10359272		Shaft, L.h. Thread   (Replaces: 8575325)			Immediately	$ 58.48
20	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 8.80
21	WPW10314173		Roller, Support   (Replaces: 8536973)			Immediately	$ 28.50
22	279936		Exhaust Pipe   (Replaces: 8563745)				$ 146.84
23	W11129408		Housing,outlet   (Replaces: 3394985)			Immediately	$ 53.28
24	WP8573713		Thermal Cut-off   (Replaces: 8573713)			Immediately	$ 72.51
25	W10545924		Complete Drum Assembly   (Replaces: W10181466)				$ 435.06
26	WPW10109200		Screw, 11-16 X 3/4   (Replaces: W10109200)			Immediately	$ 8.00
27	280114		Seal, Drum   (Replaces: 697694)			Immediately	$ 70.82
28	280114		Baffle, Drum   (Replaces: W10166807)			Immediately	$ 70.82
29	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
30	WP3387230		Screw, 10-16 X 1   (Replaces: 3387230)			Immediately	$ 8.54
31	W10120998		Lint Screen   (Replaces: W10049370)				$ 67.16
32	8519245		Bulkhead, Front		Appelez-nous	-
33	WP22002263		Light Bulb   (Replaces: 3406124)			Immediately	$ 13.66
34	WP3387223		Electrode, Sensor   (Replaces: 3387223)			Immediately	$ 6.17
35	8578825		Bracket, Drum Light				$ 20.88
36	W11700522		Socket Assembly   (Replaces: W10136369)				$ 73.15
37	WP697772		Wheel, Blower   (Replaces: 697772)			Immediately	$ 59.07
38	W11086603		Grille, Outlet   (Replaces: 8299979)			Immediately	$ 35.14
39	WP3394986		Spring, Lint Screen Door   (Replaces: 3394986)				$ 84.59
40	WP697770		Seal, Cover Plate   (Replaces: 697770)			Immediately	$ 7.88
41	WP488729		Screw, 8-18 X 1/2   (Replaces: 695240)			Immediately	$ 7.79
42	WP8577274		Thermistor   (Replaces: 8577274)			Immediately	$ 43.61
43	WP488729		Screw, 8-15 X 1/2   (Replaces: 487909)			Immediately	$ 7.79
44	W10888146		Housing, Blower   (Replaces: 8544362)				$ 101.70
45	WPW10128606		Lint Duct Assembly   (Replaces: 8066168)				$ 207.12
46	WP8573824		Funnel, Burner   (Replaces: 8573824)				$ 176.47
47	WP8573028		Thermostat, High-limit 205 F (96 C)   (Replaces: 8573028)				$ 107.87
48	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 51.91
49	WP489463		Screw, 8-18 X 5/8   (Replaces: 489463)				$ 7.82
50	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79

    View Diagram in Separate Window       Print Part List
