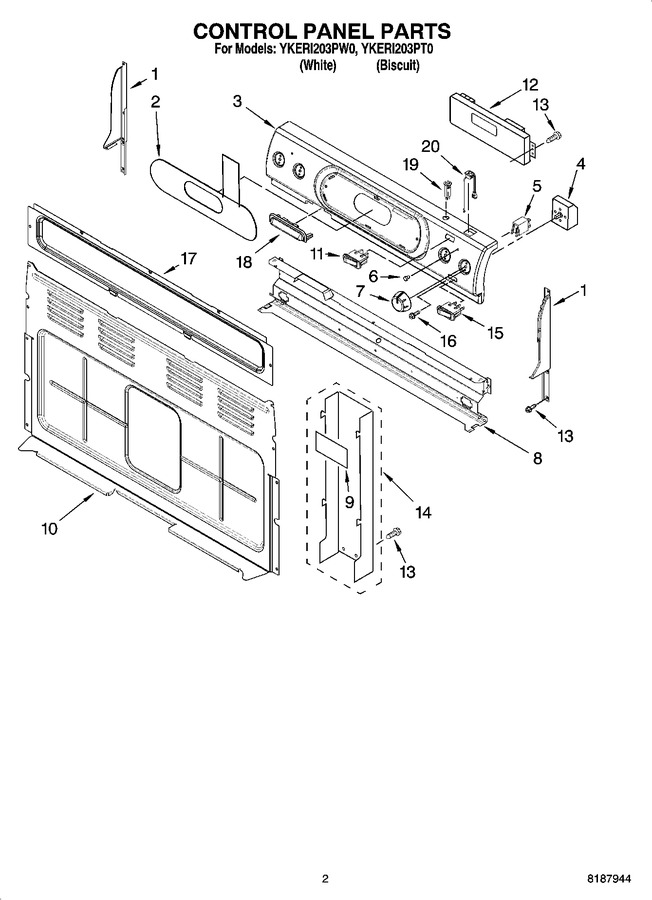

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9756959 | Endcap (white Left Hand) |
|
- | |||||
| 1 | 9756958 | Endcap (white Right Hand) |
|
- | |||||
| 1 | 9756963 | Endcap (biscuit Left Hand) |
|
- | |||||
| 1 | 9756962 | Endcap (biscuit Right Hand) |
|
- | |||||
| 2 | 9756532 | Membrane Switch (white) |
|
- | |||||
| 2 | 9756533 | Membrane Switch (biscuit) |
|
- | |||||
| 3 | 9756734 | Panel, Backguard (white) |
|
- | |||||
| 3 | 9756726 | Panel, Backguard (biscuit) |
|
- | |||||
| 4 | WP3148952 | Switch, Infinite (lr (yellow)) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 4 | 5500-287 | Switch, Infinite (rf/rr (green)) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 4 | WP9757030 | Switch, Infinite (lf (dual)) (Replaces: 9757030) |
|
Immediately | $ 137.77 | ||||
| 5 | WP8523266 | Light, Indicator (Replaces: 8523266) |
|
$ 117.50 | |||||
| 6 | WP3196068 | Lens, Light (2) (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | 9756941 | Knob (4) (white) |
|
$ 23.82 | |||||
| 7 | 9756942 | Knob (4) (biscuit) |
|
$ 67.41 | |||||
| 8 | 9756934 | Shield, Heat |
|
- | |||||
| 9 | 9757309 | Card, Insulation |
|
- | |||||
| 10 | 9756999 | Cover, Rear |
|
- | |||||
| 11 | WPW10163899 | Switch, Simmer (biscuit) (Replaces: 9757407BT) |
|
$ 93.86 | |||||
| 11 | 9757407WH | Switch, Simmer (white) |
|
- | |||||
| 12 | 9756548 | Control, Range |
|
$ 336.14 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WPW10326122 | Cover, Box (Replaces: 9757965) |
|
$ 139.60 | |||||
| 15 | 9757406BT | Switch, Warming (biscuit) |
|
- | |||||
| 15 | 9757406WH | Switch, Warming (white) |
|
- | |||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 17 | 9758319 | Cover, Rear (console) |
|
- | |||||
| 18 | 9758352 | Cover, Vent (white) |
|
- | |||||
| 18 | 9758353 | Cover, Vent (biscuit) |
|
- | |||||
| 19 | WP9757601 | Breaker, 15amp (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 19 | 9757603 | Breaker, 15amp (biscuit) |
|
$ 5.84 | |||||
| 20 | 9756360 | Receptacle (biscuit) |
|
- | |||||
| 20 | 9756358 | Receptacle (white) |
|
- |
