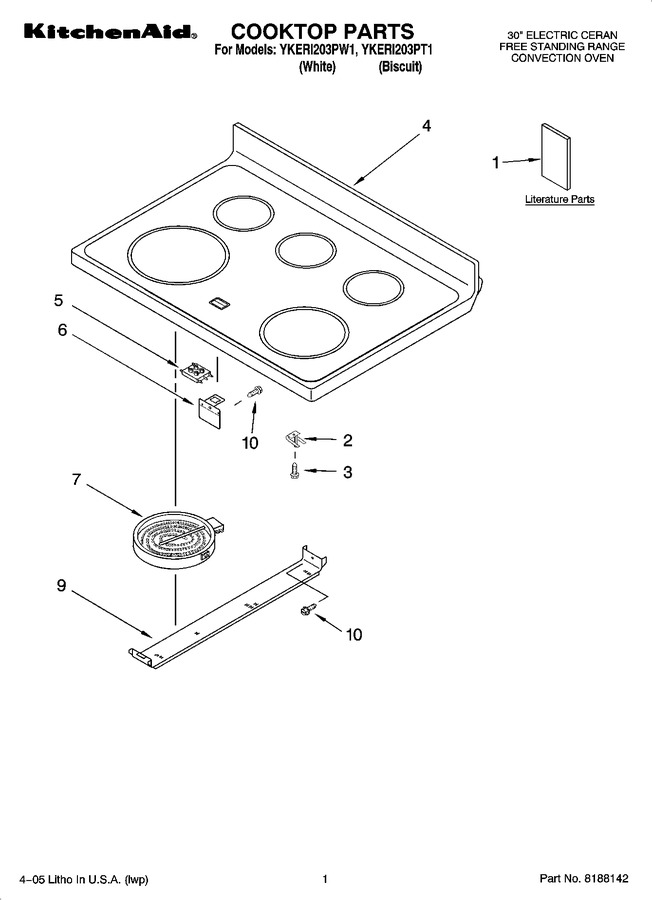

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9756848 | Installation Instructions |
|
- | |||||
| 1 | 9757142 | Anti-tip Template (english/spanish) |
|
- | |||||
| 1 | 9757143 | Template,anti-tip (english/french) |
|
- | |||||
| 1 | 9758876 | Owner`s Manual |
|
- | |||||
| 1 | 9758336 | Tech Sheet |
|
- | |||||
| 2 | 3149191 | Spring, Locator |
|
$ 9.45 | |||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 4 | 9756980 | Cooktop (biscuit) |
|
- | |||||
| 4 | 9756979 | Cooktop (white) |
|
- | |||||
| 5 | 8523739 | Light, Indicator (hot Surface) |
|
$ 120.71 | |||||
| 6 | 8523741 | Bracket, Ind Light |
|
- | |||||
| 7 | 9757028 | Element, Surface (100 W - Cr) |
|
- | |||||
| 7 | WP8273993 | Element, Surface (1800 W - Rf) (Replaces: 8273993) |
|
Immediately | $ 244.51 | ||||
| 7 | 9757031 | Element, Surface (1800/800 W - Rr) |
|
$ 134.33 | |||||
| 7 | W11171119 | Element, Surface (1200 W - Lr) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 7 | WP8523047 | Element, Surface (2500/1000 W - Lf) (Replaces: 9757027) |
|
$ 366.71 | |||||
| 9 | 8273720 | Bracket, Element ((1)) |
|
- | |||||
| 9 | 8272791 | Bracket, Element ((2)) |
|
- | |||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 |
