01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer & Broiler Parts, Miscellaneous Parts

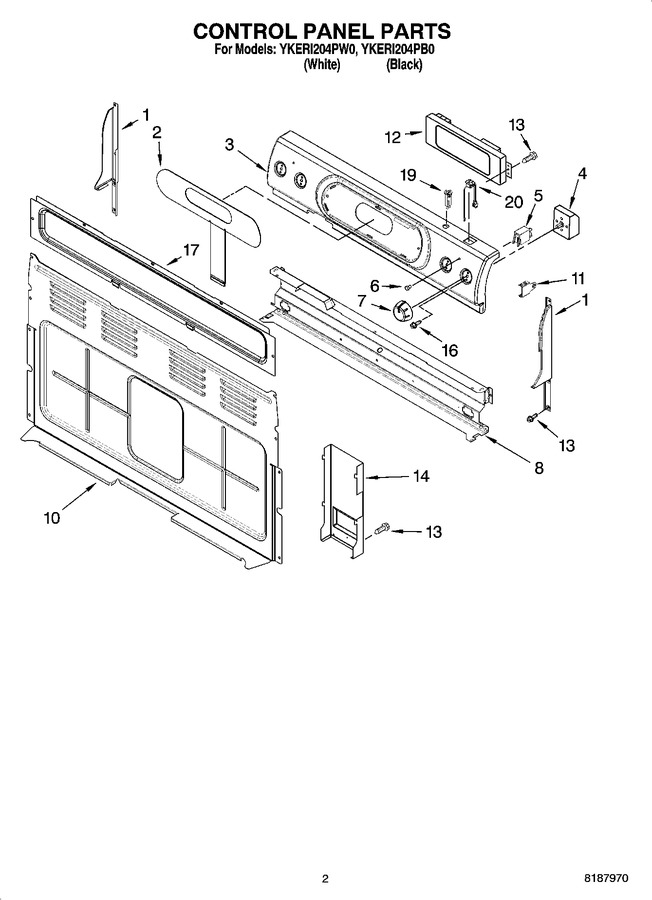

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9756959		Endcap (white Left Hand)		Appelez-nous	-
1	9756958		Endcap (white Right Hand)		Appelez-nous	-
1	9756961		Endcap (black Left Hand)		Appelez-nous	-
1	9756960		Endcap (black Right Hand)		Appelez-nous	-
2	9758381		Membrane Switch (white)		Appelez-nous	-
2	9758378		Membrane Switch (black)		Appelez-nous	-
3	9756751		Panel, Backguard (black)		Appelez-nous	-
3	9756750		Panel, Backguard (white)		Appelez-nous	-
4	WP3148952		Switch, Infinite (lr/rf (yellow))   (Replaces: 3148952)			Immediately	$ 69.51
4	WP3149400		Switch, Infinite (lf/rr (orange))   (Replaces: 3148954)			Immediately	$ 90.51
5	WP8523266		Light, Indicator   (Replaces: 8523266)				$ 117.50
6	WP3196068		Lens, Light (2)   (Replaces: 3196068)			Immediately	$ 6.26
7	9756943		Knob (4) (black)				$ 20.88
7	9756941		Knob (4) (white)				$ 23.82
8	9756934		Shield, Heat		Appelez-nous	-
10	9756999		Cover, Rear		Appelez-nous	-
11	9760025		Bracket, Hinge (left Hand)		Appelez-nous	-
11	9760026		Bracket, Hinge (right Hand)		Appelez-nous	-
12	9759566		Control, Range		Appelez-nous	-
13	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
14	9757972		Cover, Box		Appelez-nous	-
16	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
17	9758319		Cover, Rear (console)		Appelez-nous	-
19	WP9757601		Breaker, 15amp (white)   (Replaces: 9757601)			Immediately	$ 65.55
19	WP9757602		Breaker, 15amp (black)   (Replaces: 9757602)			Immediately	$ 53.81
20	9756359		Receptacle (black)		Appelez-nous	-
20	9756358		Receptacle (white)		Appelez-nous	-
