SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts

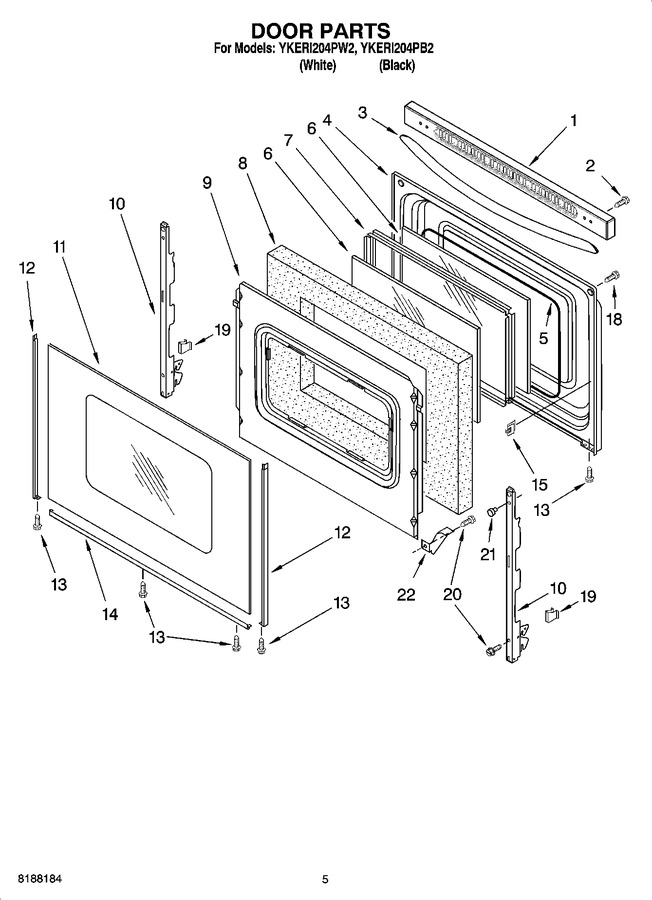

04 - Door Parts


05 - Drawer & Broiler Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9756965		Trim, Door Top (white)		Appelez-nous	-
1	9756967		Trim, Door Top (black)		Appelez-nous	-
2	8534065		Screw				$ 35.92
3	9758293		Handle, Door (white)		Appelez-nous	-
3	9758294		Handle Door, (black)		Appelez-nous	-
4	3186292		Liner, Door		Appelez-nous	-
5	8522414		Seal, Window				$ 160.59
6	WP8053948		Glass, Inner (2)   (Replaces: 9758162)				$ 178.28
7	WPW10316950		Frame, Glass   (Replaces: 3186289)			Immediately	$ 90.09
8	WPW10278991		Insulation, Door   (Replaces: 8272618)			Immediately	$ 101.37
9	W11539580		Retainer, Insul.   (Replaces: 3186297)				$ 233.31
10	WP8053807		Hinge, Door   (Replaces: 8053807)				$ 101.17
11	WPW10118454		Glass, Outer Door (white)   (Replaces: 9762127)				$ 324.91
11	9762129		Glass, Outer Door (black)		Appelez-nous	-
12	WP8523166		Trim, Side (white Right Hand)   (Replaces: 8523166)			Immediately	$ 84.23
12	WP8523172		Trim, Side (white Left Hand)   (Replaces: 8523172)			Immediately	$ 69.93
12	W10761014		Trim, Side (black Right Hand)   (Replaces: 8523165)			Immediately	$ 72.96
12	W10761018		Trim, Side (black Left Hand)   (Replaces: 8523171)			Immediately	$ 53.77
13	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
14	W11594186		Trim, Lower (white)   (Replaces: 8523175)			Immediately	$ 61.37
14	WP8523177		Trim, Lower (black)   (Replaces: 8523177)			Immediately	$ 165.86
15	3196025		Clip, Glass (4)				$ 20.10
18	WP179051		Screw   (Replaces: 3196161)			Immediately	$ 8.42
19	3196925		Clip, Door Stop				$ 9.06
20	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
21	238614		Bumper, Door (2)   (Replaces: 3195809)				$ 84.79
22	3196794		Bracket, Window (2)				$ 24.34

    View Diagram in Separate Window       Print Part List
