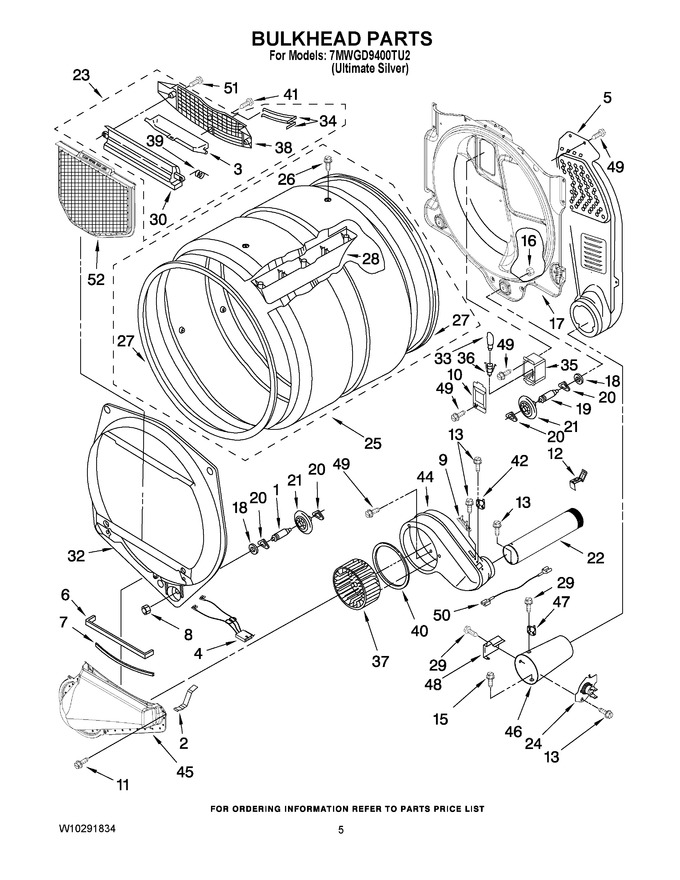

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10359271		Shaft, R.h. Thread   (Replaces: 8575324)			Immediately	$ 62.21
2	WP8066208		Clip, Spring   (Replaces: 8066208)				$ 8.83
3	W11222846		Door, Lint Screen   (Replaces: 3394984)			Immediately	$ 213.91
4	WP3406653		Harness, Sensor   (Replaces: 3406653)			Immediately	$ 159.56
5	W11168650		Air Duct Assembly   (Replaces: 3394346)				$ 97.66
6	WP697813		Seal, Outlet Housing   (Replaces: 697813)			Immediately	$ 8.37
7	WP697813		Seal, Drum Front   (Replaces: 697814)			Immediately	$ 8.37
8	W11812294		Nut-3/8 X 16 (r.h.)   (Replaces: 3934666)				$ 12.77
9	WP3392519		Thermal Fuse (91`c)   (Replaces: 3392519)			Immediately	$ 24.95
10	W11226088		Lens, Drum Light   (Replaces: 3402841)				$ 32.64
11	WP488729		Screw, 8-18 X.50   (Replaces: 3390647)			Immediately	$ 8.28
12	W11684573		Clip, Exhaust Pipe   (Replaces: 8572105)				$ 8.17
13	WP90767		Screw, 8-18 X 5/16 Rear Bulkhead   (Replaces: 8533971)			Immediately	$ 8.25
15	WP693995		Screw, 8-18 X.375   (Replaces: 693995)			Immediately	$ 7.55
16	WPW10080190		Nut, 3/8-16 (l.h.)   (Replaces: W10001120)			Immediately	$ 10.01
17	WPW10080170		Bulkhead, Rear   (Replaces: W10080170)				$ 356.42
18	W11236646		Washer, Support   (Replaces: 3387459)			Immediately	$ 14.73
19	WPW10359272		Shaft, L.h. Thread   (Replaces: 8575325)			Immediately	$ 58.48
20	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 8.80
21	WPW10314173		Roller, Support   (Replaces: 8536973)			Immediately	$ 28.50
22	279936		Exhaust Pipe   (Replaces: 8563745)				$ 154.18
23	W10253352		Outlet Grill Housing Assembly		Appelez-nous	-
24	WP8573713		Thermal Cut-off   (Replaces: 8573713)			Immediately	$ 72.51
25	W10545924		Complete Drum Assembly   (Replaces: W10181466)				$ 456.81
26	W10853898		Screw, 11-16 X 3/4   (Replaces: W10219342)			Immediately	$ 8.18
27	280114		Seal, Drum   (Replaces: W10166807)			Immediately	$ 70.82
28	W11782150		Baffle, Drum   (Replaces: 697693)			Immediately	$ 95.57
29	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
30	W11129408		Housing, Outlet (includes Item 6) Rear Bulkhead (2)   (Replaces: 3394985)			Immediately	$ 53.28
32	W10252304		Bulkhead, Front				$ 187.98
33	WP22002263		Bulb, Light   (Replaces: 3406124)			Immediately	$ 14.85
34	WP3387223		Electrode, Sensor   (Replaces: 3387223)			Immediately	$ 6.17
35	8578825		Bracket, Drum Light				$ 21.92
36	W11222979		Socket Assembly   (Replaces: W10214261)			Immediately	$ 118.79
37	WP697772		Wheel, Blower   (Replaces: 697772)			Immediately	$ 59.07
38	W11086603		Grille, Outlet   (Replaces: 8299979)			Immediately	$ 36.90
39	WP3394986		Spring, Lint Screen Door   (Replaces: 3394986)				$ 93.47
40	WP697770		Seal, Cover Plate   (Replaces: 697770)			Immediately	$ 8.27
41	WP488729		Screw, 8-18 X 1/2   (Replaces: 695240)			Immediately	$ 8.28
42	WP8577274		Thermistor   (Replaces: 8577274)			Immediately	$ 43.61
44	W10888146		Housing, Blower   (Replaces: 8544362)				$ 106.79
45	WPW10128606		Lint Duct Assembly   (Replaces: 8066168)				$ 217.48
46	WP8573824		Funnel, Burner   (Replaces: 8573824)				$ 185.29
47	WP8573028		Thermostat, High-limit 205 F (96 C)   (Replaces: 8573028)				$ 113.26
48	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 51.91
49	WP488729		Screw, 8-18 X.50   (Replaces: 3390647)			Immediately	$ 8.28
50	3401710		Jumper-tco Hi-limit		Appelez-nous	-
51	WP3387230		Screw, 10-16 X 1   (Replaces: 3387230)			Immediately	$ 8.54
52	W10120998		Screen, Lint   (Replaces: W10049370)				$ 67.16
