01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts

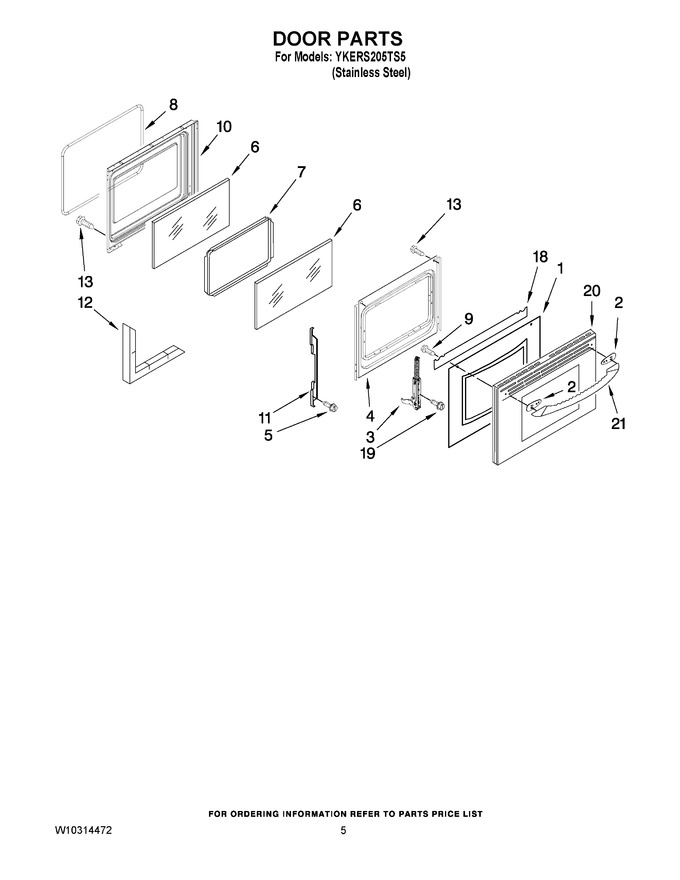

04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10160909 | Glass, Outer Door |
|
- | |||||
| 2 | W11190816 | Spacer, Handle (black) (Replaces: 3823F017-45) |
|
$ 17.43 | |||||
| 3 | 74010546 | Hinge, Door (2) (Replaces: 7106P124-60) |
|
Immediately | $ 89.94 | ||||
| 4 | 3601F380-51 | Baffel, Retainer |
|
$ 25.83 | |||||
| 5 | W11233072 | Screw (6) (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 6 | 74003645 | Glass, Inner (2) (Replaces: 7902P436-60) |
|
Immediately | $ 223.59 | ||||
| 7 | 3801F886-51 | Frame, Glass Inner |
|
$ 38.25 | |||||
| 8 | W10290904 | Gasket, Door |
|
- | |||||
| 9 | W11164114 | Screw (Replaces: W10176584) |
|
$ 4.38 | |||||
| 10 | 2402W297-19 | Lining, Door |
|
$ 152.41 | |||||
| 11 | 3801P918-51 | Bracket, Glass (2) |
|
- | |||||
| 12 | 7002P246-60 | Insulation, Door |
|
$ 58.49 | |||||
| 13 | 7101P652-60 | Screw (8) |
|
- | |||||
| 18 | 7002P482-60 | Insulation, Foil |
|
- | |||||
| 19 | WP4159193 | Screw 10-24x5/16 (Replaces: 7101P282-60) |
|
$ 5.07 | |||||
| 20 | 7760P218-60 | Glass, Door (stainless Steel) |
|
$ 239.97 | |||||
| 21 | W10153016 | Handle, Door (s.steel) |
|
$ 126.24 |
