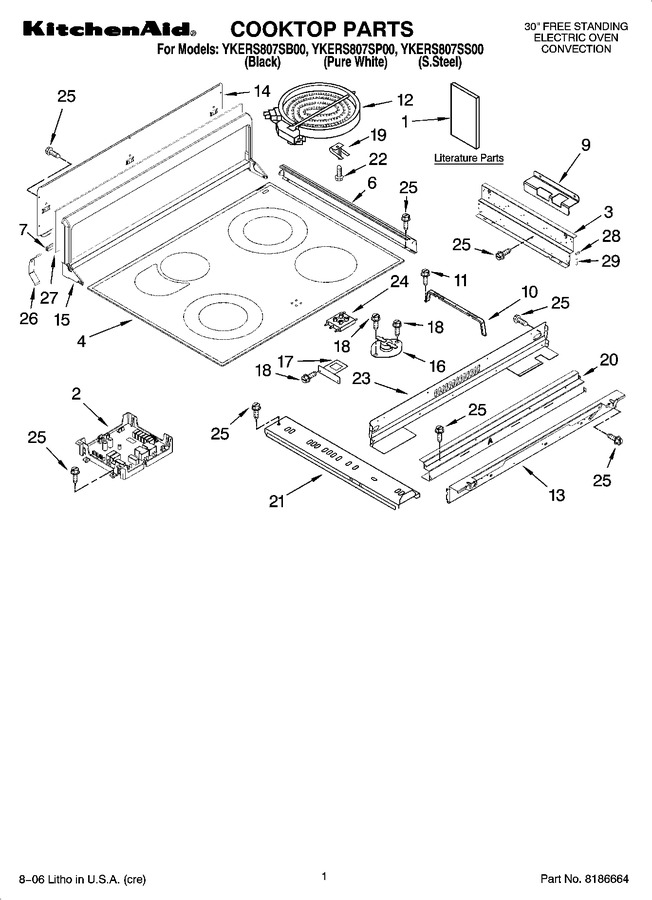

01 - Cooktop Parts


02 - Control Panel Parts


03 - Oven Parts


04 - Door And Drawer Parts


05 - Internal Oven Parts


06 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	W10076020		Gasket, Cooktop				$ 50.99
9	9757686		Support (l.hand)				$ 38.48
9	9757687		Support (r.hand)				$ 38.36
10	9756821		Support, Wiring		Appelez-nous	-
11	WP4449809		Screw (2)   (Replaces: 4449809)			Immediately	$ 7.55
12	8203525		Element, Surface (1800/1000w)		Appelez-nous	-
12	W10823692		Element, Surface (2500/1200w (2))   (Replaces: 4453909)			Immediately	$ 281.78
12	W10823698		Element, Surface (1800w - Rr)   (Replaces: 8523696)			Immediately	$ 236.75
13	9761423		Bracket, Front Support				$ 43.33
14	9761577		Cover, Backsplash Rear		Appelez-nous	-
15	W10109770		Backsplash (nickel Plated)		Appelez-nous	-
15	9763483BL		Gasket (black)				$ 104.52
15	W10109750		Backsplash (black)				$ 96.30
15	9763483GY		Gasket (gray)				$ 47.90
15	W10109740		Backsplash (white)				$ 90.41
16	WP9759944		Thrmstat, 60c Spst   (Replaces: 9759944)			Immediately	$ 135.08
17	9758799		Bracket, Ind. Lamp				$ 47.83
18	W10491985		Screw (2)   (Replaces: 3196160)			Immediately	$ 7.55
19	9759094		Spring, Locator				$ 7.39
20	9761783		Bracket, Rear Sprt		Appelez-nous	-
21	9757825		Rail, Element (2) (center (1))		Appelez-nous	-
21	9763517		Rail, Element (2) (side (3))				$ 62.80
22	WP486754		Screw   (Replaces: 246119)				$ 8.01
23	9761724		Cover, Cktp Rear				$ 35.73
24	8523739		Indicator Lamp, Hot Surface				$ 120.71
25	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
26	9762768		Clip, Retainer				$ 38.30
27	9761749WH		Glass, Backsplash (white)				$ 164.35
27	9761749BL		Glass, Backsplash (black)				$ 142.53
28	W10050270		Grommet (19mm)		Appelez-nous	-
29	W10050280		Grommet (38mm)		Appelez-nous	-
