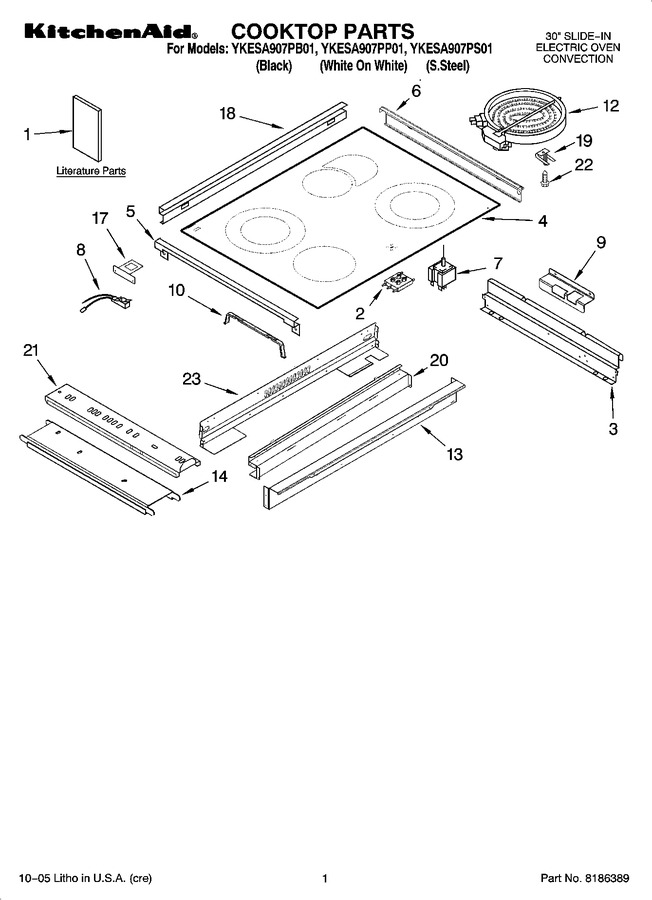

01 - Cooktop Parts
02 - Control Panel Parts
03 - Oven Parts
04 - Door And Drawer Parts
05 - Internal Oven Parts
06 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9757645 | Guide, Easy Set |
|
- | |||||
| 1 | 9757650 | Guide, Easy Set (canada) |
|
- | |||||
| 1 | 9762035 | Installation Instructions |
|
- | |||||
| 1 | 9757451 | Use & Care Guide |
|
- | |||||
| 1 | 9757456 | Use & Care Guide (french) |
|
- | |||||
| 1 | 9761075 | Tech Sheet |
|
- | |||||
| 1 | 9757680 | Anti-tip Instruct. |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips |
|
- | |||||
| 1 | 9759133 | Safer Cooking Tips |
|
- | |||||
| 2 | 8523739 | Light, Indicator |
|
$ 120.71 | |||||
| 3 | 4454023 | Bracket, Mounting |
|
- | |||||
| 3 | 3179776 | Screw |
|
- | |||||
| 4 | 9756450 | Gasket |
|
$ 107.73 | |||||
| 4 | 9759748BL | Cooktop (black) |
|
- | |||||
| 4 | 9759748WW | Cooktop (white) |
|
- | |||||
| 4 | 9759748BB | Cooktop (biscuit) |
|
- | |||||
| 4 | 9759748SS | Cooktop (s.steel) |
|
- | |||||
| 5 | 4453764 | Clip, Ceran (2) |
|
- | |||||
| 5 | 3179776 | Screw |
|
- | |||||
| 6 | 9759530SS | Trim-cktop, Si (s.steel Rh) |
|
- | |||||
| 6 | 9759530BL | Trim-cktop, Si (black Rh) |
|
- | |||||
| 6 | 9759530WH | Trim-cktop, Si (white Rh) |
|
- | |||||
| 6 | 9759531SS | Trim-cktop, Si (s.steel Lh) |
|
- | |||||
| 6 | 9759531BL | Trim-cktop, Si (black Lh) |
|
- | |||||
| 6 | 9759531WH | Trim-cktop, Si (white Lh) |
|
- | |||||
| 6 | 3179776 | Screw |
|
- | |||||
| 7 | 9760001 | Switch, Infinite (lf, Rr, Lr) |
|
- | |||||
| 7 | 9760000 | Switch, Infinite (rf) |
|
- | |||||
| 8 | 9756929 | Light, Indicator |
|
- | |||||
| 9 | 9757686 | Support (l.hand) |
|
$ 38.48 | |||||
| 9 | 9757687 | Support (r.hand) |
|
$ 38.36 | |||||
| 10 | 9756821 | Support, Wiring |
|
- | |||||
| 10 | WP4449809 | Screw (2) (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 12 | 4456507 | Element, Surface (1800/1000w) |
|
- | |||||
| 12 | W10823698 | Element, Surface (1800w - Rr) (Replaces: 8523696) |
|
Immediately | $ 195.12 | ||||
| 12 | W10823692 | Element, Surface (2500/1200w (2)) (Replaces: 4453909) |
|
Immediately | $ 227.59 | ||||
| 13 | 9757800 | Bracket, Front Support |
|
- | |||||
| 13 | 3179776 | Screw (4) |
|
- | |||||
| 14 | 9757825 | Rail, Element Center |
|
- | |||||
| 17 | W10491985 | Screw (2) (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 17 | 9758799 | Bracket, Ind. Lamp |
|
$ 47.83 | |||||
| 18 | 9760520BL | Trim, Cooktop Rear (black) |
|
- | |||||
| 18 | 9760520WH | Trim, Cooktop Rear (white) |
|
- | |||||
| 18 | 9760520SS | Trim. Cooktop Rear (s.steel) |
|
- | |||||
| 18 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 19 | 9759094 | Spring, Locator |
|
$ 7.39 | |||||
| 20 | 9759963 | Bracket, Rear Sprt |
|
- | |||||
| 20 | WP3196557 | Screw (4) (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 21 | 3179776 | Screw (4) |
|
- | |||||
| 21 | 8286585 | Rail, Element (2) |
|
- | |||||
| 22 | 3179776 | Screw |
|
- | |||||
| 23 | 3179776 | Screw (4) |
|
- | |||||
| 23 | 9761724 | Cover, Cktp Rear |
|
$ 35.73 |
