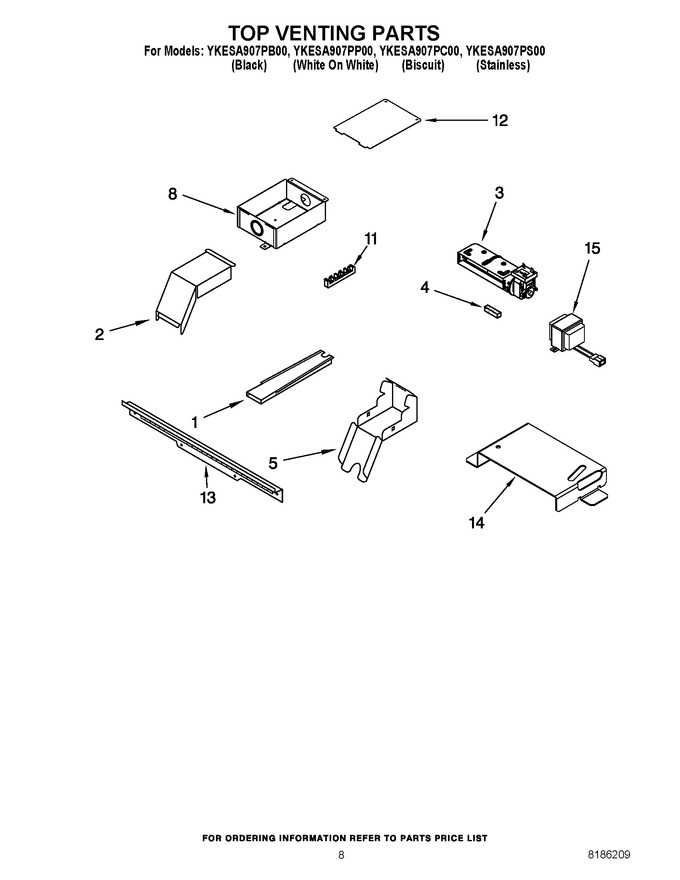

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts
03 - Oven Parts
04 - Door And Drawer Parts
05 - Internal Oven Parts
06 - Top Venting Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4451759 | Vent, Exhaust |
|
$ 105.01 | |||||
| 1 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 2 | 4455178 | Elbow, Vent Top |
|
$ 15.52 | |||||
| 3 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 3 | WP4455352 | Bracket (Replaces: 4455352) |
|
$ 37.51 | |||||
| 3 | W10810687 | Blower (Replaces: 8300223) |
|
Immediately | $ 343.34 | ||||
| 4 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 5 | 4455177 | Elbow, Vent Bottom |
|
$ 11.39 | |||||
| 8 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 8 | 9760003 | Box, Terminal |
|
- | |||||
| 11 | WP8203546 | Block, Terminal (Replaces: 4449868) |
|
Immediately | $ 30.13 | ||||
| 11 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 12 | 9759876 | Cover, Term Box |
|
$ 9.53 | |||||
| 12 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 13 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 8.30 | |||||
| 13 | 9757118BL | Vent, (control Panel) |
|
- | |||||
| 14 | 9757829 | Bracket, Transfrmr |
|
- | |||||
| 14 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 15 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 15 | 9756551 | Transformer |
|
$ 121.36 |
