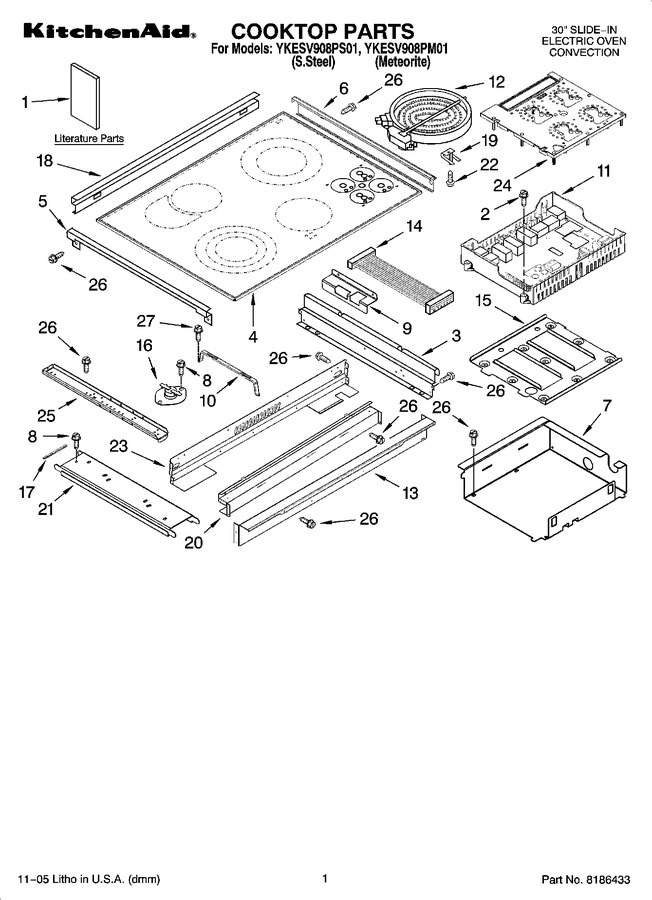

01 - Cooktop Parts


02 - Control Panel Parts


03 - Oven Parts


04 - Door And Drawer Parts


05 - Internal Oven Parts


06 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9757645		Guide, Easy Set		Appelez-nous	-
1	9757650		Guide, Easy Set (french)		Appelez-nous	-
1	9762035		Installation Instructions		Appelez-nous	-
1	9762265		Use & Care Guide		Appelez-nous	-
1	9762267		Use & Care Guide (french)		Appelez-nous	-
1	9761719		Tech Sheet		Appelez-nous	-
1	9757680		Anti-tip Instruct.		Appelez-nous	-
1	3191638		Safe Cooking Tips		Appelez-nous	-
1	9759133		Safecooking Tips		Appelez-nous	-
2	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
3	4454023		Bracket, Mounting		Appelez-nous	-
4	9758292SS		Cooktop (s.steel)				$ 402.61
4	9756450		Gasket				$ 107.73
5	4453764		Clip, Ceran (2)		Appelez-nous	-
6	9759531MT		Trim-cktop, Si (meteorite Lh)		Appelez-nous	-
6	9759530SS		Trim-cktop, Si (s.steel Rh)		Appelez-nous	-
6	9759530MT		Trim-cktop, Si (meteorite Rh)		Appelez-nous	-
6	9759531SS		Trim-cktop, Si (s.steel Lh)		Appelez-nous	-
7	9757814		Box, Touch Control		Appelez-nous	-
8	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
9	9757687		Support (r.hand)				$ 38.36
9	9757686		Support (l.hand)				$ 38.48
10	9756821		Support, Wiring		Appelez-nous	-
11	9756699		Seal, Foam		Appelez-nous	-
11	8285348		Board, Control				$ 321.25
12	4453908		Element, Surface (2300/1600/800w (rf))				$ 155.12
12	W10203295		Element, Surface (1800/1000w (lr))   (Replaces: 8285232)				$ 333.25
12	WP4453907		Element, Surface (1500w (lf))   (Replaces: 4453907)			Immediately	$ 299.00
12	4453910		Element, Surface (1900/950w (rr))				$ 142.33
13	9757800		Bracket, Front Support		Appelez-nous	-
14	W10155097		Cable Ass`y   (Replaces: 8285319)				$ 87.11
15	9757815		Support, Module				$ 43.94
16	WP9759944		Thermostat (spst) (60c)   (Replaces: 9759944)			Immediately	$ 135.08
17	WP4448444		Grommet   (Replaces: 4448444)				$ 7.85
18	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
18	9760520MT		Trim. Cooktop Rear (meteorite)		Appelez-nous	-
18	9760520SS		Trim. Cooktop Rear (s.steel)		Appelez-nous	-
19	9759094		Spring, Locator				$ 7.39
20	9759963		Bracket, Rear Sprt		Appelez-nous	-
21	9757825		Rail, Element (2) (center)		Appelez-nous	-
21	9757824		Rail, Element (2) (side)				$ 60.29
22	WP486754		Screw   (Replaces: 246119)				$ 8.01
23	9759625		Cover, Cktp Rear		Appelez-nous	-
24	WP9757063		Board, Control   (Replaces: 9757063)			Immediately	$ 437.49
25	8285962		Rail, Element		Appelez-nous	-
26	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
27	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
