SELECT A DIAGRAM

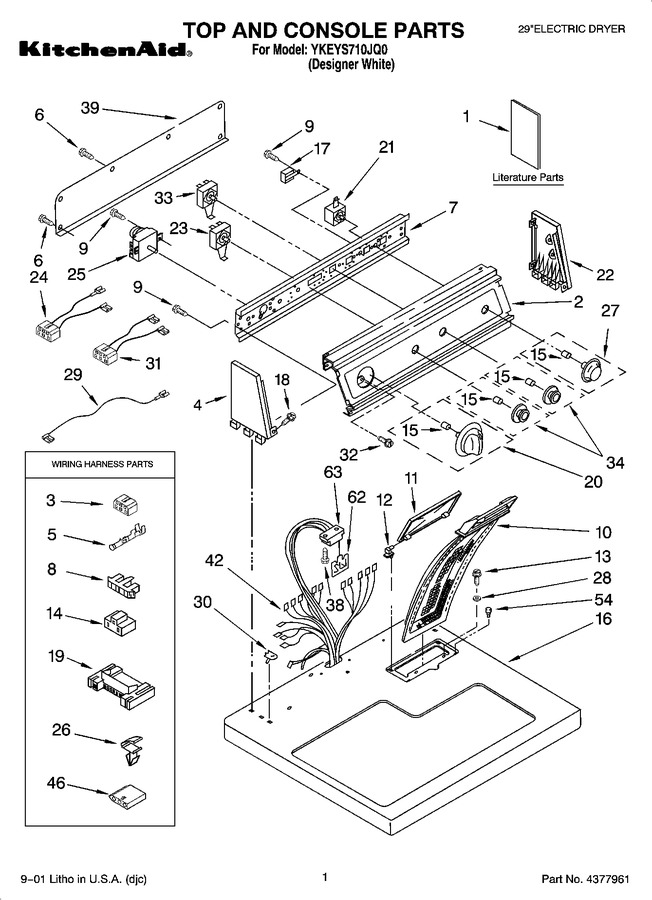

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3397620 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT3405636 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT8299795 | Literature Parts (label, Wiring Diagram) |
|
- | |||||
| 1 | LIT3978731 | Literature Parts (label, Energy Guide) |
|
- | |||||
| 2 | 3977972 | Panel, Control |
|
- | |||||
| 3 | 3347243 | Connector 6-circuit |
|
- | |||||
| 4 | 8274353 | End Cap (l.h.) |
|
- | |||||
| 5 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.25 | |||||
| 6 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 7 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 8 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 9 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 7.23 | |||||
| 10 | WP349639 | Screen, Lint (Replaces: 349639) |
|
Immediately | $ 41.46 | ||||
| 11 | 8283378 | Cover, Lint Screen |
|
$ 44.80 | |||||
| 12 | WPW10044470 | Hinge, Lint Lid (r.h.) (Replaces: 3978605) |
|
$ 7.30 | |||||
| 12 | WPW10044480 | Hinge, Lint Lid (l.h.) (Replaces: 3978606) |
|
$ 7.30 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | 3401144 | Connector (relay/buzzer) |
|
$ 11.53 | |||||
| 15 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 7.38 | ||||
| 16 | 8274386 | Top |
|
- | |||||
| 17 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 120.65 | |||||
| 18 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.36 | |||||
| 19 | 3395683 | Housing Connector |
|
Immediately | $ 49.01 | ||||
| 20 | 3405299 | Knob, Timer |
|
$ 24.31 | |||||
| 21 | WP3398094 | Switch, Push-to-start (Replaces: 3398094) |
|
Immediately | $ 116.45 | ||||
| 22 | 8274349 | Cap End (r.h.) |
|
- | |||||
| 23 | WP3399639 | Switch, Temperature (Replaces: 3399639) |
|
Immediately | $ 118.04 | ||||
| 24 | 3401695 | Wire, Jumper (tan/black) |
|
- | |||||
| 25 | WP3976570 | Timer, 60 Hz. (Replaces: 3976570) |
|
$ 347.92 | |||||
| 26 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.36 | |||||
| 27 | 3405992 | Knob, Push-to-start |
|
- | |||||
| 28 | 237446 | Washer |
|
- | |||||
| 29 | 3401671 | Jumper, Wire (white) |
|
- | |||||
| 30 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 6.98 | |||||
| 31 | 8539893 | Wire, Jumper (temperature) (Replaces: 3396029) |
|
$ 17.80 | |||||
| 32 | 3400859 | Screw, Grounding (8-18 X 7/32) |
|
$ 12.49 | |||||
| 33 | 3399638 | Switch, Signal |
|
$ 122.62 | |||||
| 34 | 3949700 | Knob, Control (2) |
|
- | |||||
| 38 | WP33001882 | Screw, 8-18 X 1/2 (Replaces: 337686) |
|
$ 75.34 | |||||
| 39 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 121.78 | |||||
| 42 | 3394323 | Harness, Electric |
|
- | |||||
| 46 | 3936144 | Connector |
|
$ 19.10 | |||||
| 54 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 62 | WPW10476828 | Control, Electronic (Replaces: 3390537) |
|
Immediately | $ 296.94 | ||||
| 63 | 4392065 | Kit, Dryer Repair (Replaces: 279948) |
|
Immediately | $ 60.01 | ||||
| 63 | 3406839 | Dry Rack |
|
Immediately | $ 59.11 | ||||
| 63 | 3391885 | Connector, Edge |
|
$ 81.65 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White (Replaces: 350930) |
|
Immediately | $ 36.11 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- |
