SELECT A DIAGRAM

01 - Cabinet Parts

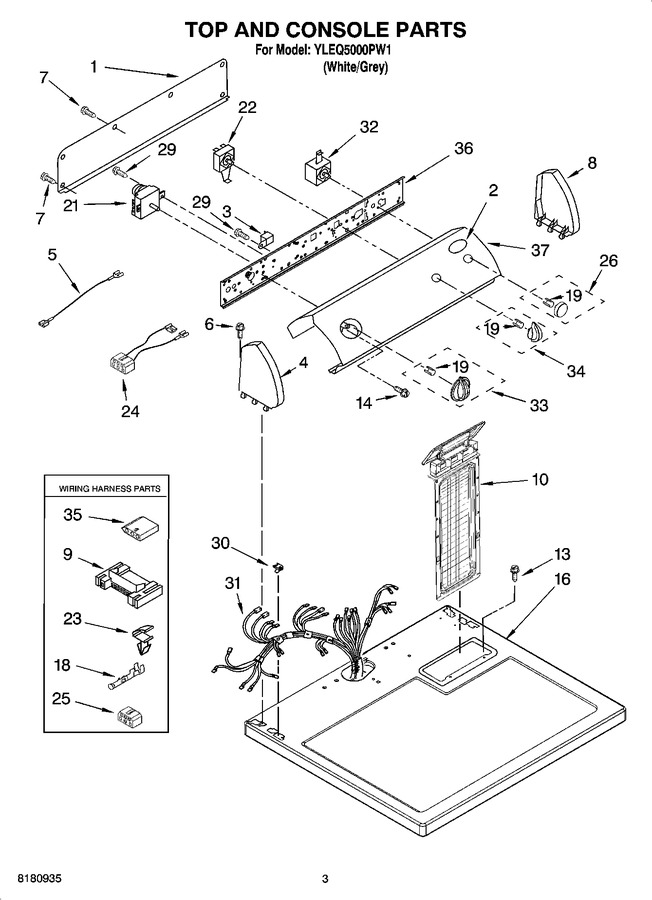

02 - Top And Console Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
2	3400985		Medallion		Appelez-nous	-
3	WP694419		Buzzer   (Replaces: 694419)				$ 134.05
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	3401674		Jumper, Wire (black)				$ 34.37
6	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
7	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	3395683		Housing, Connector (motor)			Immediately	$ 54.45
10	W11778253		Screen, Lint   (Replaces: 8557857)			Immediately	$ 54.63
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
16	8557930		Top		Appelez-nous	-
18	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
19	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
21	WP8299778		Timer, 60 Hz.   (Replaces: 8299778)			Immediately	$ 232.09
22	3405152		Switch, End Of Cycle				$ 131.07
23	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
24	8283292		Wire, Jumper (guard On/off)		Appelez-nous	-
25	3347243		Connector 6-circuit		Appelez-nous	-
26	WP8544941		Knob, Push-to-start   (Replaces: 8544941)				$ 101.62
29	WP90767		Screw 8-18 X 19/64   (Replaces: 8533971)			Immediately	$ 8.25
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	8299870		Harness, Wiring				$ 58.16
32	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
33	8544957		Timer Knob Assembly				$ 41.86
34	8544937		Knob, Control				$ 24.98
35	3936144		Connector				$ 21.22
36	8544895		Bracket, Control		Appelez-nous	-
37	8546012		Panel, Control (includes Illus. 2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
