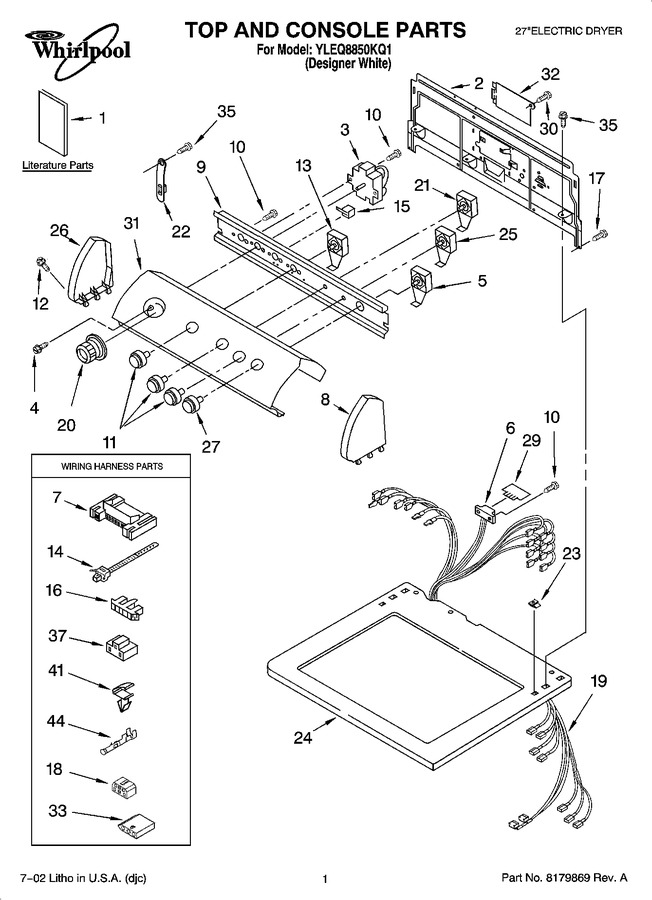

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8528146		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT677818		Literature Parts (manual, Do-it- Yourself Repair (dryer))		Appelez-nous	-
1	LIT3979172		Literature Parts (instructions Installation)		Appelez-nous	-
1	LIT3978733		Literature Parts (label, Energy Guide)		Appelez-nous	-
1	LIT8299802		Literature Parts (label, Wiring Diagram)		Appelez-nous	-
2	285909		Panel, Rear Console   (Replaces: 8317305)				$ 261.42
3	WP3406725		Timer, 60 Hz.   (Replaces: 3406725)				$ 387.01
4	3400859		Screw, Grounding (8-18 X 7/32)				$ 13.88
5	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 129.39
6	3391885		Connector, Edge				$ 90.72
7	3395683		Connector (motor)			Immediately	$ 54.45
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	8271316		Bracket, Control		Appelez-nous	-
10	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
11	WP3957799		Knob, Control (3)   (Replaces: 8271339)				$ 55.06
12	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
13	8528330		Switch, Temperature				$ 234.90
14	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
15	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
16	3397269		Connector, Timer				$ 25.55
17	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
18	3347243		Connector 6-circuit		Appelez-nous	-
19	8529980		Harness, Electric		Appelez-nous	-
20	WP3957754		Timer Knob Assembly   (Replaces: 8312687)				$ 62.86
21	3405154		Switch, Finish Guard				$ 160.52
22	WP8568314		Strap, Console   (Replaces: 8318255)				$ 8.17
23	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
24	8271399		Top		Appelez-nous	-
25	3405152		Switch, End Of Cycle				$ 131.07
26	8271365		Cap, End (l.h.)		Appelez-nous	-
27	3957804		Knob, Push To Start   (Replaces: 8271341)				$ 52.89
29	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 329.93
30	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 8.25
31	3978118		Panel, Control		Appelez-nous	-
32	WPW10119283		Cover, Terminal Block   (Replaces: 8317342)				$ 134.77
33	3936144		Connector				$ 21.22
35	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
37	3401144		Connector, (pts Relay)				$ 12.81
41	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
44	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
