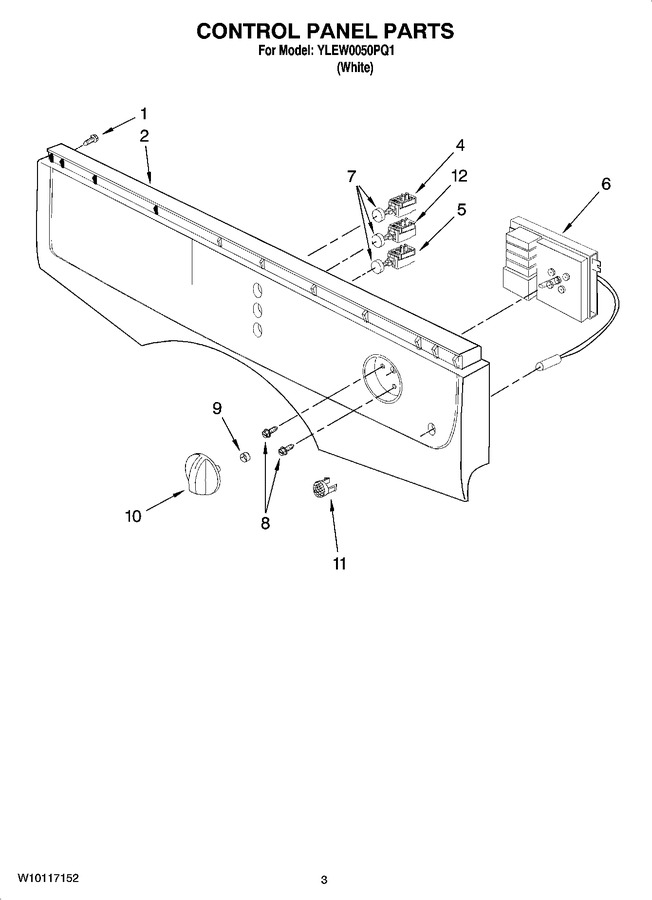

02 - Control Panel Parts
03 - Drum And Motor Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (Replaces: 8182338) |
|
Immediately | $ 14.72 | ||||
| 2 | 280109 | Kit, Control Panel (includes Items 4, 5 & 12) |
|
$ 467.05 | |||||
| 4 | 280110 | Switch & Button Assembly (start) |
|
$ 190.49 | |||||
| 5 | 280112 | Switch & Button Assembly (on/off) |
|
$ 235.80 | |||||
| 6 | 8182522 | Timer & Indicator Light Assembly (indicator Light Not Serviced Separately) |
|
$ 900.12 | |||||
| 7 | 8182575 | Button, Push |
|
$ 30.77 | |||||
| 8 | W11245710 | Screw, Timer (Replaces: 8182323) |
|
Immediately | $ 14.75 | ||||
| 9 | WP8182361 | Clip, Knob (Replaces: 8182361) |
|
$ 143.38 | |||||
| 10 | 8182519 | Knob |
|
$ 113.25 | |||||
| 11 | 8182532 | Lens, Indicator |
|
$ 100.04 | |||||
| 12 | 280111 | Switch & Button Assembly (temperature) |
|
$ 194.51 |
