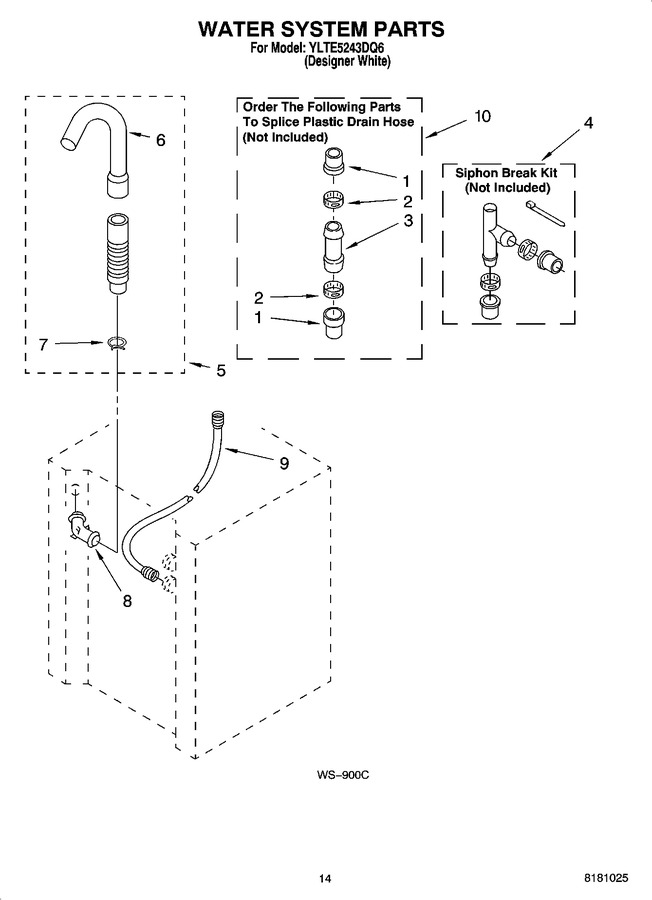

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	285321		Sleeve Kit, Plastic Drain Hose (contains 2 Sleeves)				$ 79.30
2	WP285655		Clamp, Hose (2)   (Replaces: 65349)			Immediately	$ 7.93
3	WP16272		Connector Straight   (Replaces: 16272)				$ 7.39
4	76660		Siphon Break Kit (not Included)   (Replaces: 285320)			Immediately	$ 125.92
5	285664		Hose, Corrugated Plastic Drain (5-1/2 Ft.)   (Replaces: 661575)			Immediately	$ 37.88
5	285666		Hose, Corrugated Plastic Drain (10 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 98.08
5	WPW10108350		Hose, Corrugated Plastic Drain (6 1/2 Ft.) (for Fsou & Twin-twin)   (Replaces: 8066182)				$ 85.47
6	WP3357027		Nozzle-drain Hose   (Replaces: 3357027)				$ 88.07
7	WP3357331		Clamp, Hose   (Replaces: 3357331)				$ 7.37
8	W11213338		Connector, Hose   (Replaces: 356739)				$ 66.72
9	WP89503		Hose, Inlet (2)   (Replaces: 3354858)			Immediately	$ 21.68
10	285442		Connector Kit, Plastic Drain Hose				$ 88.85
