| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WP660658 |
 |
Clamp, Motor Mounting (2) (Replaces: 660658) |
|
|
|
$ 7.40 |
|
|
| 2 |
279811 |
 |
Motor, Main Drive (60 Hz.) (Replaces: 8538266) |
|
|
Immediately |
$ 349.75 |
|
|
| 3 |
3398948 |
|
Wire, Jumper |
|
|
|
$ 58.19 |
|
|
| 4 |
279782 |
 |
Switch, Broken Belt (Replaces: 3394881) |
|
|
Immediately |
$ 52.57 |
|
|
| 5 |
W11107903 |
|
Bracket, Motor (Replaces: 3388858) |
|
|
|
$ 50.96 |
|
|
| 6 |
3389847 |
|
Panel, Rear |
|
Appelez-nous
|
- |
|
|
|
| 7 |
WP681414 |
 |
Screw,10-16 X 1/2 (Replaces: 343641) |
|
|
Immediately |
$ 7.62 |
|
|
| 8 |
3393717 |
|
Bracket, Spacer |
|
Appelez-nous
|
- |
|
|
|
| 10 |
3389264 |
|
Panel, Side (l.h.) |
|
|
|
$ 315.74 |
|
|
| 10 |
3389256 |
|
Panel, Side (r.h.) |
|
|
|
$ 311.28 |
|
|
| 11 |
687000 |
|
Strain-relief |
|
|
|
$ 74.43 |
|
|
| 12 |
61255 |
 |
Power Cord (Replaces: 3393639) |
|
|
Immediately |
$ 61.11 |
|
|
| 13 |
WP308685 |
 |
Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
|
Immediately |
$ 7.08 |
|
|
| 14 |
3394081 |
|
Wire, Broken Belt Switch |
|
|
|
$ 37.57 |
|
|
| 15 |
3389231 |
|
Clip, Front Panel (2) |
|
|
|
$ 11.95 |
|
|
| 16 |
WP98234 |
 |
Clip, Ground (Replaces: 98234) |
|
|
Immediately |
$ 10.76 |
|
|
| 17 |
W11100260 |
|
Bracket, Bulkhead (Replaces: 3391639) |
|
|
|
$ 18.43 |
|
|
| 18 |
WP233520 |
 |
Washer, Thrust (Replaces: 233520) |
|
|
Immediately |
$ 7.52 |
|
|
| 19 |
WPW10512946 |
 |
Tri-ring (Replaces: 690997) |
|
|
Immediately |
$ 8.71 |
|
|
| 20 |
661570V |
 |
Belt, Drive (Replaces: 3387610) |
|
|
Immediately |
$ 29.53 |
|
|
| 21 |
279811 |
|
Pulley, Motor (60 Hz.) (Replaces: 3391087) |
|
|
Immediately |
$ 349.75 |
|
|
| 22 |
WPW10547294 |
 |
Bracket, Idler (Replaces: 3389332) |
|
|
Immediately |
$ 46.36 |
|
|
| 23 |
W10850756 |
|
Screw, Ground (10-32 X 1/2) (Replaces: 8533974) |
|
|
|
$ 7.38 |
|
|
| 24 |
3390026 |
|
Base, Dryer |
|
|
|
$ 19.49 |
|
|
| 25 |
WPW10446781 |
 |
Spring, Idler (Replaces: 3387374) |
|
|
Immediately |
$ 23.22 |
|
|
| 26 |
3389683 |
 |
Cove, Transition Panel (black) |
|
|
|
$ 116.96 |
|
|
| 27 |
3389272 |
 |
Panel, Transition |
|
|
|
$ 239.27 |
|
|
| 28 |
3389537 |
|
Top, Dryer |
|
Appelez-nous
|
- |
|
|
|
| 30 |
3389682 |
|
Spacer (2) |
|
|
|
$ 8.31 |
|
|
| 31 |
3393721 |
|
Bracket, Terminal Block (Replaces: 3393722) |
|
|
|
$ 20.20 |
|
|
| 32 |
WP3389431 |
|
Bumper, Lid Stop (Replaces: 3389431) |
|
|
|
$ 10.74 |
|
|
| 33 |
WP3390631 |
 |
Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
|
|
$ 7.43 |
|
|
| 34 |
WP273556 |
 |
Screw, 10-16 X 5/8 (Replaces: 3387485) |
|
|
Immediately |
$ 7.59 |
|
|
| 35 |
WP98129 |
|
Screw, 6/20 X 1 1/16 (Replaces: 98129) |
|
|
|
$ 7.36 |
|
|
| 36 |
WP3397659 |
 |
Block, Terminal (Replaces: 3397659) |
|
|
|
$ 21.75 |
|
|
| 38 |
WP3389420 |
 |
Bolt, Shoulder (Replaces: 3389420) |
|
|
|
$ 7.76 |
|
|
| 39 |
279640 |
 |
Pulley, Idler (Replaces: 3388672) |
|
|
Immediately |
$ 29.26 |
|
|
| 43 |
3394743 |
|
Pin, Roll |
|
Appelez-nous
|
- |
|
|
|
| 44 |
WP692400 |
 |
Nut, Push-in (Replaces: 692400) |
|
|
Immediately |
$ 7.22 |
|
|
| 47 |
WP693304 |
 |
Screw And Washer (Replaces: 693304) |
|
|
|
$ 7.60 |
|
|
| 49 |
3390722 |
|
Shield-console To Drum |
|
Appelez-nous
|
- |
|
|
|
| 50 |
279393 |
 |
Screw Kit (for Terminal Block) |
|
|
Immediately |
$ 50.09 |
|
|
| 51 |
279318 |
 |
Terminal, Tinned & Brass (3) |
|
|
Immediately |
$ 95.44 |
|
|
| 52 |
WP8066120 |
 |
Lever, Snap Switch (Replaces: 8066120) |
|
|
Immediately |
$ 31.29 |
|
|

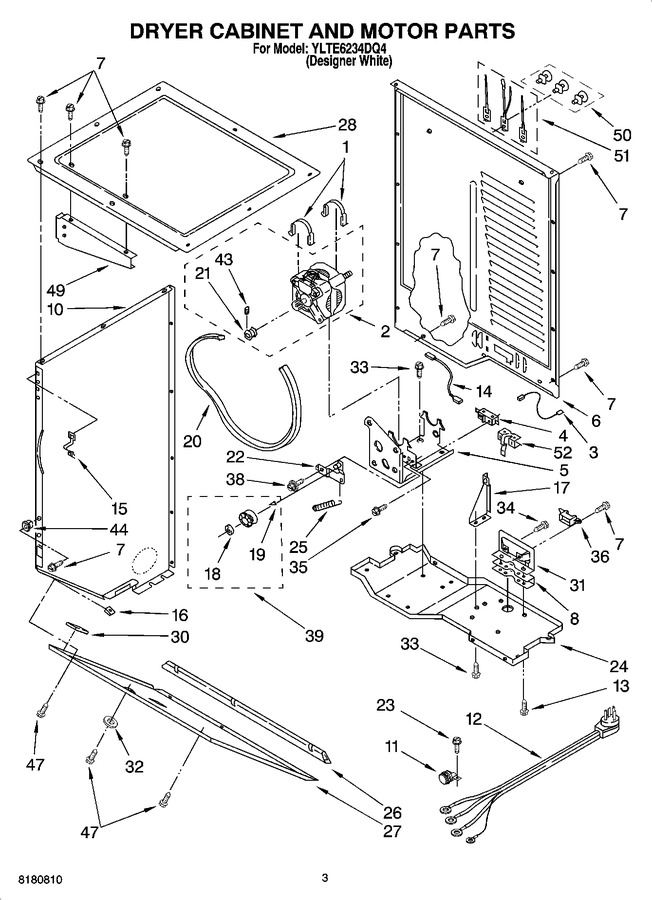

View Diagram in Separate Window
