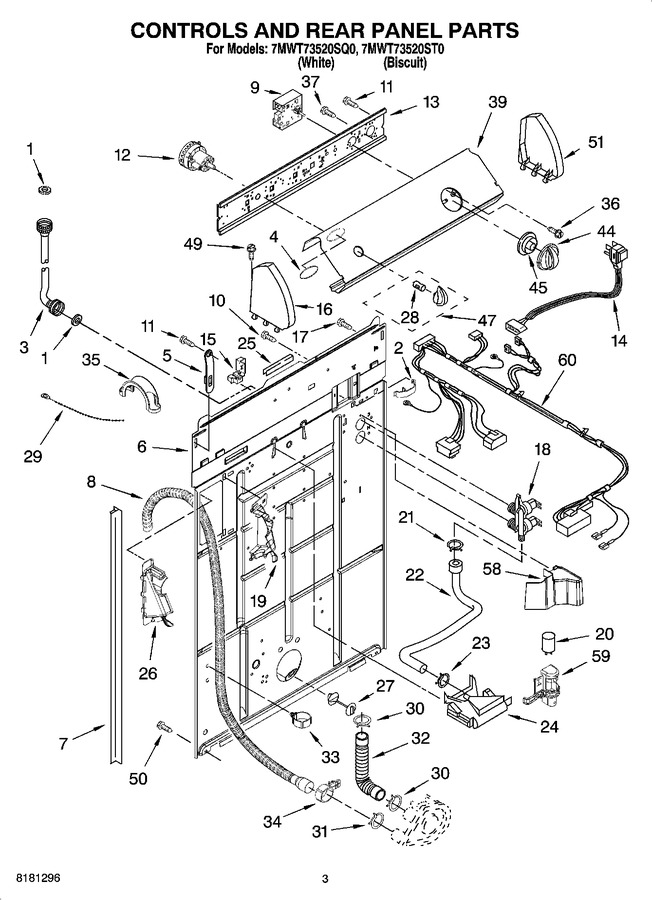

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (2) (1-1/16 X 5/8) (Replaces: 3976300) |
|
$ 7.70 | |||||
| 2 | 3349557 | Retainer, Harness |
|
- | |||||
| 3 | WP89503 | Hose, Water Inlet (Replaces: 8571377) |
|
Immediately | $ 24.09 | ||||
| 4 | 3400985 | Medallion |
|
- | |||||
| 5 | WP8568314 | Strap, Console (2) (Replaces: 8568314) |
|
$ 7.78 | |||||
| 6 | 8541686 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 26.26 | |||||
| 8 | WPW10096921 | Hose, Drain Assembly (includes Items 33 & 34) (Replaces: 8559373) |
|
Immediately | $ 67.38 | ||||
| 9 | 8542377 | Timer, Control (50 Hz.) (motor Not A Service Part) |
|
- | |||||
| 10 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 11 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 12 | W10820051 | Switch, Water Level (Replaces: 3366848) |
|
Immediately | $ 169.68 | ||||
| 13 | 3948814 | Bracket, Control |
|
- | |||||
| 14 | WP8559419 | Cord, Power (Replaces: 8559419) |
|
$ 124.41 | |||||
| 15 | 8559337 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 8271363 | Cap, End (l.h.) (white) |
|
- | |||||
| 16 | 8314852 | Cap, End (l.h.) (biscuit) |
|
- | |||||
| 17 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.95 | ||||
| 18 | 8541697 | Valve, Water Inlet-single Port |
|
- | |||||
| 19 | WPW10096921 | Bucket, Drain Hose (left Half) (Replaces: 8541669) |
|
Immediately | $ 67.38 | ||||
| 20 | WP8572717 | Capacitor (Replaces: 8572717) |
|
Immediately | $ 80.14 | ||||
| 21 | WP596669 | Clamp, Hose (Replaces: 301958) |
|
Immediately | $ 8.40 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 8541607) |
|
Immediately | $ 24.78 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 370450) |
|
Immediately | $ 8.40 | ||||
| 24 | WP3347034 | Break, Vacuum (Replaces: 3347034) |
|
Immediately | $ 75.28 | ||||
| 25 | 303294 | Edge Protector |
|
- | |||||
| 26 | WPW10096921 | Bucket, Drain Hose (right Half) (Replaces: 8541658) |
|
Immediately | $ 67.38 | ||||
| 27 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 18.90 | ||||
| 28 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 29 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 7.90 | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.81 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.39 | ||||
| 32 | 285871 | Hose, Pump To Tub (Replaces: 3951449) |
|
Immediately | $ 26.68 | ||||
| 33 | 8541667 | Clamp, Hose |
|
$ 5.86 | |||||
| 34 | 8541668 | Clamp, Leg |
|
$ 21.26 | |||||
| 35 | WP8577378 | U-bend, Drain Hose (Replaces: 8577378) |
|
$ 7.97 | |||||
| 36 | WP3400818 | Screw, Timer Mounting (Replaces: 3400818) |
|
$ 7.96 | |||||
| 37 | 3400073 | Screw, Ground |
|
- | |||||
| 39 | 8543005 | Panel, Console (includes Item 4) (biscuit) |
|
- | |||||
| 39 | 8543004 | Panel, Console (includes Item 4) (white) |
|
- | |||||
| 44 | W10034740 | Knob, Timer (biscuit) (Replaces: 8566025) |
|
$ 87.62 | |||||
| 44 | WP8566022 | Knob, Timer (white) (Replaces: 8566022) |
|
$ 63.41 | |||||
| 45 | WP8566018 | Dial, Timer (Replaces: 8566018) |
|
$ 51.04 | |||||
| 47 | 8565947 | Knob, Control (biscuit) |
|
$ 23.66 | |||||
| 47 | 8565944 | Knob, Control (white) |
|
$ 25.10 | |||||
| 49 | WP388326 | Screw, 8-18 X 1.25 (panel To Top) (Replaces: 388326) |
|
$ 8.11 | |||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.82 | |||||
| 51 | 8314851 | Cap, End (r.h.) (biscuit) |
|
- | |||||
| 51 | 8271369 | Cap, End (r.h.) (white) |
|
- | |||||
| 58 | 8314879 | Shield, Inlet Valve |
|
- | |||||
| 59 | 8318046 | Clip, Capacitor |
|
$ 79.31 | |||||
| 60 | 3956737 | Harness, Wiring (for Detail See Pages 9 & 10) |
|
- |
