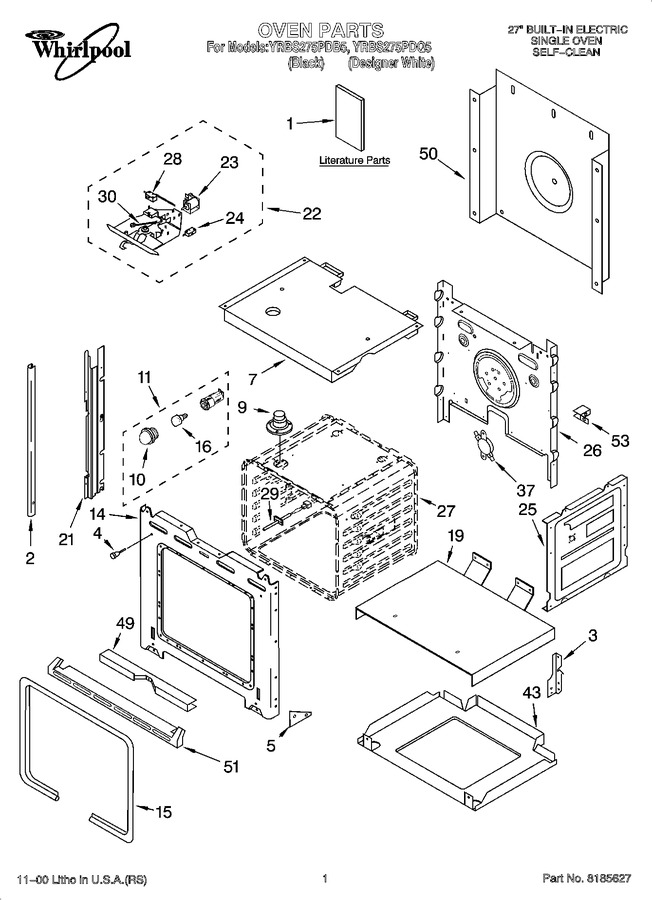

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4450568		Literature Parts (use & Care Guide (english))		Appelez-nous	-
1	LIT4451885		Literature Parts (tech Sheet (oven))		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT4450413		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT4448685		Literature Parts (use & Care Guide (french))		Appelez-nous	-
2	4450844		Trim, Side (rh Black)		Appelez-nous	-
2	4450848		Trim, Side (lh White Screw)		Appelez-nous	-
2	4450847		Trim, Side (lh Black)		Appelez-nous	-
2	WP8281236		Trim, Side (black Model)   (Replaces: 4449747)				$ 8.16
2	4449041		Trim, Side (white)				$ 5.27
2	4450845		Trim, Side (rh White)		Appelez-nous	-
3	4455723		Hinge Receiver (right Hand)				$ 37.24
3	4455722		Hinge Receiver (left Hand)				$ 37.47
4	4448520		Bumper, Door				$ 22.25
5	WP4455509		Bracket, Support   (Replaces: 4455509)				$ 94.01
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4455285		Top, Chassis		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
9	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Oven Light Assy		Appelez-nous	-
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	4451739		Frame, Front		Appelez-nous	-
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 185.61
16	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	4451477		Support, Insulation		Appelez-nous	-
21	WP4448444		Grommet   (Replaces: 4448444)				$ 7.85
21	814371		Rail, Side (right Side)   (Replaces: 4450579)				$ 127.79
21	814372		Rail, Side (left Side)   (Replaces: 4450580)				$ 126.74
21	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
22	4451896		Latch Assy				$ 163.41
23	4452224		Solenoid		Appelez-nous	-
24	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
24	4452312		Microswitch N.c.				$ 90.43
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452233		Back, Chassis		Appelez-nous	-
28	4451426		Switch, Micro		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
30	4451537		Spring, Latch		Appelez-nous	-
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 4451442)			Immediately	$ 55.44
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4455529		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
51	4448476		Trim, Bottom (white Model)		Appelez-nous	-
51	4448475		Trim, Bottom (black Model)		Appelez-nous	-
51	4159465		Screw		Appelez-nous	-
53	4449845		Support, Bracket		Appelez-nous	-
53	4449315		Insulation, Wrap				$ 64.81
53	4450364		Insulation, Back		Appelez-nous	-
53	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
