SELECT A DIAGRAM

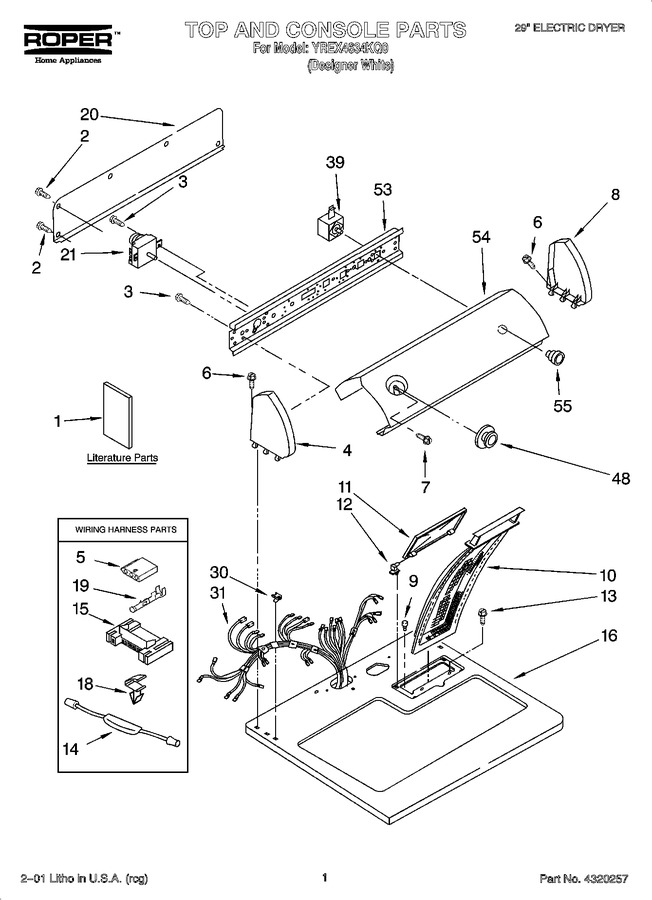

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3406689		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT677818		Literature Parts (dryer)		Appelez-nous	-
1	LIT3978913		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT3397620		Literature Parts (installation Instructions)		Appelez-nous	-
2	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
3	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
4	279960		Cap, End (l.h.)   (Replaces: 8274437)				$ 87.57
5	3936144		Connector				$ 21.22
6	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
7	3400859		Screw, Grounding (8-18 X 7/32)				$ 13.88
8	279960		Cap, End (r.h.)   (Replaces: 8274434)				$ 87.57
9	297535		Bumper, Lint Lid		Appelez-nous	-
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 41.91
11	8283378		Cover, Lint Screen				$ 44.80
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 8.11
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 8.11
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	279872		Resistor Assembly   (Replaces: 3401076)				$ 78.69
15	3395683		Connector (motor)			Immediately	$ 54.45
16	8271390		Top		Appelez-nous	-
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
19	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
20	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
21	WP8299764		Timer, 60 Hz.   (Replaces: 8299764)				$ 372.39
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	3394316		Harness, Wiring		Appelez-nous	-
39	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
48	8274380		Timer Knob Assembly		Appelez-nous	-
53	8271418		Bracket, Control				$ 57.15
54	3977926		Panel, Control		Appelez-nous	-
55	WP3957800		Knob, Push-to-start   (Replaces: 8274376)				$ 52.92

    View Diagram in Separate Window       Print Part List
