01 - Cooktop Parts

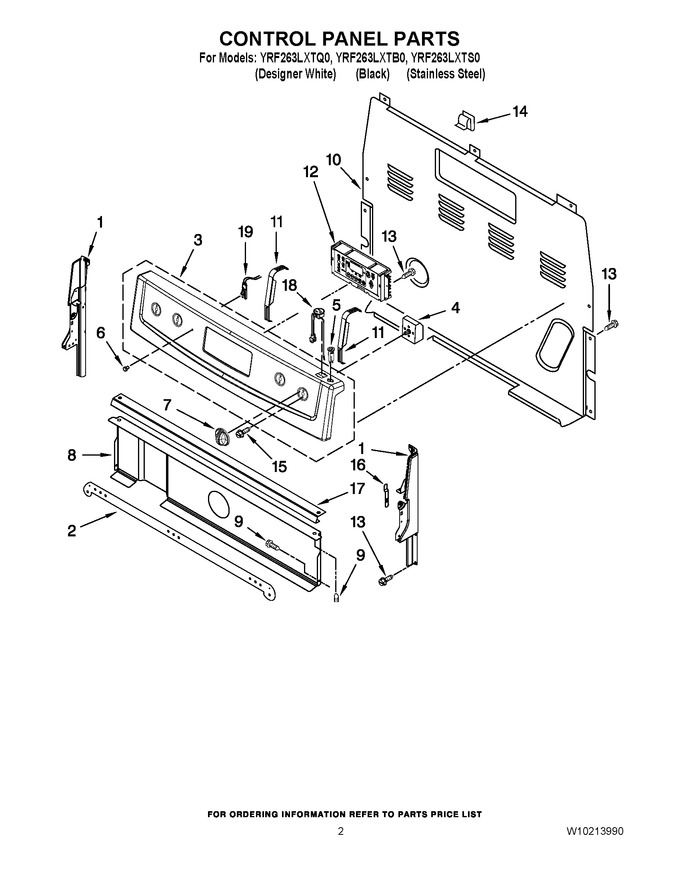

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 1 | W11219665 | Endcap (black Right Hand) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 1 | W11219664 | Endcap (black Left Hand) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 2 | 9780585 | Guard, Wire |
|
$ 35.21 | |||||
| 3 | W10170640 | Panel, Console (stainless Steel) |
|
$ 147.54 | |||||
| 3 | W10170639 | Panel, Console (black) |
|
$ 93.83 | |||||
| 3 | W10170638 | Panel, Console (white) |
|
$ 90.22 | |||||
| 4 | WP3400882 | Screw (8) (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 4 | WP3149400 | Switch, Infinite (right Rear) (Replaces: 3148954) |
|
Immediately | $ 90.51 | ||||
| 4 | WP3148952 | Switch, Infinite (right Front) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 5 | WP9757601 | Breaker, Circuit (15 Amp) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | WP9761964 | Knob, Infinite (4) (black) (Replaces: 9761964) |
|
Immediately | $ 22.30 | ||||
| 7 | WP9761962 | Knob, Infinite (4) (white) (Replaces: 9761962) |
|
Immediately | $ 20.65 | ||||
| 8 | 8053912 | Shield, Heat |
|
$ 34.55 | |||||
| 9 | 3196166 | Screw |
|
$ 7.36 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | 9762078 | Brkt, Mntg Eoc |
|
$ 38.13 | |||||
| 12 | WPW10476691 | Control, Range (white) (Replaces: W10173510) |
|
$ 372.90 | |||||
| 12 | WPW10476691 | Control, Range (black) (Replaces: W10173511) |
|
$ 372.90 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.66 | |||||
| 15 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 16 | 3196200 | Clip, Spring (2) |
|
$ 10.45 | |||||
| 17 | W10525121 | Brkt-mntg Console (Replaces: W10182322) |
|
$ 98.85 | |||||
| 18 | W10849725 | Receptacle, Fuse (white) (Replaces: W10203476) |
|
Immediately | $ 80.79 | ||||
| 18 | W10861164 | Receptacle, Fuse (black) (Replaces: W10203475) |
|
Immediately | $ 18.47 | ||||
| 19 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 86.31 |
