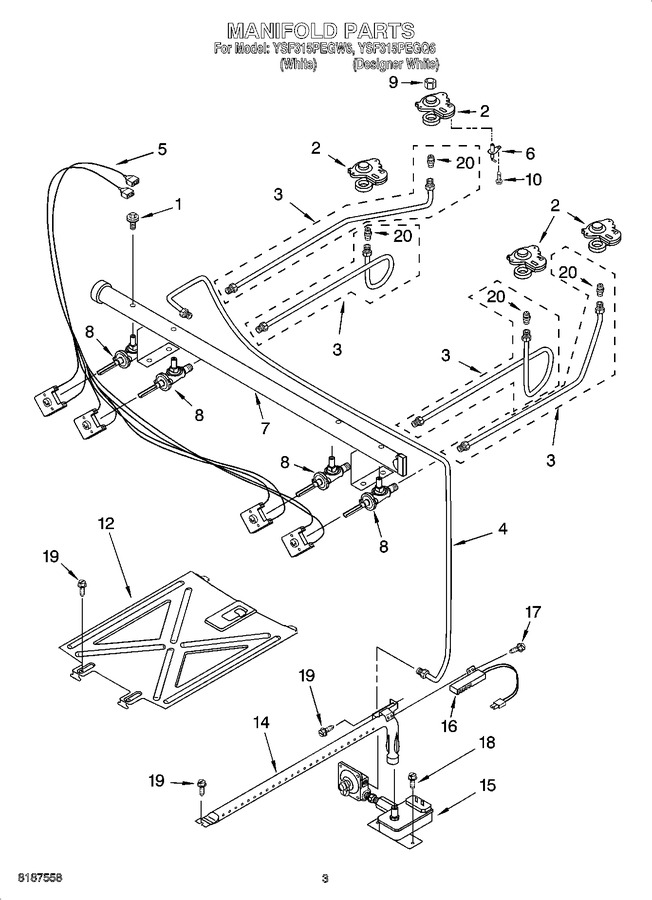

03 - Manifold Parts


04 - Chassis Parts


05 - Broiler Parts


06 - Door Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8273096		Screw, Valve (4)				$ 5.27
2	8273701		Burner Base (small (1))				$ 28.60
2	WP8273700		Burner Base (large (3))   (Replaces: 8273700)				$ 93.41
3	8273693		Tubing, Burner W/orifice (lf)				$ 77.81
3	8273697		Tubing, Burner W/orifice (rr)				$ 78.99
3	8273695		Tubing, Burner W/orifice (rf)				$ 76.19
3	8273698		Tubing, Burner W/orifice (lr)		Appelez-nous	-
4	8273131		Tubing (manifold To Regulator)		Appelez-nous	-
5	8273075		Harness, Igniter (incl. Switches)				$ 86.74
6	WP8523793		Electrode (4)   (Replaces: 8273061)			Immediately	$ 40.17
7	8272411		Pipe, Manifold		Appelez-nous	-
8	WP9757218		Valve (lf, Lr, Rf)   (Replaces: 8272976)				$ 269.16
8	8273004		Valve (rr)				$ 122.16
9	8273060		Nut (4)				$ 5.27
10	WP8273062		Screw (4)   (Replaces: 8273062)			Immediately	$ 7.91
12	8053970		Spreader, Flame		Appelez-nous	-
14	3186476		Burner, Bake/broil		Appelez-nous	-
15	3195008		Valve, Gas Combo				$ 207.46
16	WP3186491		Igniter, Bake/broil   (Replaces: 3186491)				$ 217.51
17	W11684507		Screw   (Replaces: 3196385)				$ 14.27
18	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
19	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
20	8273176		Spuds, Lp Gas (kit Of 4)				$ 43.85
20	WP8273064		Orifice, Burner (lf)   (Replaces: 8273064)				$ 95.11
20	WP8273066		Orifice, Burner (lr)   (Replaces: 8273066)				$ 95.41
20	WP8273065		Orifice, Burner (rf)   (Replaces: 8273065)				$ 95.11
20	WP8273067		Orifice, Burner (rr)   (Replaces: 8273067)				$ 95.41
