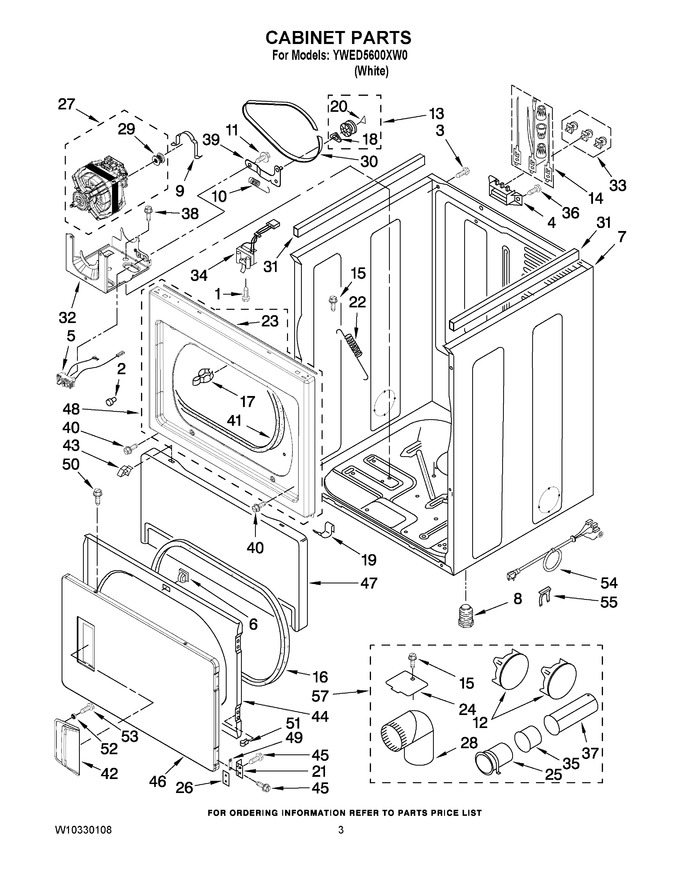

02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 7.71 | |||||
| 2 | 693152 | Bumper |
|
$ 10.36 | |||||
| 3 | WP90767 | Screw, Ground (Replaces: 3348629) |
|
Immediately | $ 7.43 | ||||
| 4 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 21.75 | |||||
| 5 | WPW10411937 | Switch, Broken (belt) (Replaces: W10246525) |
|
Immediately | $ 32.45 | ||||
| 6 | 279570 | Door Catch Assembly (Replaces: 3392538) |
|
Immediately | $ 8.00 | ||||
| 7 | W11417441 | Cabinet (Replaces: 8310656) |
|
$ 396.15 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 9 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.40 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 23.22 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 7.76 | |||||
| 12 | WPW10404617 | Plug, Multivent (Replaces: 49252) |
|
$ 68.02 | |||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 29.26 | ||||
| 14 | 279318 | Terminal, Brass & Tinned (3) (includes Illus. 33) |
|
Immediately | $ 95.44 | ||||
| 15 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 7.23 | |||||
| 16 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 123.42 | |||||
| 17 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 18 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 9.14 | ||||
| 19 | WPW10291934 | Clip (2) (Replaces: W10291934) |
|
$ 7.33 | |||||
| 20 | WPW10121334 | Washer (Replaces: W10121334) |
|
Immediately | $ 6.80 | ||||
| 21 | W11175815 | Hinge & Pin Assembly (Replaces: 3389247) |
|
$ 76.93 | |||||
| 22 | W10236068 | Bracket, Cabinet |
|
$ 22.02 | |||||
| 23 | W10312811 | Foam Seal |
|
$ 60.96 | |||||
| 24 | WPW10354249 | Cover-plate (Replaces: 3394331) |
|
$ 8.47 | |||||
| 25 | WP8563747 | Exhaust Pipe & Bracket (Replaces: 8563747) |
|
$ 86.36 | |||||
| 26 | WP3390902 | Clip, Door Hinge (Replaces: 3390902) |
|
$ 10.50 | |||||
| 27 | 279787 | Motor Assembly 60 Hz. (Replaces: 8538263) |
|
Immediately | $ 222.14 | ||||
| 28 | WPW10416072 | 4`` - 90 Elbow (Replaces: 49026) |
|
$ 25.34 | |||||
| 29 | W10837625 | Pulley, Motor (Replaces: 8578220) |
|
Immediately | $ 11.49 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 29.53 | ||||
| 31 | W10336128 | Seal, Spill Guard (Replaces: W10307570) |
|
$ 13.57 | |||||
| 32 | W11481730 | Bracket, Motor (Replaces: W10242878) |
|
Immediately | $ 85.36 | ||||
| 33 | 279393 | Terminal Block Screw Kit (for Terminal Block) |
|
Immediately | $ 50.09 | ||||
| 34 | WP3406107 | Door, Switch Assembly (Replaces: 3406107) |
|
Immediately | $ 28.08 | ||||
| 35 | WPW10331278 | Exhaust Pipe (short) (Replaces: 8563750) |
|
$ 74.61 | |||||
| 36 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 37 | WP8563749 | Exhaust Pipe (long) (Replaces: 8563749) |
|
$ 83.92 | |||||
| 38 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 39 | W10837240 | Idler Bracket (Replaces: 3388674) |
|
Immediately | $ 32.20 | ||||
| 40 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 41 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 29.24 | ||||
| 42 | WPW10284182 | Door Handle (Replaces: W10284182) |
|
Immediately | $ 92.62 | ||||
| 43 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.99 | ||||
| 44 | 280083 | Door Inner (Replaces: 3392563) |
|
$ 271.23 | |||||
| 45 | WP488627 | Screw, 8-18 X 3/8 (Replaces: 342055) |
|
$ 7.30 | |||||
| 46 | W10322551 | Door, Front (Replaces: W10279721) |
|
$ 148.12 | |||||
| 47 | WP3406797 | Toe Panel (includes, Illus. 2 ) (Replaces: 697215) |
|
$ 225.23 | |||||
| 48 | W10193554 | Upper Front Panel |
|
- | |||||
| 49 | W10191265 | Plug, Hinge Screw Front Panel |
|
$ 41.84 | |||||
| 50 | WP694091 | Screw, 8-18 X 3/16 (Replaces: 694091) |
|
$ 6.80 | |||||
| 51 | 3389249 | Nut, Inner Door |
|
- | |||||
| 52 | W10294344 | Spacer, Door Mount |
|
$ 11.78 | |||||
| 53 | WPW10273971 | Screw, 6-19 X 1/2 (Replaces: W10192860) |
|
Immediately | $ 6.80 | ||||
| 54 | W11095079 | Power Cord (Replaces: 8579325) |
|
Immediately | $ 124.42 | ||||
| 55 | W11712577 | Strain-relief Clip (Replaces: 694415) |
|
Immediately | $ 6.99 | ||||
| 57 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) White (Replaces: 279818) |
|
Immediately | $ 80.59 | ||||
| NI | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 |
