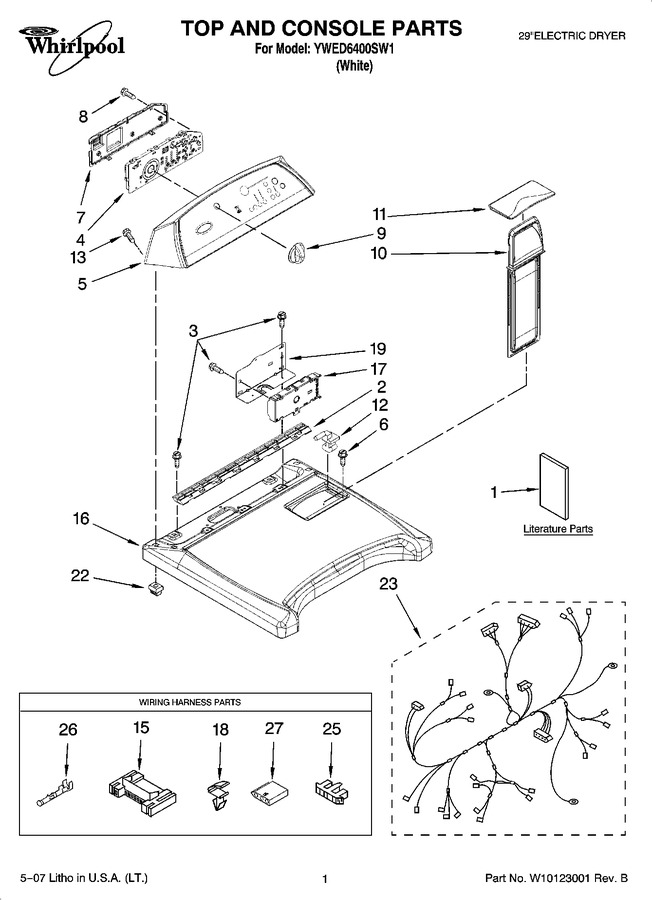

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 677818 | Manual, Do-it- Yourself Repair (dryer) |
|
- | |||||
| 1 | W10057300 | Tech Sheet |
|
- | |||||
| 1 | W10054090 | Guide, Quick Start |
|
- | |||||
| 1 | W10054070 | Use & Care Guide |
|
- | |||||
| 2 | 8558863 | Bracket, Console |
|
$ 33.78 | |||||
| 3 | WP33001882 | Screw, 8-18 X 7/16 (Replaces: 337686) |
|
$ 75.34 | |||||
| 4 | 8563974 | User Interface |
|
$ 275.47 | |||||
| 5 | W10110325 | Panel, Console |
|
$ 269.65 | |||||
| 6 | WP3196557 | Screw, 8-18 X 5/8 (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 7 | 8564265 | Cover, Rear |
|
$ 128.34 | |||||
| 8 | WP4449745 | Screw, 6-19 X 3/64 (Replaces: W10003770) |
|
$ 7.18 | |||||
| 9 | 8574957 | Knob, Assembly |
|
$ 26.10 | |||||
| 10 | WP8572270 | Assembly, Lint Screen (Replaces: 8572270) |
|
Immediately | $ 93.92 | ||||
| 11 | W10044320 | Cover, Lint Screen |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: W10044480) |
|
$ 7.30 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: W10044470) |
|
$ 7.30 | |||||
| 13 | W10001580 | Screw |
|
- | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 49.01 | ||||
| 16 | 8565025 | Top |
|
- | |||||
| 17 | W10118243 | Control, Electronic |
|
- | |||||
| 18 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.36 | |||||
| 19 | 8563853 | Bracket, Machine Controller |
|
- | |||||
| 22 | 8558853 | Grommet |
|
- | |||||
| 23 | W10111429 | Harness Wiring |
|
$ 93.11 | |||||
| 25 | 3936144 | Connector |
|
$ 19.10 | |||||
| 26 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.25 | |||||
| 27 | 3397269 | Connector, Timer |
|
$ 25.55 |
