SELECT A DIAGRAM

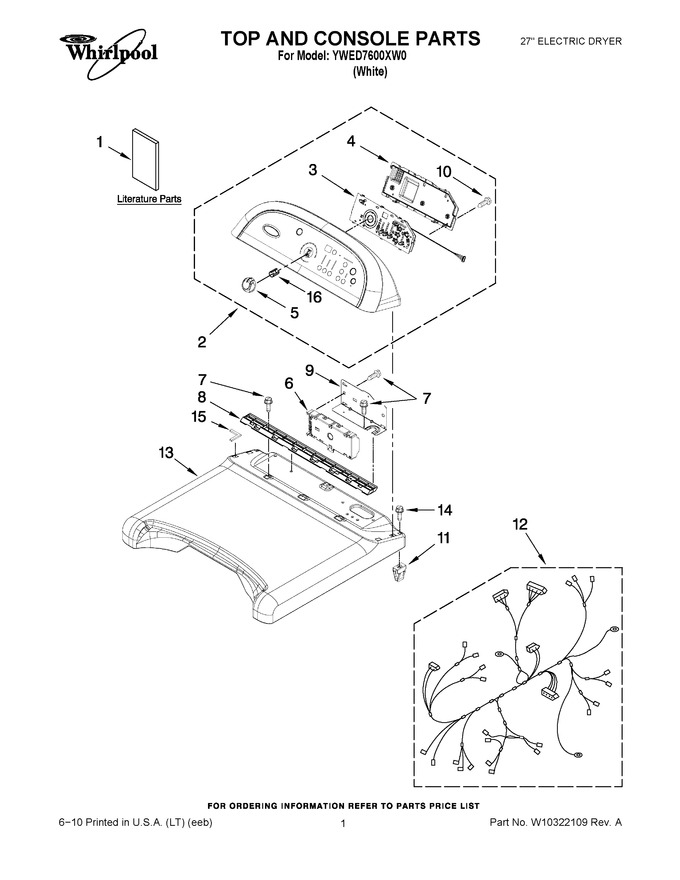

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10305227 | Guide, Use & Care |
|
- | |||||
| 1 | W10261614 | Installation Instruction |
|
- | |||||
| 1 | W10323414 | Tech Sheet |
|
- | |||||
| 2 | W10298646 | Panel, Console |
|
$ 328.53 | |||||
| 3 | W10298626 | User Interface |
|
$ 252.17 | |||||
| 4 | 8564265 | Cover, Rear (ui Assembly) |
|
$ 128.34 | |||||
| 5 | WPW10211335 | Knob, Assembly (Replaces: W10211335) |
|
$ 53.78 | |||||
| 6 | W10294316 | Control Electronic |
|
$ 338.17 | |||||
| 7 | WP33001882 | Screw, 8-18 X 1/2 (Replaces: 337686) |
|
$ 75.34 | |||||
| 8 | 8558863 | Bracket, Console |
|
$ 33.78 | |||||
| 9 | W10211337 | Bracket, Machinecontroller |
|
- | |||||
| 10 | WP4449745 | Screw (Replaces: W10003770) |
|
$ 7.18 | |||||
| 11 | W10112673 | Clip, Console |
|
$ 8.78 | |||||
| 12 | W10319799 | Harness, Electric |
|
$ 176.90 | |||||
| 13 | W10211339 | Top |
|
- | |||||
| 14 | W10131402 | Screw, 8-18 X 1.370 |
|
- | |||||
| 15 | W10185554 | Foam, Top |
|
- | |||||
| 16 | W10303825 | Spring, Clip Knob |
|
- |
