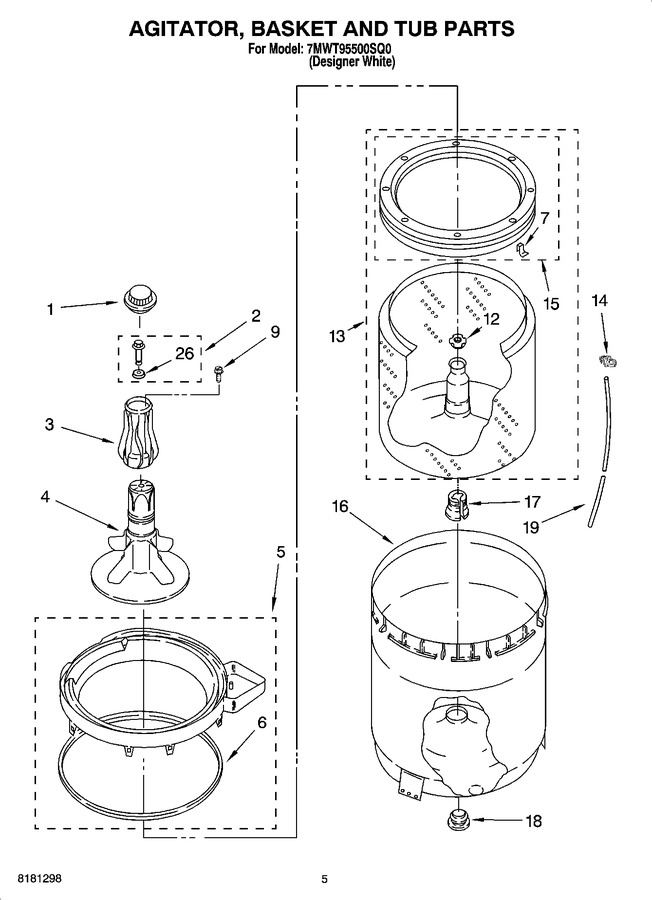

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3355758 | Cap, Agitator (Replaces: 3355758) |
|
Immediately | $ 9.00 | ||||
| 2 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 8.86 | ||||
| 3 | 64210 | Extension, Agitator |
|
$ 84.05 | |||||
| 4 | 64214 | Agitator |
|
$ 68.42 | |||||
| 5 | 3360611 | Tub Ring & Gasket |
|
$ 88.45 | |||||
| 6 | WP3359586 | Gasket, Tub Ring (Replaces: 3359586) |
|
$ 94.63 | |||||
| 7 | WP8519815 | Clip (8) (Replaces: 8519815) |
|
$ 9.17 | |||||
| 9 | WPW10109200 | Screw (2) (Replaces: 63027) |
|
Immediately | $ 8.80 | ||||
| 12 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 11.56 | ||||
| 13 | 3956206 | Basket & Balance Ring |
|
- | |||||
| 14 | 2219077 | Clip, Pressure Switch Hose |
|
$ 64.24 | |||||
| 15 | 3956205 | Balance Ring |
|
$ 75.59 | |||||
| 16 | 63125 | Tub |
|
$ 234.68 | |||||
| 17 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 18 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 9.98 | ||||
| 19 | WP353244 | Hose, Pressure Switch (Replaces: 3347780) |
|
Immediately | $ 59.93 | ||||
| 26 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 |
