SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)

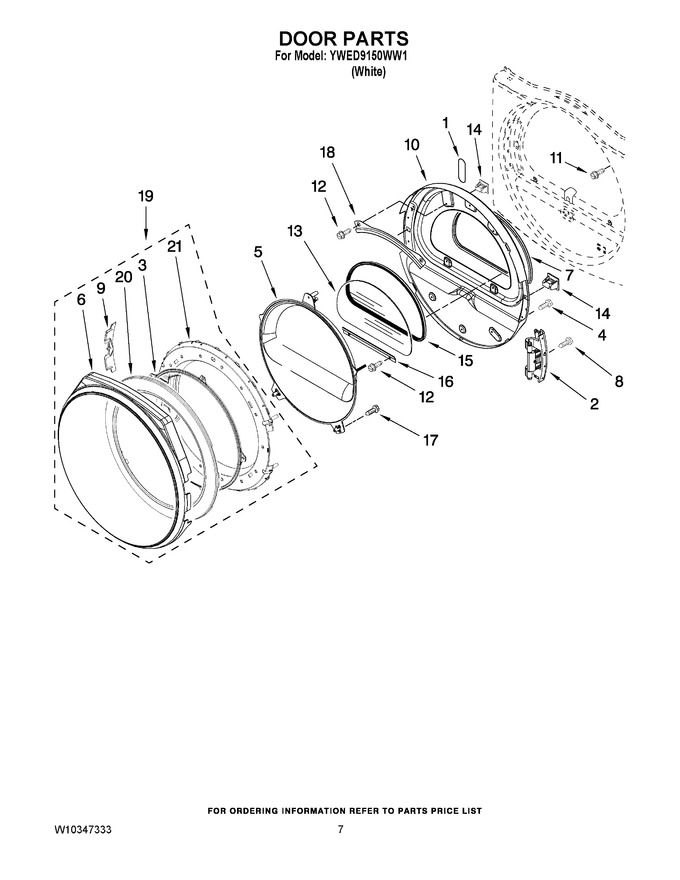

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10256915		Label-hinge Hole Cover   (Replaces: W10256915)				$ 82.07
2	WPW10304672		Door, Hinge Assembly   (Replaces: 8578887)			Immediately	$ 232.48
3	N/P		Screen, Door (not Serviceable Sperately, Order Item. 19 )		Appelez-nous	-
4	W11116979		Screw,8-18 X 1/2   (Replaces: 8534044)				$ 13.76
5	W10215764		Door, Intermediate Stationary				$ 97.85
6	W10215757		Trim-door Outer Ring				$ 95.49
7	WPW10163915		Door Seal   (Replaces: W10163915)			Immediately	$ 87.42
8	WPW10159996		Screw,   (Replaces: W10159996)				$ 8.52
9	W10215766		Trim-door, Hinge Cover				$ 26.09
10	W10270215		Door Assembly Inner (includes Item. 1 & 14 )		Appelez-nous	-
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 8.48
12	WP3373329		Screw, 10-16 X 1/2   (Replaces: 3393258)				$ 8.52
13	WPW10286878		Window   (Replaces: W10286878)				$ 274.76
14	279570		Door Catch Assembly   (Replaces: 690081)			Immediately	$ 8.89
15	W11706993		Seal, Window   (Replaces: 8579663)				$ 28.22
16	W10822054		Retainer (lower)   (Replaces: 8519354)			Immediately	$ 18.01
17	WP8534022		Screw   (Replaces: 8534022)				$ 8.37
18	8519356		Retainer (upper)		Appelez-nous	-
19	W10215755		Door Assembly Outer				$ 215.61
20	N/P		Trim-door Inner Ring (not Serviceable Seperately, Order Item. 19 )		Appelez-nous	-
21	W10215762		Door Intermediate Rotational		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
