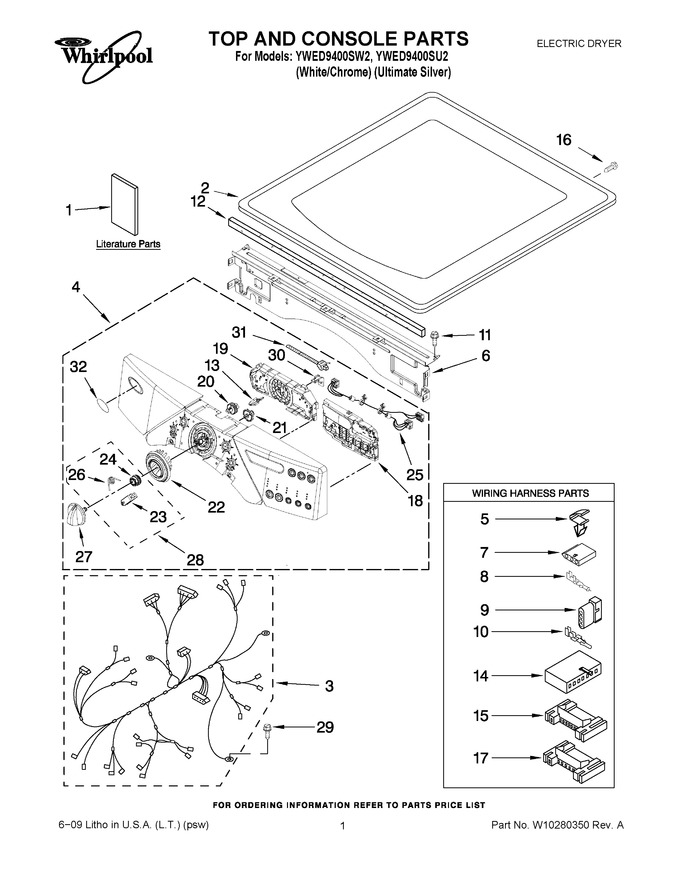

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10255469 | Installation, Instruction |
|
- | |||||
| 1 | W10224575 | Use & Care Guide |
|
- | |||||
| 1 | W10258369 | Tech Sheet |
|
- | |||||
| 2 | 3980634 | Top (white) |
|
- | |||||
| 2 | W10114785 | Top (silver) |
|
$ 122.15 | |||||
| 3 | W10111064 | Harness, Main |
|
$ 227.44 | |||||
| 4 | W10246730 | Panel, Console (includes Items: 20,21,22,27,28 & 32) (white) |
|
- | |||||
| 4 | W10246729 | Panel, Console (includes Items: 20,21,22,27,28 & 32) (silver) |
|
- | |||||
| 5 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 6 | W10215656 | Bracket, Console (includes No.12) |
|
$ 72.06 | |||||
| 7 | 353424 | Connector, Sensor |
|
$ 18.95 | |||||
| 8 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 9 | 3936144 | Plug, Terminal |
|
$ 21.22 | |||||
| 10 | 94613 | Terminal |
|
- | |||||
| 11 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | W10112267 | Foam-seal |
|
$ 97.53 | |||||
| 13 | W10012480 | Array-power (Replaces: W10030070) |
|
$ 17.15 | |||||
| 14 | 3936150 | Connector, 7-circuit |
|
$ 77.60 | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 16 | W11808444 | Screw, 8-32 X 1/32 (Replaces: 98139) |
|
- | |||||
| 17 | 2203186 | Connector, 5-circuit |
|
$ 13.18 | |||||
| 18 | W10246782 | User Interface (right) |
|
- | |||||
| 19 | W10121375 | User Interface (center) (includes: Illus. 13) |
|
$ 309.72 | |||||
| 20 | W10012430 | Encoder-wheel |
|
$ 21.85 | |||||
| 21 | W10012440 | Retainer-snap |
|
$ 12.36 | |||||
| 22 | W10012410 | Knob, Light Ring (includes: Item 21) |
|
$ 21.84 | |||||
| 23 | W10012810 | Rast, Wheel Holder (service Only With Item. 28 ) |
|
- | |||||
| 24 | W10012460 | Detent Wheel (service Only With Item. 28) |
|
- | |||||
| 25 | W10242906 | Harness, Communication |
|
$ 170.16 | |||||
| 26 | W10012820 | Knob, Spring (2) (service Only With Item 28) |
|
- | |||||
| 27 | W10116702 | Knob, Control (includes: Item. 21) (white) |
|
$ 23.69 | |||||
| 27 | W10116704 | Knob, Control (includes: Item. 21) (ultimate Silver) |
|
$ 36.33 | |||||
| 28 | 280230 | Encoder, Wheel Kit (includes Items: 23, 24, & 26) |
|
$ 141.57 | |||||
| 29 | WP693995 | Screw, Ground (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 30 | W10112268 | Clip-harness (4) |
|
- | |||||
| 31 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 33.43 | |||||
| 32 | W10117943 | Badge |
|
- |
