SELECT A DIAGRAM

01 - Cover

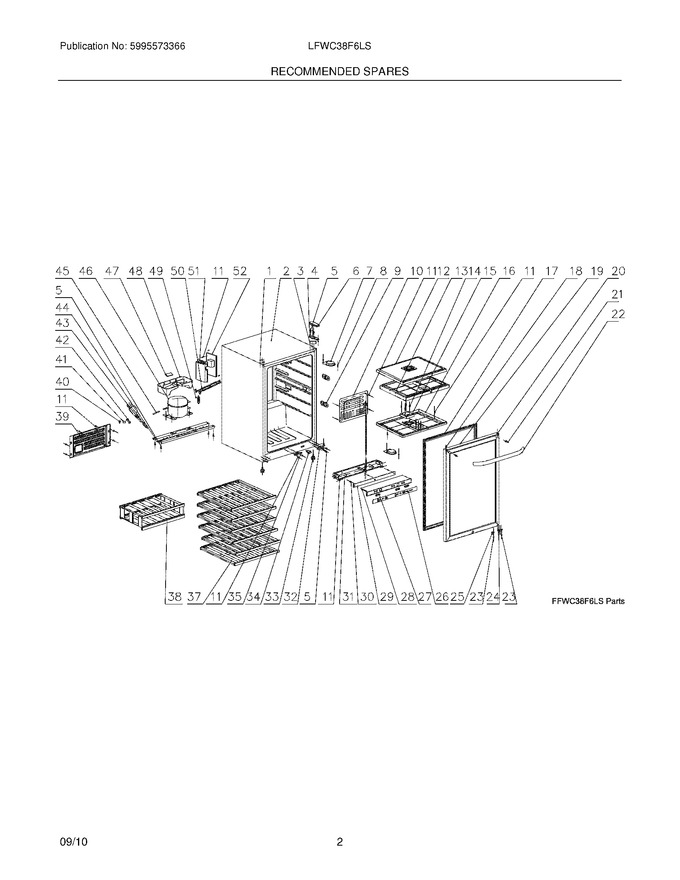

03 - Recommended Spare Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304479779		Plug,hinge Hole ,cabinet				$ 8.45
3	5304479780		Washer,top Hinge		Appelez-nous	-
4	5304479781		Hinge,top				$ 62.11
5	5304480019		Screw,tapping				$ 7.83
6	5304479782		Cover,top Hinge				$ 21.16
8	5304479804		Screw,tapping ,stainless Steal		Appelez-nous	-
9	5304479805		Cover,temp Sensor			Immediately	$ 49.15
11	5304479807		Screw,tapping ,stainless Steel		Appelez-nous	-
12	5304479874		Panel,divider ,top				$ 85.05
13	5304479875		Divider,styrofoam		Appelez-nous	-
14	5304480020		Screw,tapping		Appelez-nous	-
16	5304479876		Panel,divider ,bottom		Appelez-nous	-
18	5304479809		Plug,door Hole				$ 19.13
19	5304479810		Door Assembly,glass				$ 878.59
20	5304513161		Bushing,hinge   (Replaces: 5304479789)				$ 2.83
21	5304513163		Screw,shoulder ,door Handle   (Replaces: 5304479811)			Immediately	$ 34.89
22	5304479812		Handle Assembly,door				$ 188.10
23	5304479813		Screw,tapping ,door		Appelez-nous	-
24	5304479790		Stop,door				$ 10.63
25	5304531677		Bracket,door Switch   (Replaces: 5304479791)				$ 4.58
26	5304479814		Control Panel,console				$ 155.93
27	5304479936		Push Button				$ 53.15
28	5304479815		Overlay,control Board ,cover				$ 54.34
30	5304479817		Screw,tapping		Appelez-nous	-
31	5304479818		Base,display Board				$ 58.59
32	5304479792		Hinge,bottom				$ 100.17
33	5304479819		Foot,leveling Screw ,cabinet				$ 26.23
35	5304479795		Latch,door				$ 28.35
37	5304479820		Shelf,wine ,wood				$ 318.84
38	5304479821		Rack,removeable ,bottom				$ 242.71
39	5304479822		Cover,access ,rear		Appelez-nous	-
40	5304480022		Screw,tapping		Appelez-nous	-
41	5304479823		Clamp,strain Relief ,power Cord		Appelez-nous	-
42	5304479838		Sleeve,power Cord		Appelez-nous	-
44	5304479825		Base,compressor		Appelez-nous	-
47	5304479828		Pad,thermal Mastic		Appelez-nous	-
48	5304479799		Tray,drip Pan				$ 44.89
51	5304479835		Cover,control Box		Appelez-nous	-
F10	5304479806		Evaporator		Appelez-nous	-
F15	5304479935		Fan				$ 221.55
F17	5304479808		Gasket,door				$ 130.10
F29	5304479816		Pc Board,input ,display				$ 201.92
F34	5304479794		Switch,lamp/light			Immediately	$ 53.87
F43	5304479824		Power Cord,electric				$ 104.90
F45	5304479826		Tube,adapter		Appelez-nous	-
F46	5304479827		Compressor				$ 420.95
F49	5303305677		Drier-filter,r134a System   (Replaces: 218944002)			Immediately	$ 31.67
F50	5304479834		Wiring Harness,electrical		Appelez-nous	-
F52	5304507022		Pc Board,power ,main   (Replaces: 5304479836)				$ 408.70
F7	5304479803		Lamp Assembly,led				$ 94.98
FNI	5304479971		Thermistor,temp Sensor				$ 85.37

    View Diagram in Separate Window       Print Part List
