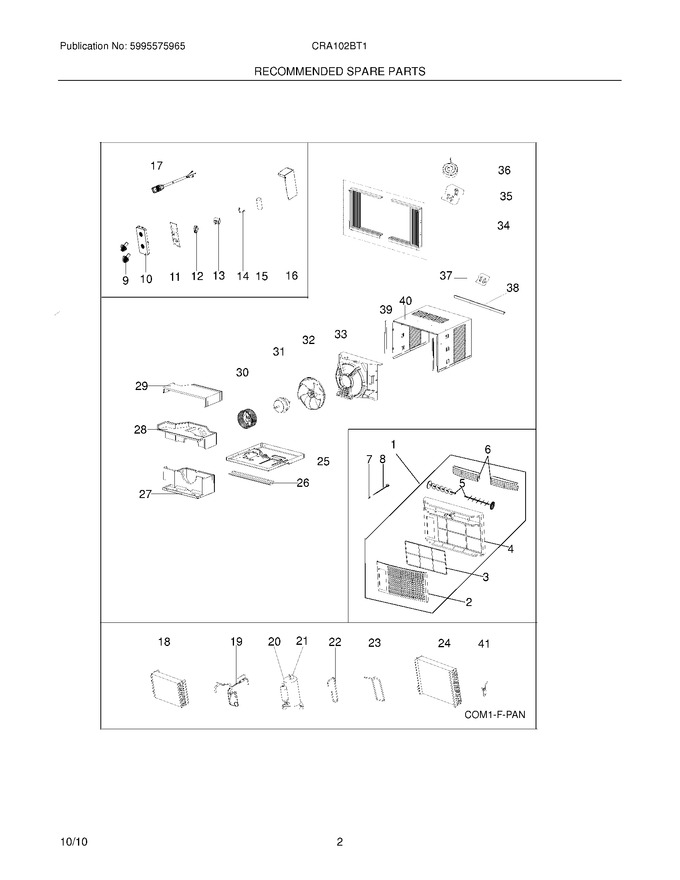

03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304476174 | Panel,front Grille ,tilt-out |
|
- | |||||
| 4 | 5304476760 | Frame,front Assembly |
|
- | |||||
| 9 | 5304472217 | Knob Assembly,control ,w/spring |
|
$ 34.44 | |||||
| 10 | 5304476763 | Control Panel,with Overlay |
|
- | |||||
| 11 | 5304476764 | Cover,control Box |
|
- | |||||
| 14 | 5304471203 | Strap,capacitor Clamp |
|
- | |||||
| 16 | 5304476767 | Control Box |
|
- | |||||
| 25 | 5304476789 | Base,unit Chassis |
|
- | |||||
| 26 | 5304476775 | Rail,shutter Track ,bottom |
|
- | |||||
| 27 | 5304476776 | Scroll,blower Housing ,bottom |
|
- | |||||
| 28 | 5304476777 | Scroll,blower Housing ,middle |
|
- | |||||
| 29 | 5304476778 | Scroll,blower Housing ,top |
|
- | |||||
| 30 | 5304476779 | Blower Wheel,centrifugal Fan |
|
- | |||||
| 33 | 5304476782 | Shroud,condenser ,fan |
|
- | |||||
| 34 | 5304472208 | Window Filler Kit,slider Panels |
|
- | |||||
| 35 | 5304472192 | Hardware,mounting ,screws/locks |
|
$ 8.49 | |||||
| 36 | 5304472211 | Seal Kit,foam ,sash Filler |
|
$ 36.12 | |||||
| 37 | 5304472191 | Screw Kit,top Rail Mount |
|
$ 16.22 | |||||
| 38 | 5304472210 | Rail,shutter Track ,top |
|
- | |||||
| 39 | 5304472209 | Retainer,shutter ,cabinet Sides |
|
$ 11.48 | |||||
| 40 | 5304476783 | Cabinet,wrapper/sleeve |
|
- | |||||
| F1 | 5304476759 | Front Panel Assy.,incl/2,3,4,5,6 |
|
- | |||||
| F12 | 5304476765 | Sensor Assembly,temperature |
|
$ 91.72 | |||||
| F13 | 5304476766 | Switch,master ,rotary |
|
- | |||||
| F15 | 5304471294 | Capacitor |
|
- | |||||
| F17 | 5304476768 | Power Cord,lcdi ,test/reset |
|
$ 177.82 | |||||
| F18 | 5304476784 | Evaporator,with Cap Tube |
|
- | |||||
| F19 | 5304476785 | Tube,capillary |
|
- | |||||
| F20 | 5304476786 | Compressor,w/overload |
|
- | |||||
| F21 | 5304476294 | Overload Protector,compressor |
|
- | |||||
| F22 | 5304476787 | Tube,suction |
|
- | |||||
| F23 | 5304476788 | Tube,discharge |
|
- | |||||
| F24 | 5304476773 | Condenser |
|
- | |||||
| F3 | 5304476175 | Filter,air ,plastic Frame |
|
- | |||||
| F31 | 5304476780 | Motor,fan |
|
- | |||||
| F32 | 5304476781 | Fan Blade,axial |
|
- | |||||
| F41 | 5304476367 | Drier-filter |
|
$ 45.55 | |||||
| F5 | 5304476761 | Louver,vertical |
|
- | |||||
| F6 | 5304476762 | Louver,horizontal |
|
- | |||||
| F7 | 5304520877 | Sleeve,vent Door Assy ,guide (Replaces: 5304476179) |
|
- | |||||
| F8 | 5304476178 | Door,vent Control ,with Lever |
|
- |
