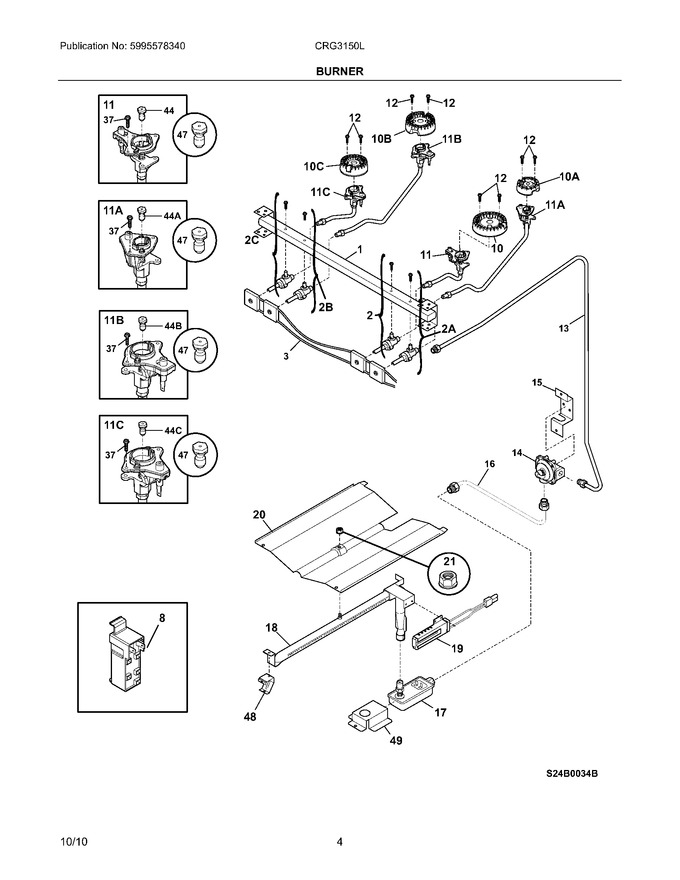

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	316540900		Screw,burner ,head Mtg ,(8)			Immediately	$ 16.85
15	316091600		Bracket,regulator				$ 81.73
20	316496001		Baffle,oven Burner				$ 78.33
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.46
37	316240600		Screw,assy Mtg ,(8) ,ignitor/orifice			Immediately	$ 13.48
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
49	316416300		Bracket,safety Valve		Appelez-nous	-
F1	316417900		Manifold Pipe				$ 163.01
F10	316438000		Burner,sealed ,12k				$ 75.34
F10A	316438200		Burner,sealed ,5k			Immediately	$ 63.00
F10B	316438600		Burner,sealed ,14k				$ 88.67
F10C	316558300		Burner,sealed ,9.5k			Immediately	$ 58.28
F11	316536614		Ignitor/orifice Assy.,top Burner ,right Front,14k ,w/holder ,tube				$ 124.74
F11A	316536610		Ignitor/orifice Assy.,top Burner ,right Rear,5k ,w/holder ,tube			Immediately	$ 102.64
F11B	316536612		Ignitor/orifice Assy.,top Burner ,left Rear,12k ,w/holder ,tube				$ 129.47
F11C	316536602		Ignitor/orifice Assy.,top Burner ,left Front,9.5k ,w/holder ,tube				$ 147.36
F13	316545800		Tube,3/8 ,aluminum , Rgltr To Manf ,with Fittings		Appelez-nous	-
F14	5304521339		Regulator,pressure   (Replaces: 316091706)			Immediately	$ 117.13
F16	316065006		Tube-valve To Rgltr,3/8   (Replaces: 316436500)				$ 135.66
F17	3203459		Valve,safety				$ 337.38
F18	316114300		Burner,oven				$ 188.75
F19	5304509706		Ignitor,oven Kit ,w/nut & Instr   (Replaces: 316489402)			Immediately	$ 210.66
F2	5303935307		Valve,14k Top Burner ,w/mtg Screw				$ 100.80
F2A	5303935308		Valve,5k Top Burner ,w/mtg Screw				$ 78.75
F2B	5303935306		Valve,12/14k Burner ,w/mtg Screw				$ 89.78
F2C	5303935305		Valve,9.5k Burner ,w/mtg Screw			Immediately	$ 85.84
F3	316580611		Harness-ignitor			Immediately	$ 93.24
F44	316527511		Orifice,top Burner ,14k				$ 22.05
F44A	316527502		Orifice,top Burner ,12k				$ 25.20
F44B	316527504		Orifice,top Burner ,5k				$ 25.20
F44C	316527500		Orifice,top Burner ,9.5k				$ 23.78
F47	GRLP3		Lp Conversion Kit,w/instructions				$ 63.46
F8	808608802		Module,spark   (Replaces: 316262401)			Immediately	$ 92.14
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 30.55
NI	316566900		Sleeve,insulator		Appelez-nous	-
NI	316089500		Screw,10-16 X .486				$ 14.96
NI	316257400		Bracket,spark Module				$ 16.85
NI	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 15.75
NI	316417518		Instructions,lp Conversion		Appelez-nous	-
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 14.96
NI	5304535516		Harness-ignitor   (Replaces: 316580601)				$ 75.87
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021104		Screw,hex ,8-18 X 3/8 ,nick ,(3) ,regulator Brkt				$ 8.66
