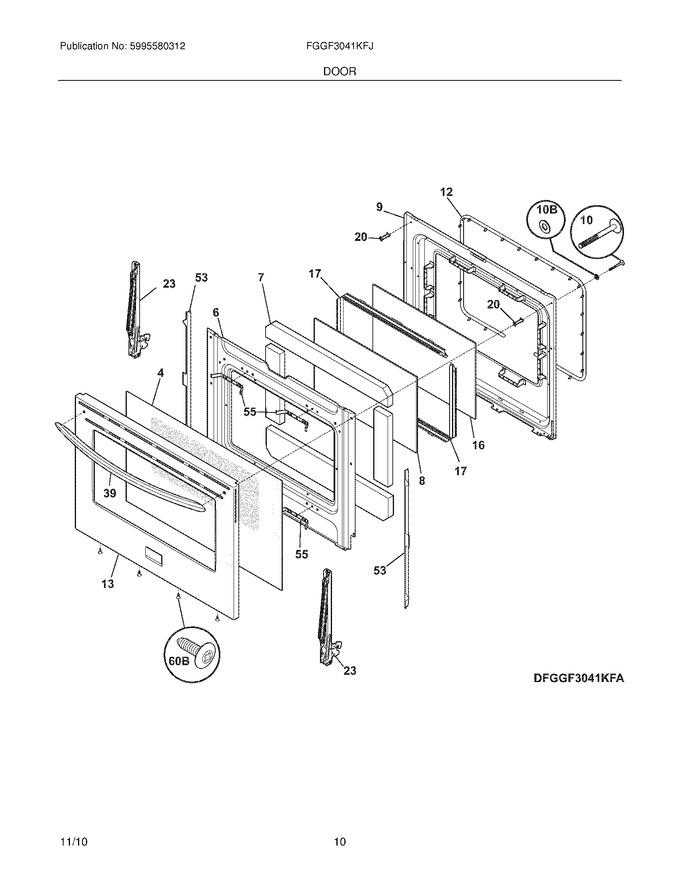

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452722		Glass,oven Door ,black ,w/foil				$ 296.94
6	316402316		Shield,wool   (Replaces: 316402310)			Immediately	$ 98.58
7	316403900		Insulation,oven Door			Immediately	$ 80.33
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 129.94
9	316423807		Liner-oven Door				$ 190.44
10	316433303		Screw,handle Mtg. ,10-24 X 1.75`` ,(2)   (Replaces: 316439500)			Immediately	$ 34.63
12	5304498835		Seal,oven Door   (Replaces: 316403101)			Immediately	$ 98.60
13	316604011		Panel,oven Door ,stainless   (Replaces: 316407818)				$ 145.14
16	316117501		Glass,oven Door ,inner				$ 148.16
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316402403)			Immediately	$ 27.80
20	316284100		Spacer,door Handle ,(2)				$ 16.54
23	316575906		Hinge,oven Door			Immediately	$ 103.65
39	316554010		Handle,door/drawer ,stainless   (Replaces: 316554005)			Immediately	$ 187.16
53	5304532043		Shield,filler ,door ,(2)   (Replaces: 316408101)				$ 41.57
55	316408300		Bracket,glass Support ,(4)				$ 23.59
10B	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 12.60
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 30.55
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 15.75
NI	316433603		Label,anti-tip				$ 3.94
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 30.55
