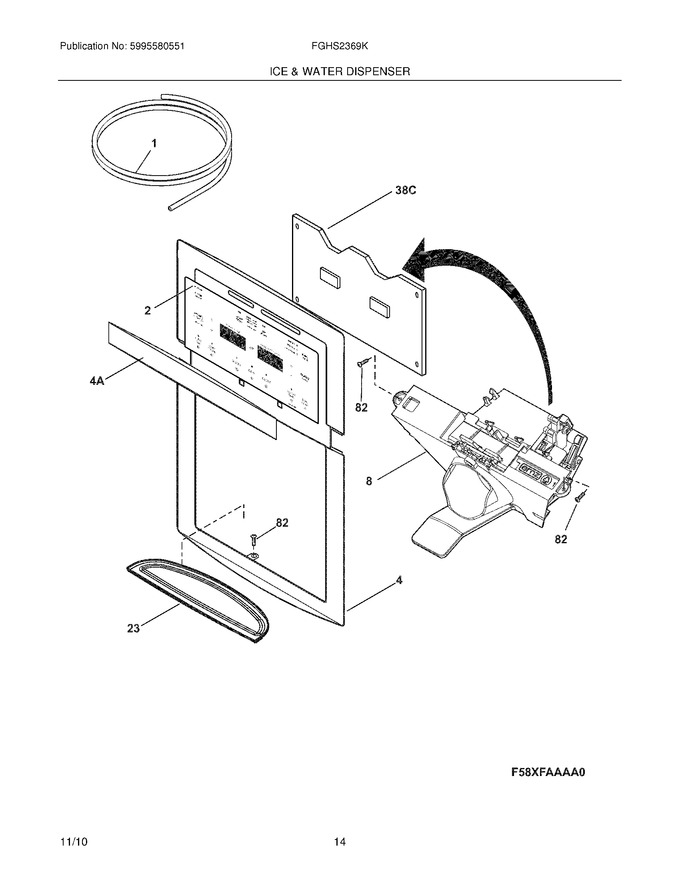

15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


20 - Wiring Schematic


21 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water-door			Immediately	$ 66.94
2	241973813		Switch Assembly,overlay ,black				$ 651.26
4	241946803		Cover-module,black		Appelez-nous	-
8	242074218		Module-dispenser   (Replaces: 242074206)				$ 304.19
23	241947003		Drip Tray,black				$ 25.99
82	5304453707		Screw,plask ,no.8-18 X .500   (Replaces: 240363402)			Immediately	$ 17.69
4A	241946901		Trim,facade				$ 73.55
F38C	241973703		Board-control		Appelez-nous	-
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker   (Replaces: 240561703)			Immediately	$ 22.84
NI	241850615		Tube-water Inlet,inlet Valve ,to I/m Inlet   (Replaces: 218976915)				$ 38.59
NI	218976429		Tube-water Inlet,97.50`` ,brown/tan				$ 44.89
NI	218976419		Tube-water Inlet,valve To Door				$ 25.20
NI	5303918596		Dispenser Heater Kit,115   (Replaces: 5303918371)				$ 352.64
