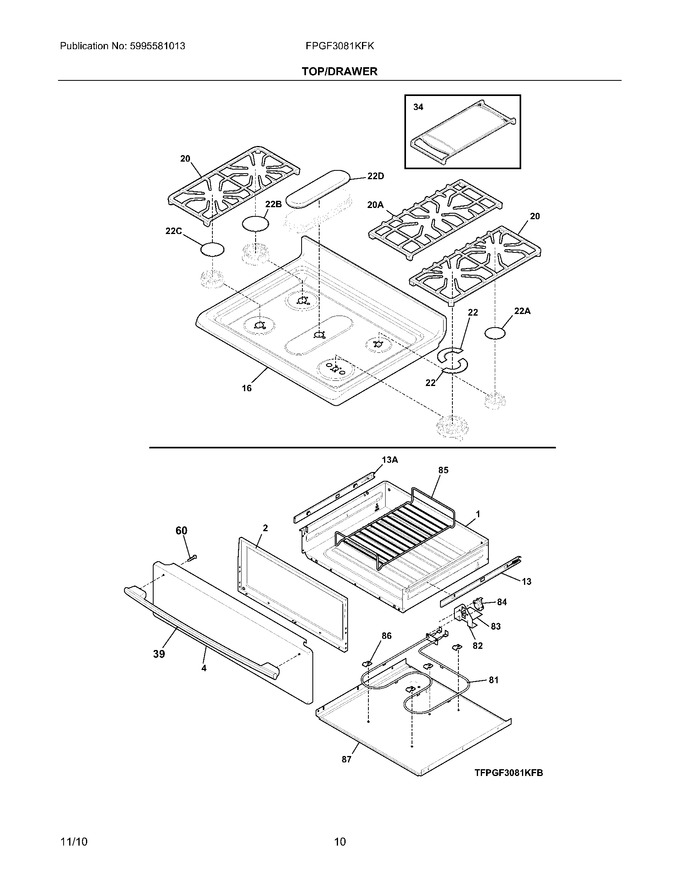

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408905		Drawer,warmer   (Replaces: 316408901)				$ 159.39
2	5304527988		Liner,black ,drawer   (Replaces: 316403203)			Immediately	$ 29.49
4	5304494412		Panel,drawer ,stainless ,outer   (Replaces: 316409312)				$ 109.48
13	316415000		Glide,warmer ,inner Rh				$ 65.36
16	316469665		Maintop Panel,black				$ 202.91
20	316546202		Grate,burner ,black ,sides ,(2)		Appelez-nous	-
22	316262204		Cap,17k Twin Burner ,black ,(2)			Immediately	$ 80.89
34	316465800		Griddle				$ 142.49
39	5304532118		Handle,door/drawer ,stainless   (Replaces: 316551500)				$ 125.42
60	316001013		Screw,wafer Head `10-24 X 1.375 ,handle Mtg.			Immediately	$ 2.68
82	316093200		Bracket,element Mtg		Appelez-nous	-
83	316093300		Shield,terminal ,warmer Drawer		Appelez-nous	-
84	316093502		Thermo Disc,warmer Drawer				$ 56.70
85	807328301		Rack,warmer Drawer   (Replaces: 316425900)				$ 96.90
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091900		Base,warmer Drawer				$ 221.55
13A	316415001		Glide,warmer ,inner Lh			Immediately	$ 65.36
20A	316546102		Grate,burner ,black ,center		Appelez-nous	-
22A	5304508441		Cap,5k Burner ,black   (Replaces: 316261704)			Immediately	$ 38.93
22B	5304508443		Cap,14k Burner ,black   (Replaces: 316262004)			Immediately	$ 51.12
22C	5304508442		Cap,9.5k Burner ,black   (Replaces: 316261804)			Immediately	$ 40.61
22D	316559604		Cap,9.5k Burner ,black ,oval				$ 80.33
F81	316437300		Element,warmer Drawer				$ 117.97
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.37
NI	5304516184		Harness,warm Base   (Replaces: 316525623)				$ 31.68
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 14.96
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 30.55
