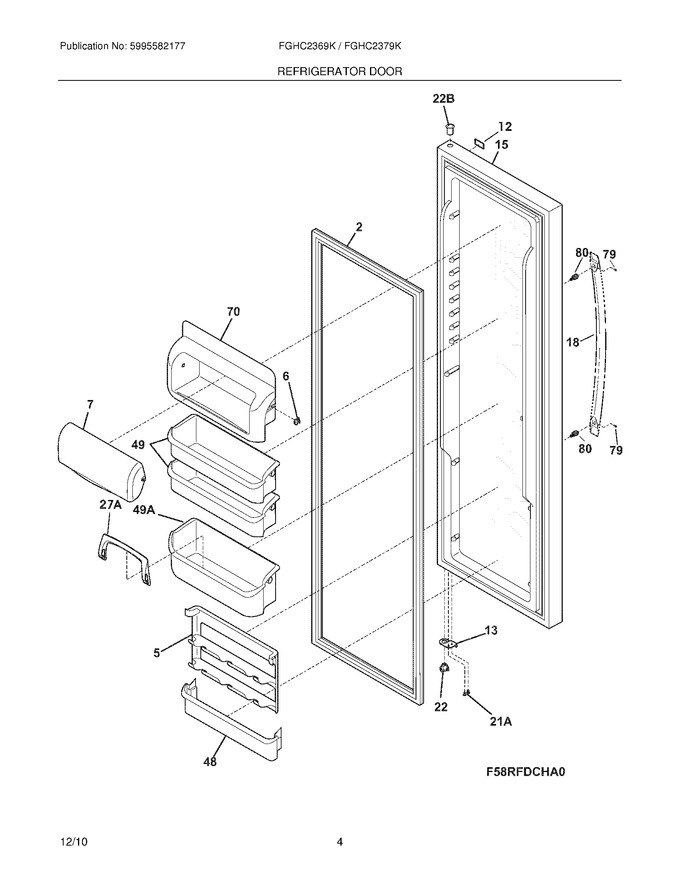

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 241516102 | Rack-can |
|
$ 101.54 | |||||
| 6 | 241515901 | Lug-dairy Compartment |
|
$ 47.19 | |||||
| 7 | 241515606 | Door-dairy (Replaces: 241515601) |
|
$ 45.51 | |||||
| 12 | 242015201 | Label-nameplate |
|
Immediately | $ 7.67 | ||||
| 13 | 241942603 | Door Stop,black ,ref |
|
$ 22.84 | |||||
| 15 | 241837280 | Door-refr,white ,complete Assy |
|
- | |||||
| 18 | 297437820 | Handle-door,white ,(2) (Replaces: 241930102) |
|
$ 124.43 | |||||
| 22 | 241990301 | Bearing-hinge,gray |
|
$ 7.88 | |||||
| 48 | 241511701 | Bin-door,ref (Replaces: 241808224) |
|
Immediately | $ 74.68 | ||||
| 49 | 241505301 | Bin-door,2 Liter (Replaces: 241808222) |
|
Immediately | $ 84.89 | ||||
| 70 | 241515801 | Compartment-dairy,removable |
|
$ 197.66 | |||||
| 79 | 218755405 | Screw-set,10-32 X 0.650 (Replaces: 218755408) |
|
Immediately | $ 22.84 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 20.67 | ||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22B | 241760403 | Bearing,hinge ,top |
|
Immediately | $ 21.26 | ||||
| 27A | 241812702 | Retainer,tall Bottle |
|
$ 18.38 | |||||
| 49A | 241505501 | Bin-door,gallon ,w/trim (Replaces: 241808223) |
|
Immediately | $ 110.03 | ||||
| F2 | 241510201 | Gasket-refr Door,white ,magnetic |
|
Immediately | $ 246.82 | ||||
| F49A | 241780003 | Liner,bin ,gallon |
|
$ 92.14 | |||||
| NI | 241779903 | Liner,bin ,2 Liter |
|
$ 82.69 |
