SELECT A DIAGRAM
New Model Search:

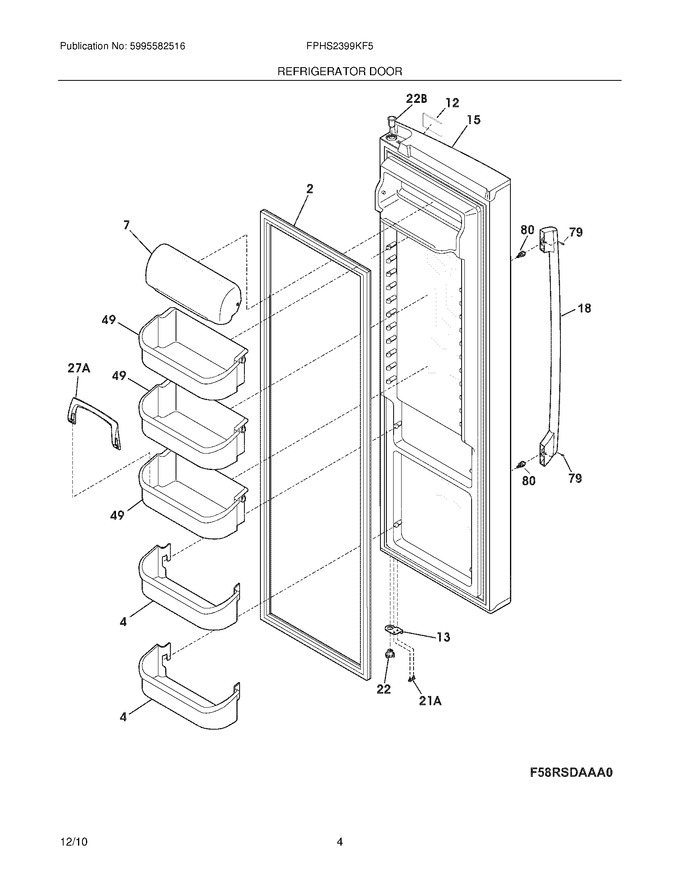

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240363702 | Bin-door,2-liter |
|
Immediately | $ 84.89 | ||||
| 7 | 240338313 | Door,dairy ,clear (Replaces: 240338303) |
|
Immediately | $ 89.78 | ||||
| 12 | 242015101 | Nameplate |
|
$ 5.06 | |||||
| 13 | 241942603 | Door Stop,black ,ref |
|
$ 22.84 | |||||
| 15 | 241837275 | Door-refr,stainless ,complete Assy |
|
$ 601.13 | |||||
| 18 | 241972501 | Handle-door,stainless |
|
$ 227.22 | |||||
| 22 | 241990301 | Bearing-hinge,gray |
|
$ 7.88 | |||||
| 49 | 240324502 | Bin-door,gallon ,w/trim (Replaces: 241808226) |
|
Immediately | $ 114.01 | ||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 27.80 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 20.67 | ||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 15.75 | |||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22B | 241760404 | Bearing,hinge ,top |
|
$ 14.18 | |||||
| 27A | 241812702 | Retainer,tall Bottle |
|
$ 18.38 | |||||
| F2 | 241786015 | Gasket-refr Door,white ,magnetic (Replaces: 241786003) |
|
Immediately | $ 105.18 | ||||
| NI | 241780303 | Liner,bin,bin |
|
$ 56.37 |
