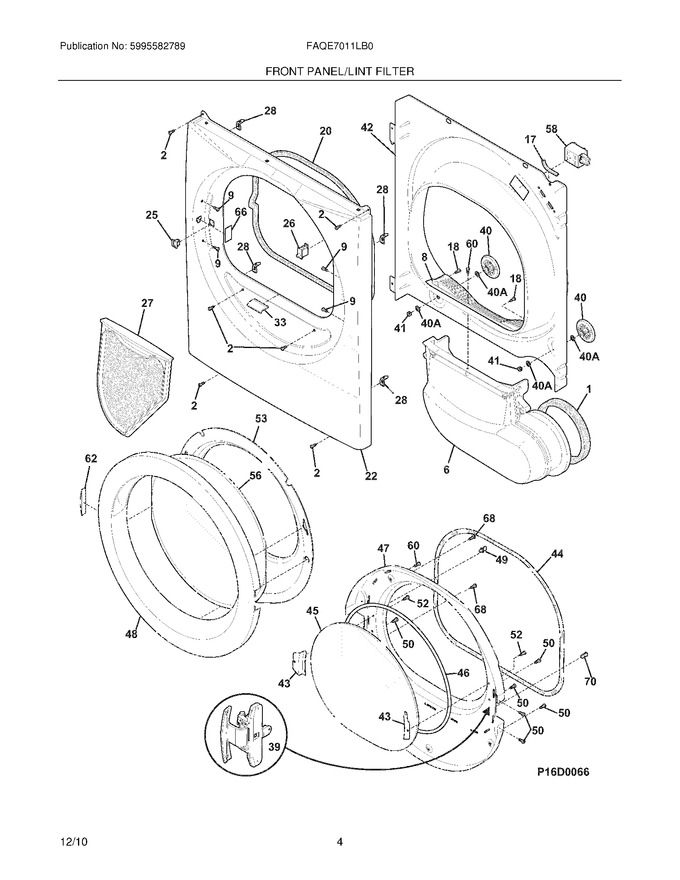

05 - Front Panel/lint Filter


07 - Controls/top Panel


09 - Motor


11 - Eburner


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137068200		Seal,air Duct				$ 14.81
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 15.75
6	134710705		Duct,air ,gray				$ 208.95
8	137554110		Cover,lint Housing   (Replaces: 134701310)			Immediately	$ 124.22
9	131633220		Plug,gray				$ 4.39
17	134792900		Protector,edge ,right Top Front ,85.0+/-1.5				$ 14.96
18	131168200		Screw,10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 15.75
20	137116600		Gasket,front Panel				$ 151.53
22	134696660		Panel,front ,black				$ 241.71
25	131658800		Door Catch,gray ,upper   (Replaces: 131658820)			Immediately	$ 75.98
27	134701410		Filter, Lint ,complete			Immediately	$ 82.38
28	137034500		Clip,mounting ,cabinet Front				$ 48.04
33	137067110		Ramp,gray ,door				$ 19.06
39	137105100		Hinge,door ,39				$ 204.94
40	5304523155		Roller,wheel ,complete Asmy   (Replaces: 134715900)			Immediately	$ 86.65
41	134716800		Nut,3/8-16				$ 3.31
42	134696110		Bulkhead,panel ,front				$ 239.93
43	134559300		Bracket,door Glass				$ 11.34
44	137553402		Gasket,door Seal ,gray   (Replaces: 134720902)				$ 96.80
45	134611800		Glass,inner Door		Appelez-nous	-
46	134580300		Gasket,door Glass ,inner				$ 73.90
47	134683941		Panel,inner Door ,gray				$ 149.68
48	134558465		Panel,outer Door ,black		Appelez-nous	-
49	5303207102		Door Strike   (Replaces: 5303211430)			Immediately	$ 22.05
50	131303300		Screw,pan Head ,10-16ab X 0.500 ,locking		Appelez-nous	-
52	131243700		Screw,indt Pan Head ,8-18ab X 0.375   (Replaces: 134529600)				$ 3.73
53	134558600		Ring,door Transition		Appelez-nous	-
56	137577700		Glass,outer Door Lens   (Replaces: 134550600)				$ 249.82
60	134430300		Screw,indt Pan Head ,10-14 X 0.625 ,quadrex			Immediately	$ 16.54
62	134680765		Plug,hinge Cutout ,black		Appelez-nous	-
66	137577200		T-plug,hinge Hole   (Replaces: 134680820)				$ 6.43
68	134742002		Plug,hinge Hole ,grey				$ 17.33
70	134417502		Plug,rectangular				$ 19.74
40A	134716700		Washer,flat				$ 2.36
F26	134813661		Switch,door ,rectangle ,gray				$ 18.76
F58	131843500		Lamp Assy,drum Light ,w/mtg Bracket				$ 81.11
FNI	131843500		Lamp   (Replaces: 131862800)				$ 81.11
NI	134910300		Harness,wire ,door Switch				$ 21.16
NI	5308027429		Adhesive, High Temp			Immediately	$ 66.94
NI	134716200		Retainer,roller Wheel ,assembly				$ 3.47
NI	134554500		Pad,outer Door				$ 14.60
