SELECT A DIAGRAM

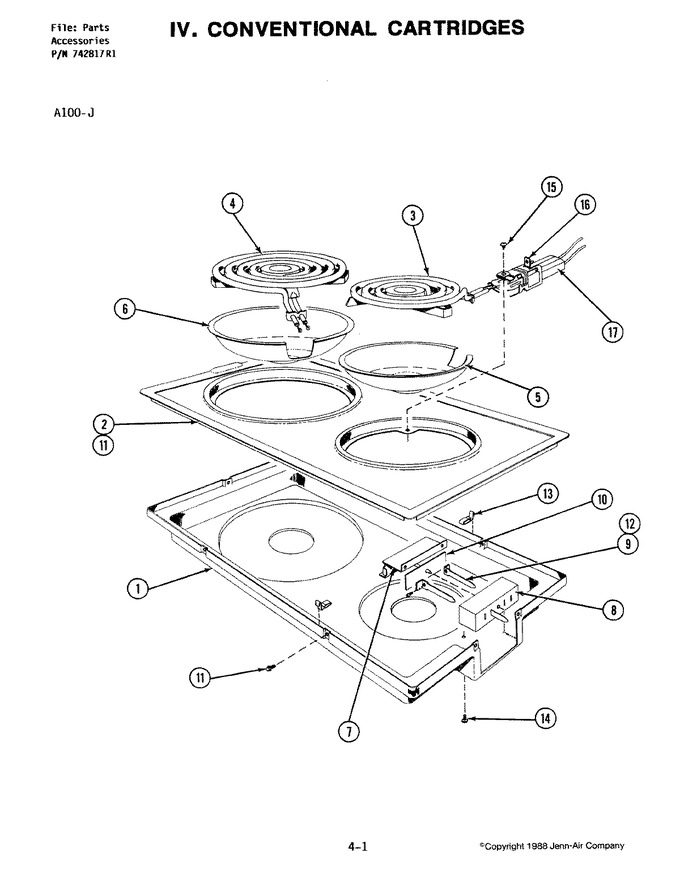

01 - Conventional Cartridge
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 703347 | Pan, Cartridge (blk) | 1 |
|
- | ||||
| 2 | 704952 | Top, Cartridge (alm) | 1 |
|
- | ||||
| 3 | WP3191455 | Element, Conv. (6`` 208v) (Replaces: Y704115) | 1 |
|
$ 156.16 | ||||
| 3 | WPY04100165 | Element, Conv.(6`` 240v) (Replaces: 715927) | 10 |
|
Immediately | $ 56.24 | |||
| 4 | WPW10259865 | Element, Conv. (9`` 208v) (Replaces: Y704114) | 1 |
|
Immediately | $ 117.69 | |||
| 4 | WPY04100166 | Element, Conv.(8`` 240v) (Replaces: 715928) | 10 |
|
Immediately | $ 52.46 | |||
| 5 | 715877 | Pan, Drip (6``) | 1 |
|
Immediately | $ 21.54 | |||
| 6 | 715878 | Pan, Drip (8``) | 1 |
|
Immediately | $ 23.51 | |||
| 7 | Y700648 | Bracket, Retaining Assy. | 1 |
|
- | ||||
| 8 | WPY708730 | Block, Terminal (Replaces: Y708730) | 1 |
|
$ 102.01 | ||||
| 9 | Y708572 | Spade, Contact | 1 |
|
Immediately | $ 13.23 | |||
| 10 | 708834 | Insulator, Contact Spade | 1 |
|
$ 15.74 | ||||
| 11 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 8.76 | |||
| 12 | WP488234 | Screw (Replaces: 708861) | 1 |
|
$ 7.08 | ||||
| 13 | Y708910 | Clip | 1 |
|
- | ||||
| 14 | WP59002061 | Screw (Replaces: Y707172) | 1 |
|
$ 8.18 | ||||
| 15 | WP74004005 | Screw (Replaces: Y703571) | 1 |
|
$ 8.66 | ||||
| 16 | Y712355 | Bracket, Receptacle | 1 |
|
- | ||||
| 17 | 12001676 | Rewire Kit (Replaces: 700125) | 1 |
|
Immediately | $ 31.61 | |||
| NI | CRU100UA | Manual, Use & Care | 10 |
|
- |
