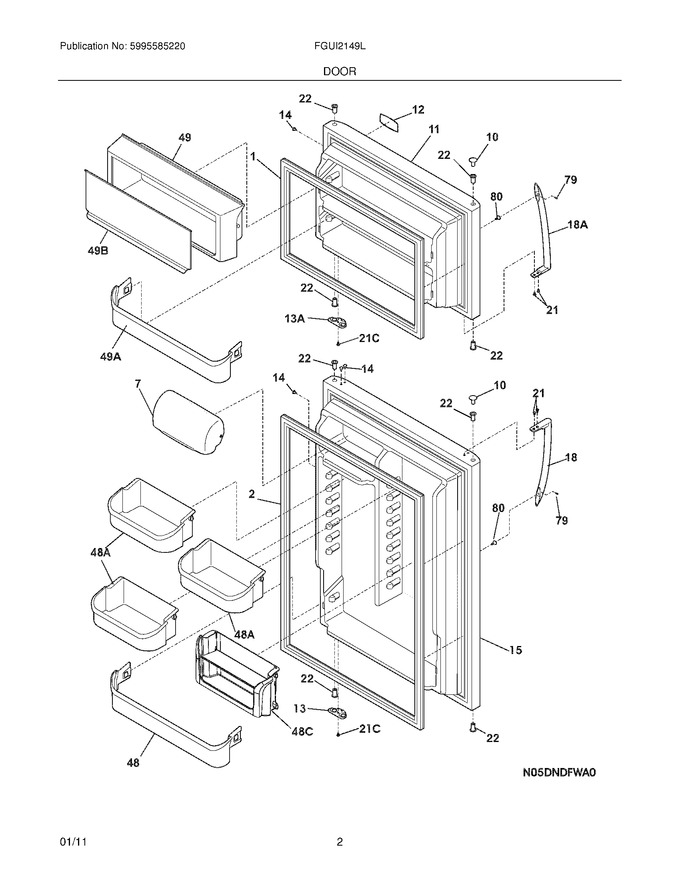

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241872505		Gasket-frzr Door,white ,magnetic				$ 219.04
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 89.78
11	240450393		Door-frzr,stainless ,complete Assy				$ 304.58
12	242015201		Label-nameplate			Immediately	$ 7.67
13	240312422		Door Stop,black ,refr   (Replaces: 240312405)				$ 16.85
15	241837284		Door-refr,stainless ,complete Assy				$ 506.10
18	241977901		Handle-door,stainless ,refr-rh/frzr-lh   (Replaces: 241977501)				$ 374.06
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 21.37
22	5304507147		Bearing-hinge,black   (Replaces: 240527102)			Immediately	$ 8.43
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 58.19
49	242088601		Bin-door,frzr-upper				$ 106.68
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 36.67
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 20.67
13A	240312415		Door Stop,black ,frzr				$ 23.63
18A	241977901		Handle-door,stainless ,refr-lh/frzr-rh   (Replaces: 241977502)				$ 374.06
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 15.75
48A	241808201		Bin-door,gallon			Immediately	$ 88.86
48C	242088303		Bin-door,left Over				$ 57.18
49A	240495804		Bin-door,pseudo ,frzr			Immediately	$ 48.10
49B	242088801		Cover,soft Frz Bin				$ 113.40
F2	242193213		Gasket,refr Door Seal ,white ,magnetic   (Replaces: 241872513)			Immediately	$ 211.36
NI	241701901		Screw Driver		Appelez-nous	-
NI	241601001		Wrench,allen		Appelez-nous	-
