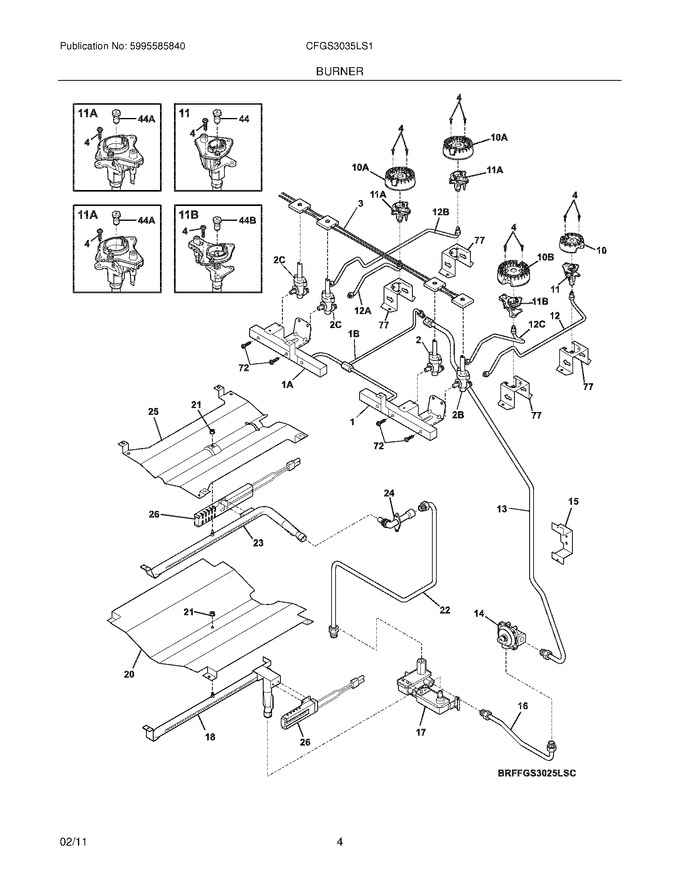

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Burner
07 - Body
09 - Top/drawer
11 - Door
12 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318305600 | Manifold,right Side |
|
$ 144.11 | |||||
| 4 | 316240600 | Screw,hex Wash ,6-32 X .485 (Replaces: 5304472956) |
|
Immediately | $ 13.48 | ||||
| 15 | 318262810 | Bracket,regulator |
|
- | |||||
| 20 | 318290400 | Baffle,bake Burner |
|
$ 120.65 | |||||
| 21 | 154079601 | Nut,keps ,10-24 (Replaces: 3201885) |
|
$ 0.46 | |||||
| 25 | 316401301 | Baffle,broil Burner |
|
$ 173.57 | |||||
| 72 | 316215600 | Screw,valve Mtg. ,1/4 - 20 |
|
Immediately | $ 15.75 | ||||
| 77 | 318920300 | Bracket,burner Mtg ,(4) |
|
- | |||||
| 1A | 318305601 | Manifold,left Side |
|
$ 105.42 | |||||
| F10 | 316438200 | Burner,sealed ,5k |
|
Immediately | $ 63.00 | ||||
| F10A | 316558300 | Burner,sealed ,9.5k |
|
Immediately | $ 58.28 | ||||
| F10B | 316438600 | Burner,sealed ,14k |
|
$ 88.67 | |||||
| F11 | 316540800 | Ignitor/orifice Assy.,top Burner ,5k ,w/holder |
|
$ 12.44 | |||||
| F11A | 316540700 | Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder |
|
$ 12.39 | |||||
| F11B | 316543206 | Ignitor/orifice Assy.,top Burner ,14k ,w/holder |
|
$ 163.01 | |||||
| F12 | 318916801 | Tube,burner Supply ,rh Rear |
|
$ 44.10 | |||||
| F12A | 318916501 | Tube,burner Supply ,lh Front |
|
- | |||||
| F12B | 318916601 | Tube,burner Supply ,lh Rear |
|
- | |||||
| F12C | 318916701 | Tube,burner Supply ,rh Front |
|
$ 52.25 | |||||
| F13 | 318305110 | Tube,regulator ,to Manifold |
|
$ 105.84 | |||||
| F14 | 5304521339 | Regulator,pressure (Replaces: 316416700) |
|
Immediately | $ 117.13 | ||||
| F16 | 318289500 | Tube,regulator Valve |
|
$ 75.84 | |||||
| F17 | 316404901 | Valve,safety |
|
$ 406.35 | |||||
| F18 | 318292200 | Burner,oven ,18000 |
|
$ 109.35 | |||||
| F1B | 318305410 | Tube,manifold ,3/8 ,interconnect |
|
$ 326.81 | |||||
| F2 | 318233930 | Valve,top Burner ,14000 Btu |
|
$ 118.32 | |||||
| F22 | 318305203 | Tube,broil Supply |
|
- | |||||
| F23 | 318292300 | Burner,broil ,14000 |
|
$ 99.75 | |||||
| F24 | 316409703 | Elbow,mixer |
|
$ 138.70 | |||||
| F26 | 5303935066 | Ignitor,oven Burner (Replaces: 318177710) |
|
Immediately | $ 66.20 | ||||
| F2B | 318233900 | Valve,top Burner ,5000 Btu |
|
$ 179.48 | |||||
| F2C | 318233910 | Valve,top Burner ,9500 Btu |
|
$ 132.56 | |||||
| F3 | 318232668 | Wiring Harness,w/igntr Switch |
|
$ 90.83 | |||||
| F44 | 316527504 | Orifice,top Burner ,5k |
|
$ 25.20 | |||||
| F44A | 316527500 | Orifice,top Burner ,9.5k |
|
$ 23.78 | |||||
| F44B | 316527513 | Orifice,top Burner ,14k |
|
$ 24.50 | |||||
| FNI | 318268600 | Harness,wiring ,valve |
|
$ 62.58 | |||||
| FNI | GRLP4 | Conversion Kit,lp (Replaces: 318565404) |
|
Immediately | $ 63.00 | ||||
| FNI | 318199776 | Wiring Harness,ignitor |
|
$ 60.67 | |||||
| NI | 5303323137 | Screw,8-32 X 1/4 (Replaces: 5303305528) |
|
$ 13.20 | |||||
| NI | 316519700 | Screw,no.8-18 X 3/8 ,(10) (Replaces: 5304454881) |
|
$ 11.13 | |||||
| NI | 5303323129 | Screw,8 X 0.750 |
|
- | |||||
| NI | 5303300195 | Screw,10-32 X 0.375 ,(2) |
|
- | |||||
| NI | 134178901 | Screw,8-18 X 0.500 (Replaces: 5303211311) |
|
$ 16.54 | |||||
| NI | 5304463705 | Screw,8-18 X 1/2 ,(4) |
|
- |
